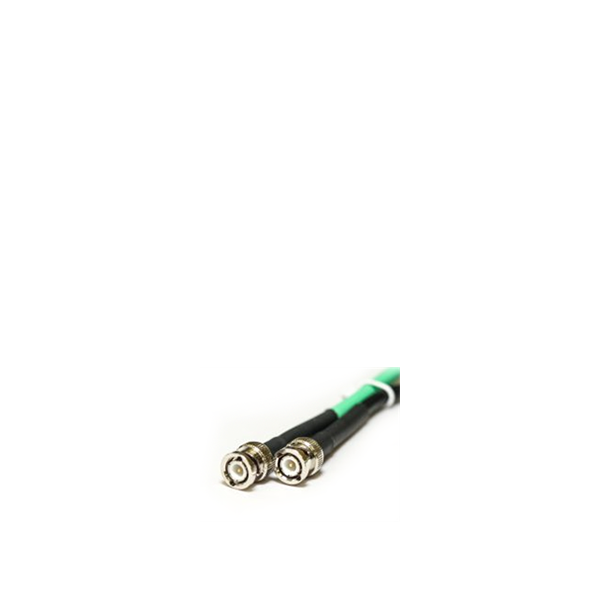

ABR Industries RG8x Low Loss Coax Cables with Soldered BNC Connectors

RG8X size: .240″ Low Loss.

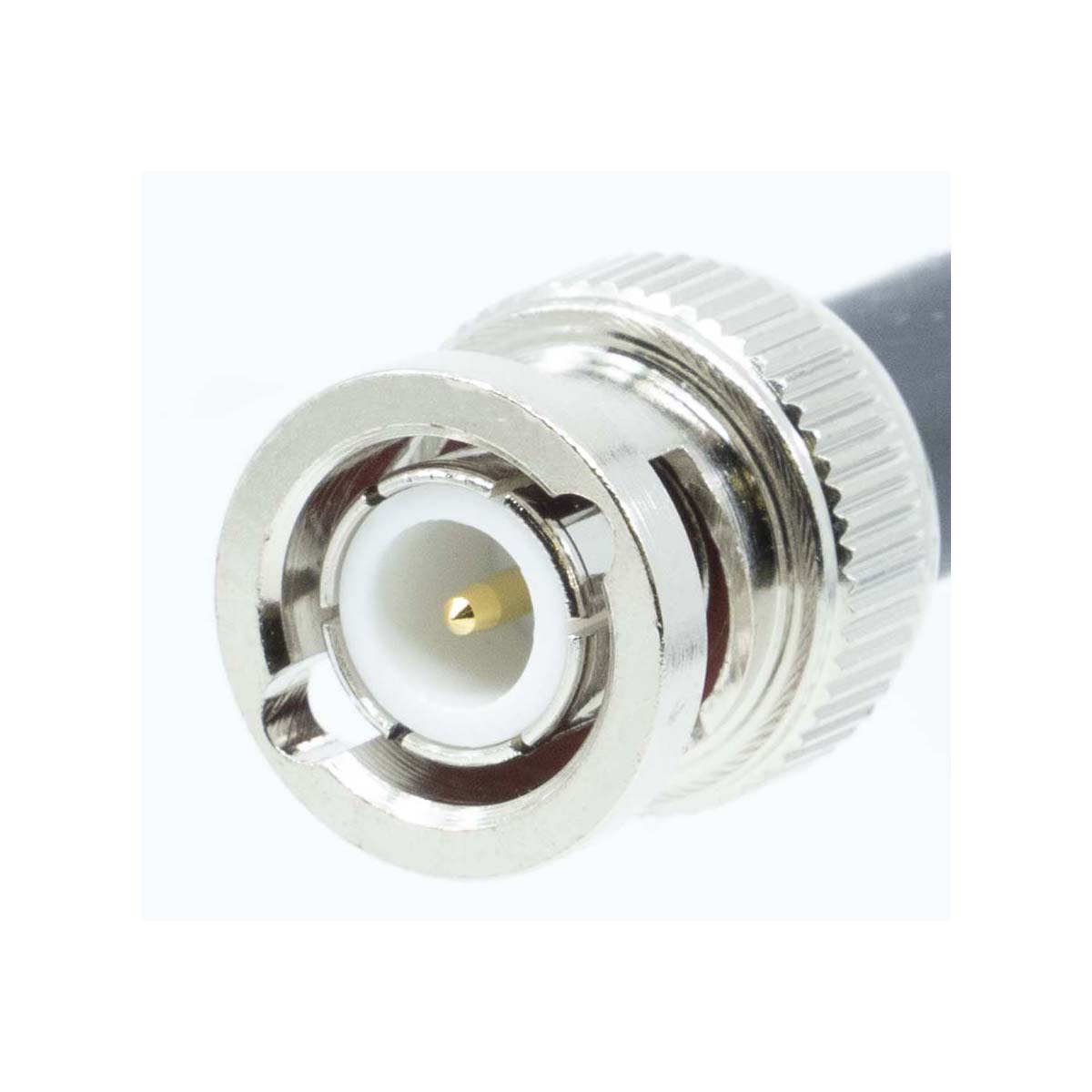

Best Grade BNC connectors on Each End.
Weather-Proof Heat Shrink Tubing (HST) Each End.

Cable Features:

• 30% lower loss than the standard RG8x.
• Flexible Stranded Center Conductor.
• 96% TC Braid + bonded 100% Foil Shield.
• Shield Effectiveness <90dB. That means that you get virtually no noise interference.
• Very Flexible, Light Weight, and Smaller than RG8 sizes.
• Perfect for Amateur Radio: Mobile, Dipoles, & Portable, Condos, and Apartments applications.
• Non-Contaminating-UV Resistant-Direct Burial-Black Jacket.
• Gas Injected Foam Polyethylene Dielectric VP: 84%
  • our Closed-Cell-GIFP dielectric is a major advantage over standard RG8x; those products use a chemical foam dielectric; which causes higher losses, will-not stand-up to heat, and that will cause the center conductor to migrate into the braid, and short-out.

• Voltage DC: 1500Volts RMS: 5000
  • Maximum permissible D.C. voltage level is conservatively 3 times the A.C. level.
• PP kW: 5.6
• RoHS Compliant.
• Overall Diameter:.242″
• Weight 4#/100ft
• All cable are fully tested. Hi-Pot® and continuity.

Nominal Attenuation-per 100ft/Power Rating(kW)/Efficiently%

• 0.9dB @ 10MHz/2.16kW/80% E.
• 1.6dB @ 30MHz/1.24kW/69% E.
• 2.1dB @ 50MHz/.96kW/62% E.
• 3.6dB @ 150MHz/0.55kW/43.5% E.
• 6.3dB @ 450MHz/0.31kW/23.2% E.
