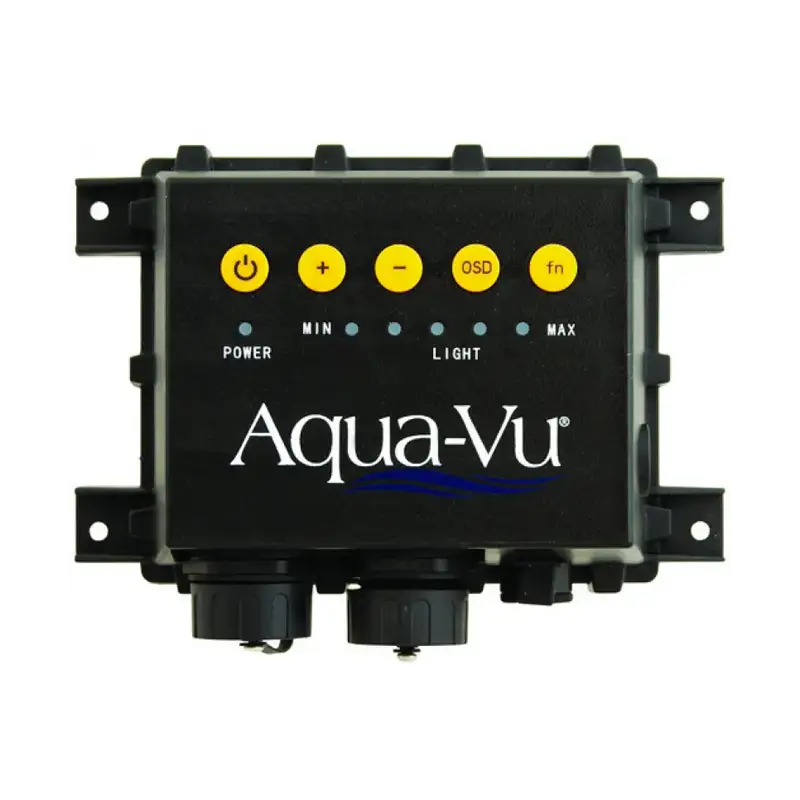

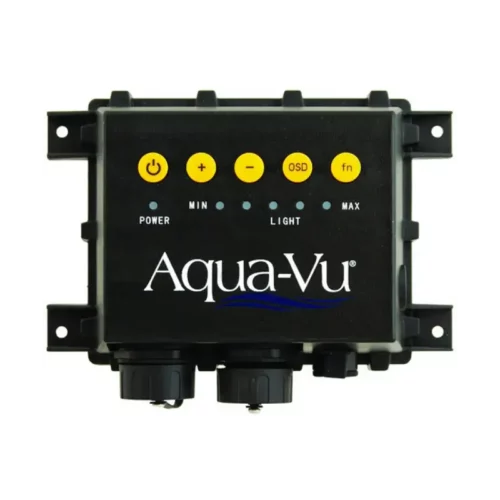

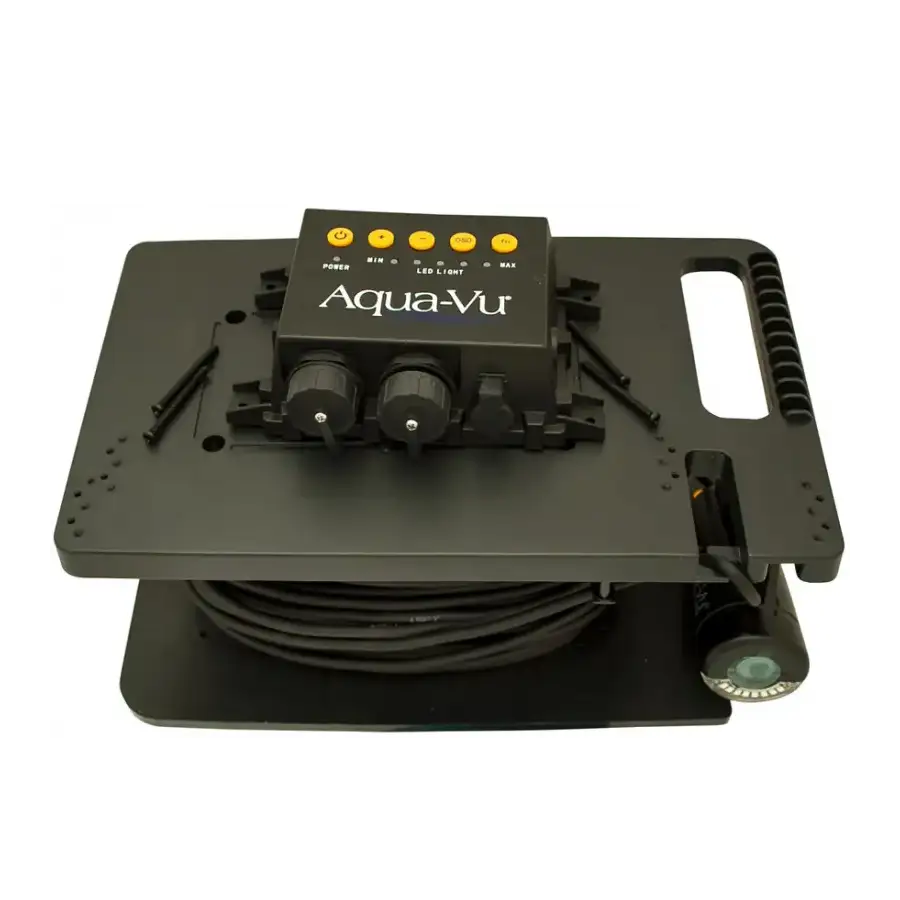

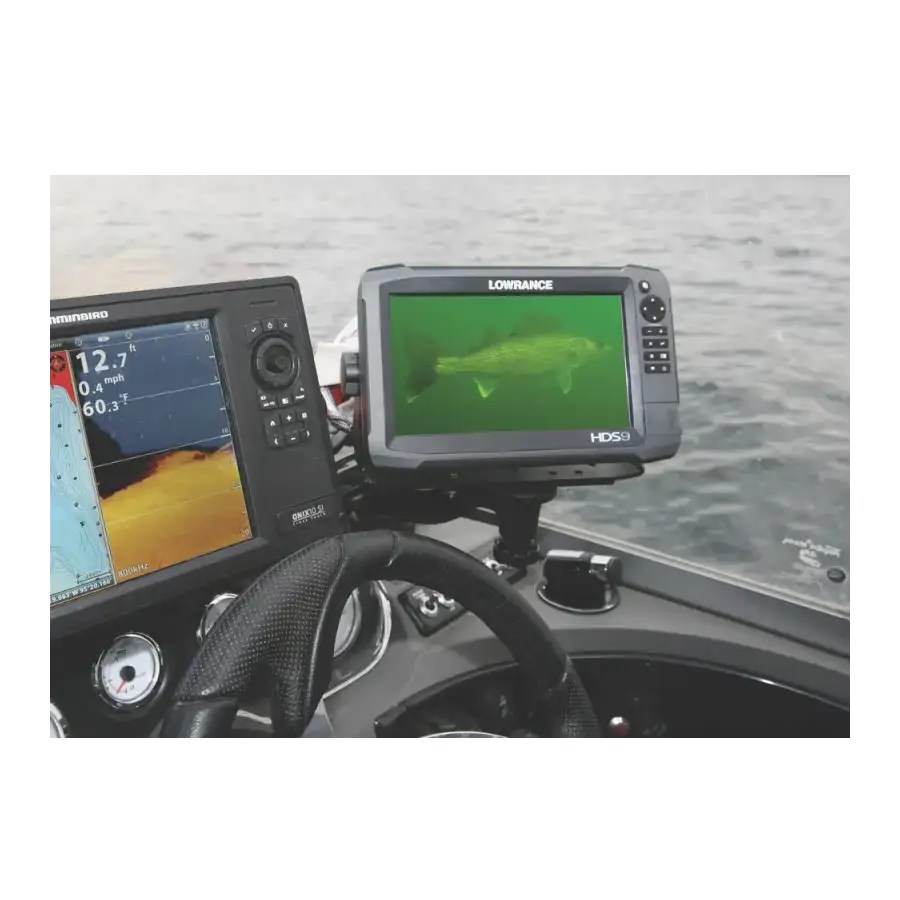

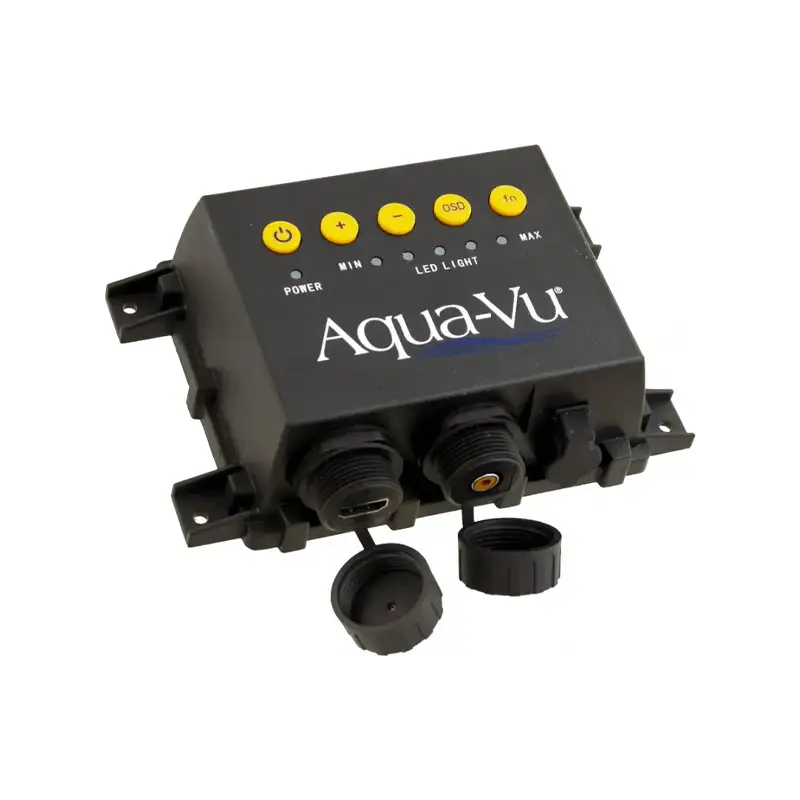

Add real time “live” viewing to any TV or HDMI-in enabled compatible sonar using an Aqua-VU Multi-Vu Pro Gen2 Underwater viewing system. The Aqua-Vu Multi-Vu Pro underwater camera system allows you to display an Aqua-Vu underwater camera on any screen, sonar, or TV, that accepts HDMI/RCA video input. Using an Aqua-Vu Mulit-Vu Pro will give you a “live” look underwater in real time. See what is happening, understand your electronics, and have more fun on the water!
| Weight | 10.88 lbs |
|---|---|
| Dimensions | 19 × 12 × 12 in |
| Brand | Aqua-Vu |
Specifications
MULTI-VU PRO GEN2 Specs
Included Essentials / Specifications:

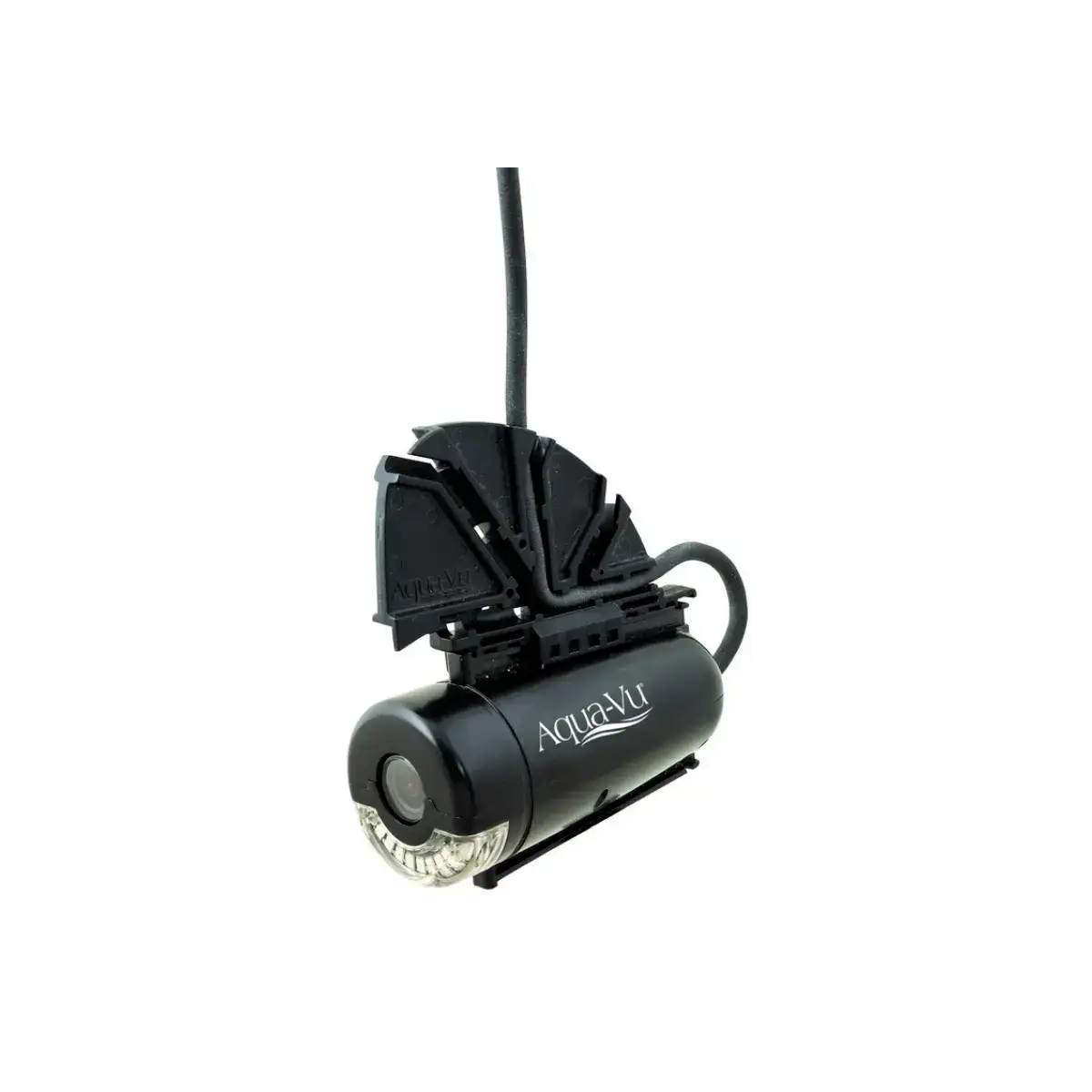

- Modular XD Camera Housing with Quick Attachment accessory system
- 1080p Color high-definition XD Camera
- Opti-RX Lab-Quality Lens for ultimate clarity
- 75-feet of cable (depth markings on cable)
- Super Low Light Vu™ Technology
- High Intensity, Adjustable IR Lighting

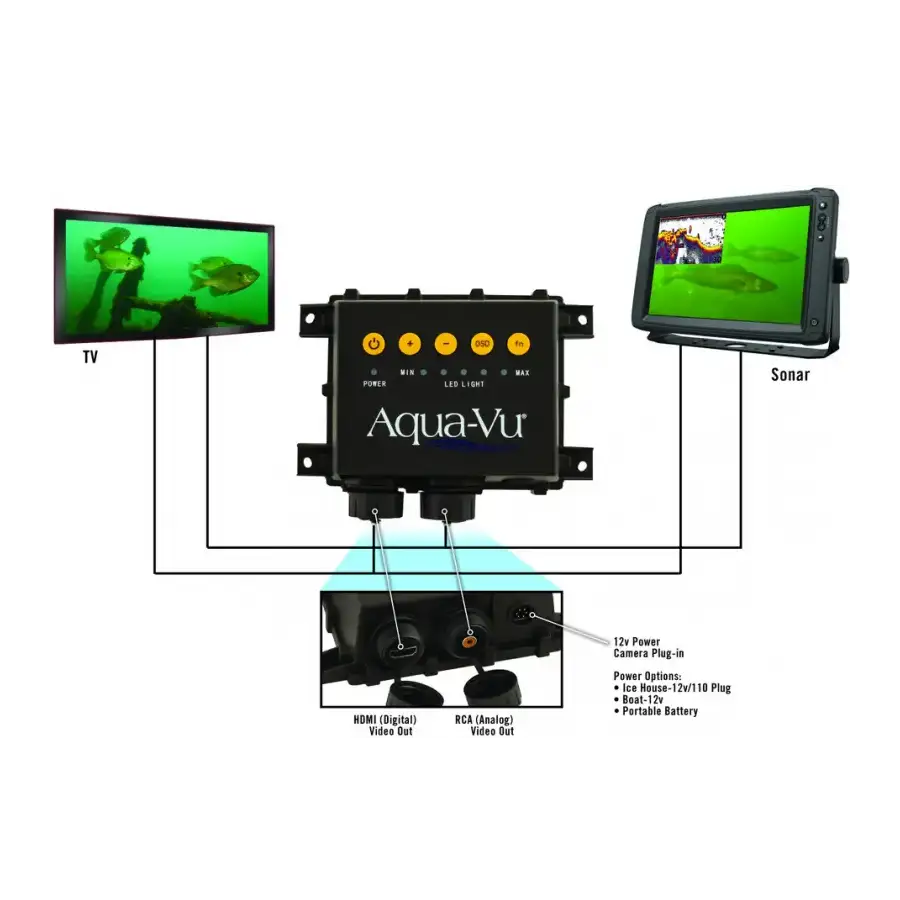

- HDMI & RCA Video Output (HDMI Cable Included)
- IP67 Waterproof
- 12v/110V Power
Frequently Asked Questions
IMPORTANT FAQ’s:
Is a TV or Sonar LCD included?
No, these items are pictured as reference only. A compatible TV or Sonar System is required for viewing and is sold separately.
How do I power the Multi-Vu Pro?
Included is a 110v power cable designed to connect the MV Pro directly to any 110v power system. Also included is a 12v Auxiliary adapter for additional power options.
Which cables are included?
Cables included in the box: 110v power cable, 12v auxiliary power adapter, and a waterproof HDMI Cable.
Sonar Compatibilty
SONAR COMPATIBILITY LIST
HUMMINBIRD
- Humminbird Apex (via HDMI)
LOWRANCE
- HDS Live (via HDMI)
- HDS Gen2 Touch Size 9,12
- HDS Gen3 Touch Size 7,9,12
- HDS Carbon
*Lowrance HDS Gen2/Gen3 & Carbon require a Video Adapter Cable 000-1101-001
SIMRAD
- Simrad NSS evo2 7,9,12,16
- Simrad NSO evo2 all series
GARMIN
- 942 – RCA with BNC adaptor
- 7400/7600 RCA with BNC adaptor
- 8400/ 8600 units HDMI and RCA with BNC adaptor
- GPSMAP 8700 Black Box – HDMI – Module to hook up to other touch screens
RAYMARINE
- a Series – a9 & a12 only
- c Series – c9 & c12
- eS Series – eS7, eS9 & eS12
- e Series – e7, e9, e12 & e16
- gS Series – gS95, gS126, gS165 & gS195
Product Guides & Documentation
