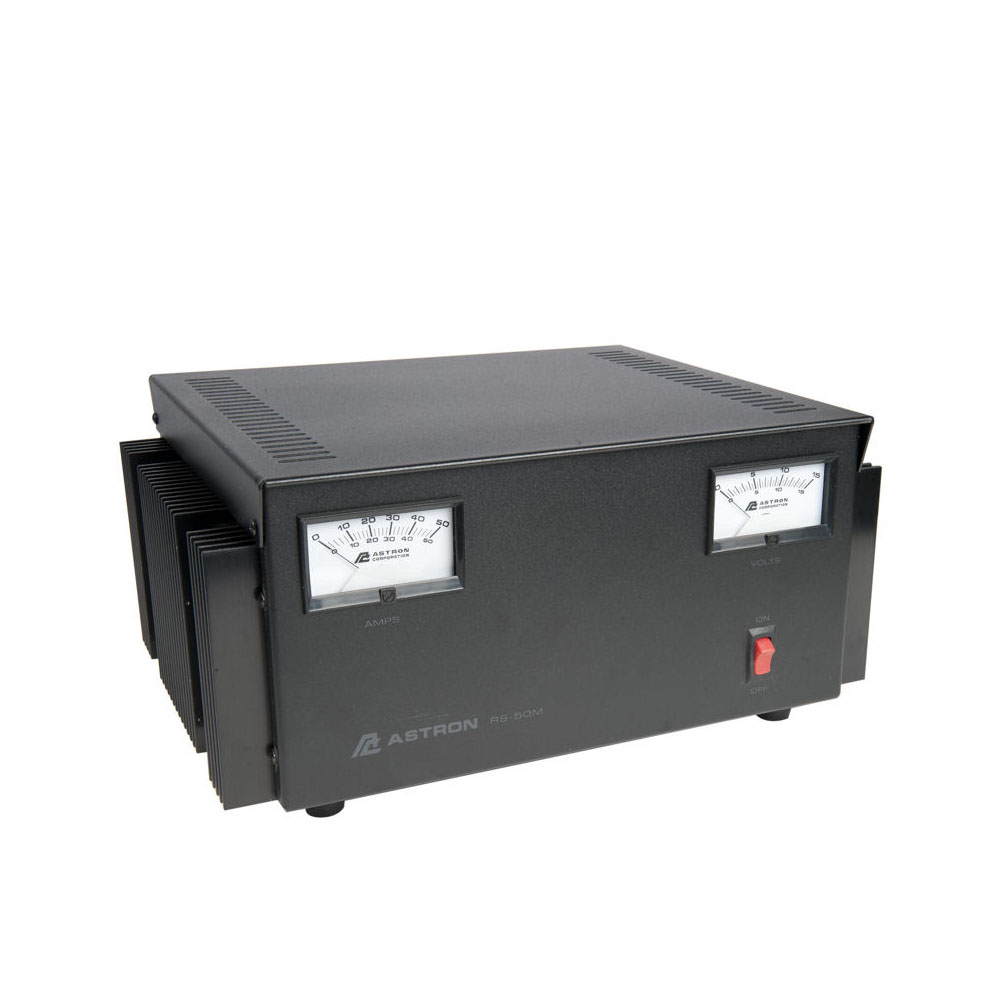

Astron RS-50M Power Supply

50 Amps, 37 continuous, 13.8 Vdc with meters

Special Features

• Solid state electronically regulated
• Fold-back current limiting protects power supply from excessive current & continuous shorted output.
• Crowbar overvoltage protection on all models except rs-3a, rs-4a, rs-5a, rs-4l, rs-5l
• Maintain regulation & low ripple at low line input voltage
• Heavy duty heat sink chassis mount fuse
• Three connector power cord
• One year warranty – made in usa

Performance Specifications

• Input voltage 105 – 125 vac
• Output voltage 13.8 vdc ± 0.05 volts (internally adjustable: 11-15 vdc)
• Ripple less than 5mv peak to peak (full load and low line)

Dimensions: 6″ x 13.75″ x 11″
Weight: 27lbs
