Compatible Garmin Chartplotters
- ECHOMAP UHD 7/9 Series
- ECHOMAP UHD2 6/7/9 Series
- ECHOMAP Ultra Series
- GPSMAP 10×2/12×2 Series
- GPSMAP 10×2/12×2 Plus Series
- GPSMAP 7×3/9×3/12×3 Series
- GPSMAP 84xx/GPSMAP 86xx Series

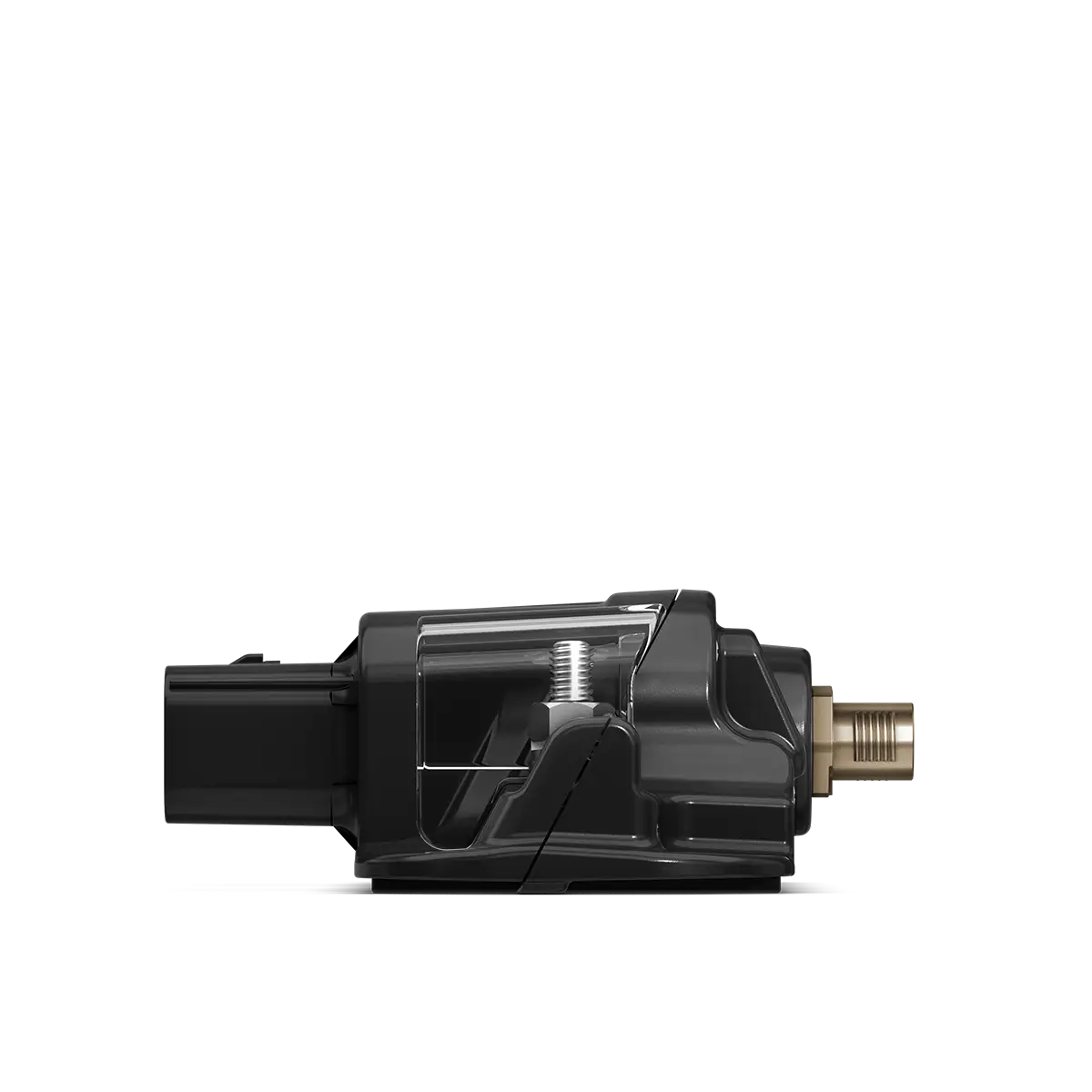

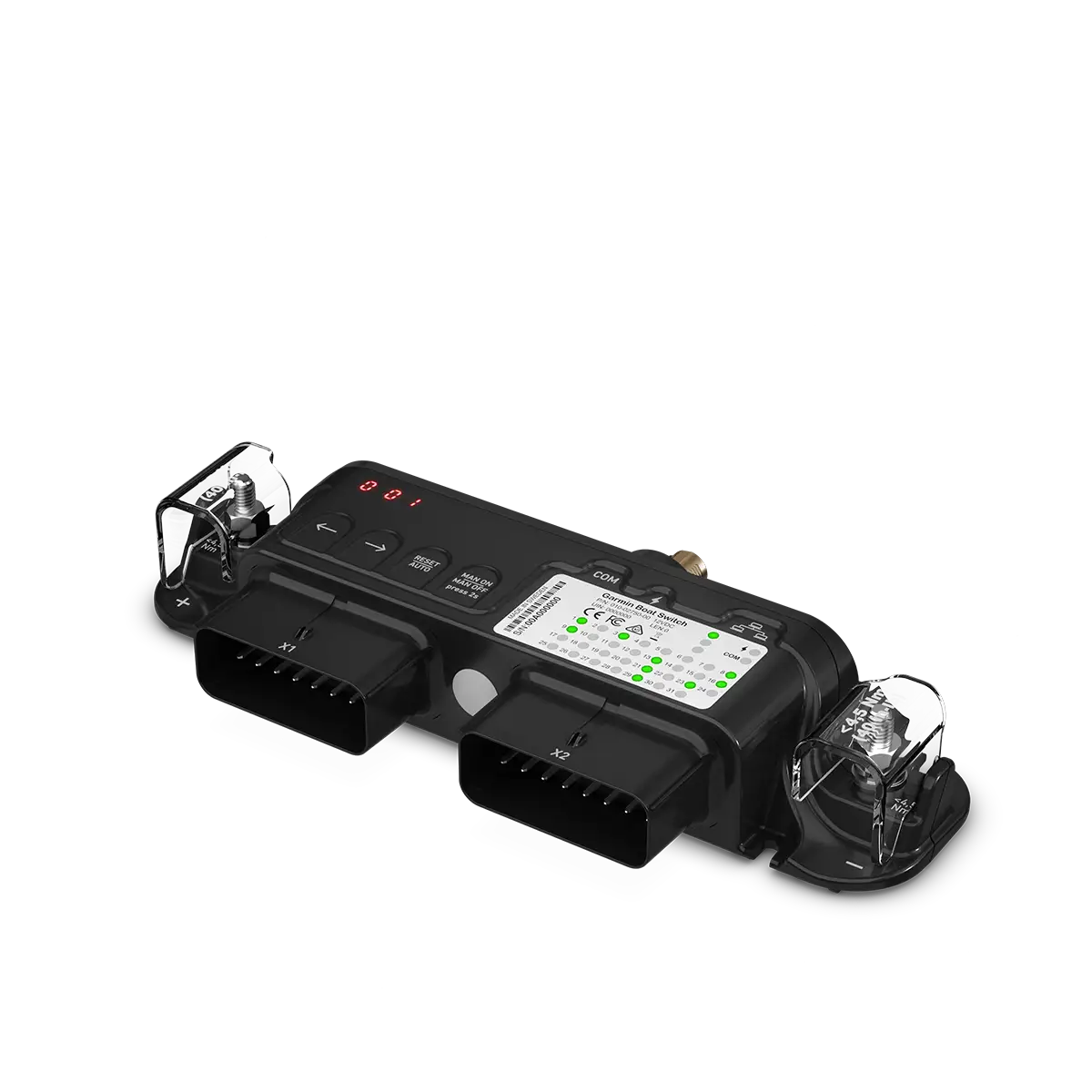

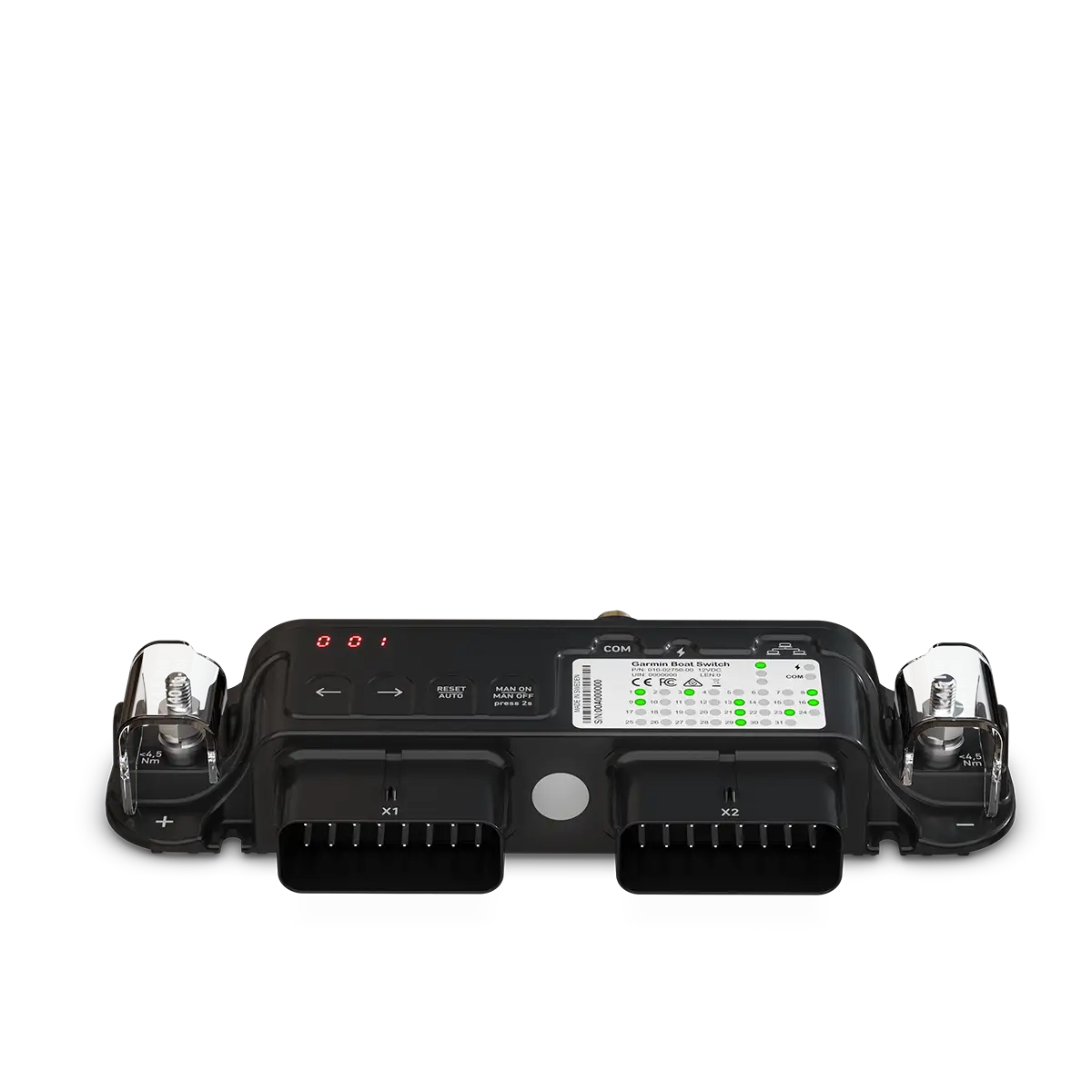

Garmin Boat Switch Specs
General |
|
| Dimensions(WxHxD) (unit only) | 9.1″ x 4.2″ x 1.5″ (230 x 106 x 38 mm) |
| Weight (unit only) | 14.1 oz (400 g) |
| Ambient temperature | -20° C to +55° C |
| Enclosure water rating | IP65 |
| Communication | CAN-bus NMEA 2000® network, LEN-0 |
Output |
|
| High side | 13 ch 10A, 7 ch 5A |
Digital Input |
|
| Ground contact switch input | 15 |
| Bilge pump monitor | 2 |
Analog Input |
|
| Volt | 3 @ 0-16 V +/-1% |
| Resistance | 2 @ 0-1500 ohm +/- 5% |
Power Supply |
|
| Maximum current | 50A |
| Power off current consumption | 60mA |
| Supply voltage (12V) | 9-16VDC |
Connector |
|
| NMEA 2000® | Micro 5-pin M12 male |
| Channels | Molex MX150 L 16 circuits |
| Power terminal | M6 bolt |
In the Box:
- Garmin Boat Switch
- Garmin Boat Switch Harness X1 for channels 1-16
- Garmin Boat Switch Harness X2 for channels 17-32
- Installation instructions
