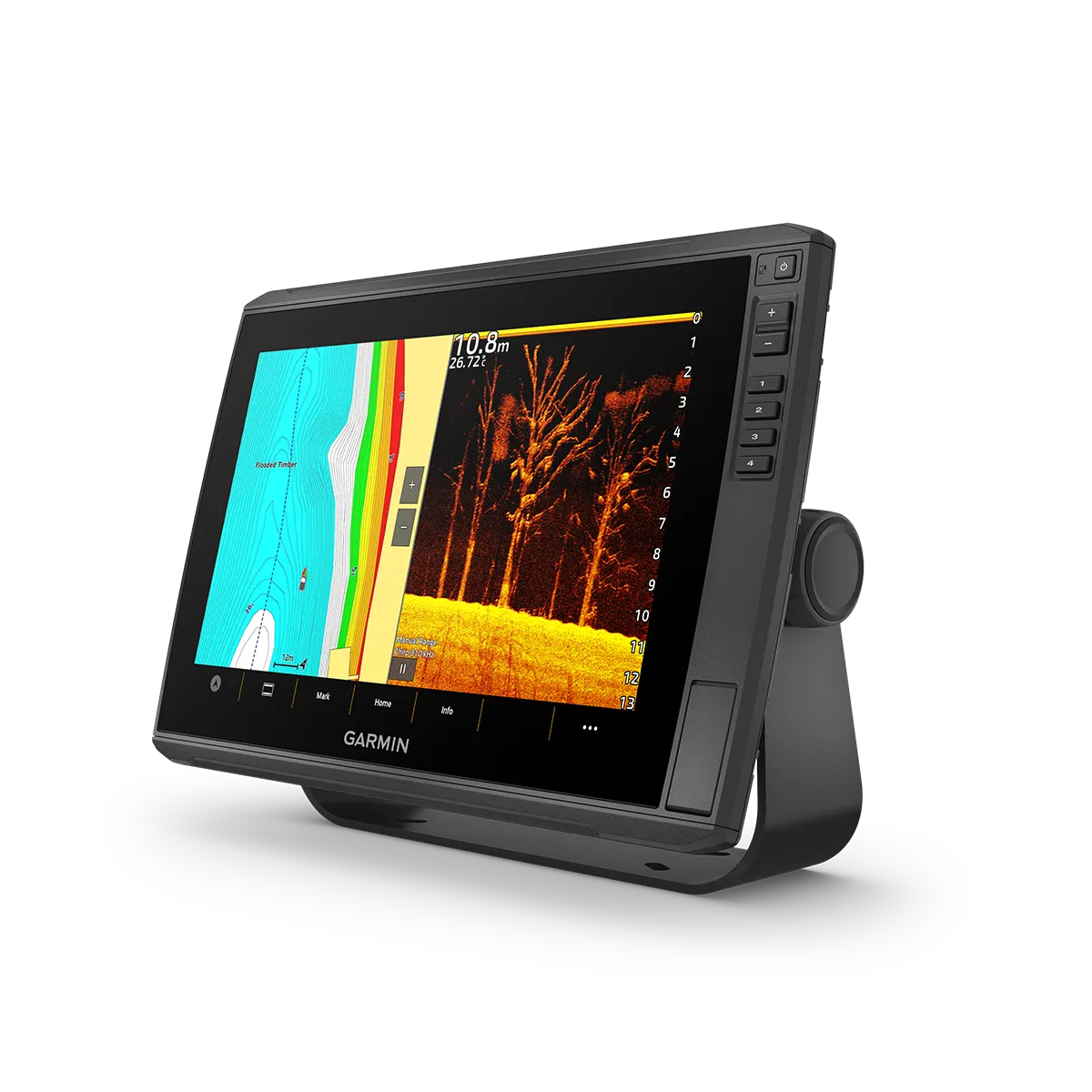

Garmin ECHOMAP Ultra 2 126sv 12″ Chartplotters
$3,639.99 – $4,189.99

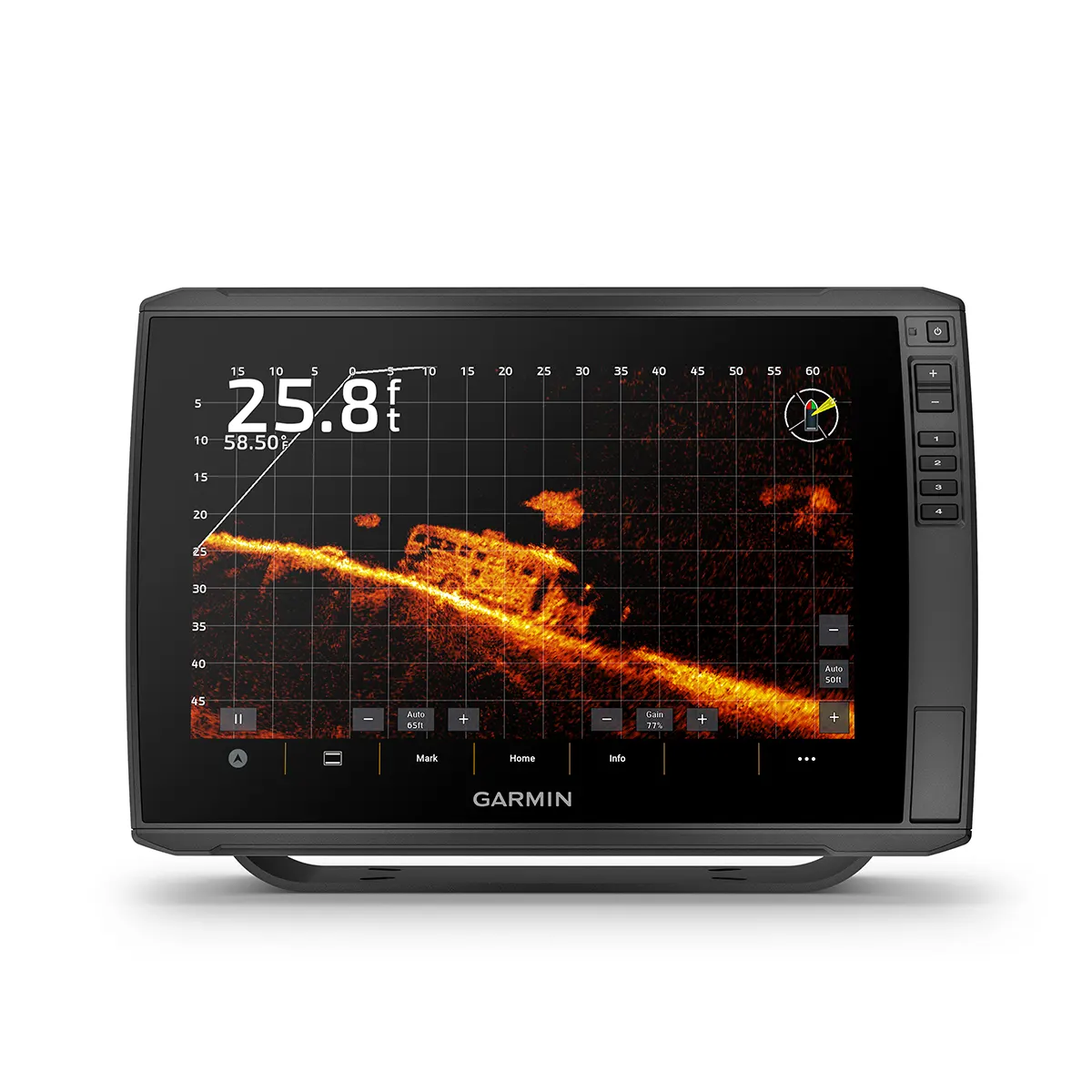

With big, crisp, sunlight-readable 12″ touchscreen displays, these versatile chartplotters put a world of fishfinding capability at your fingertips. They come with built-in Garmin Navionics+ mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.
ALL THE TOOLS YOU NEED FOR SUCCESSFUL FISHING
With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fishfinding capability at your fingertips. They come with built-in Garmin Navionics+ mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.
LIVESCOPE SONAR SUPPORT
The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).
BUILT-IN UHD SONAR

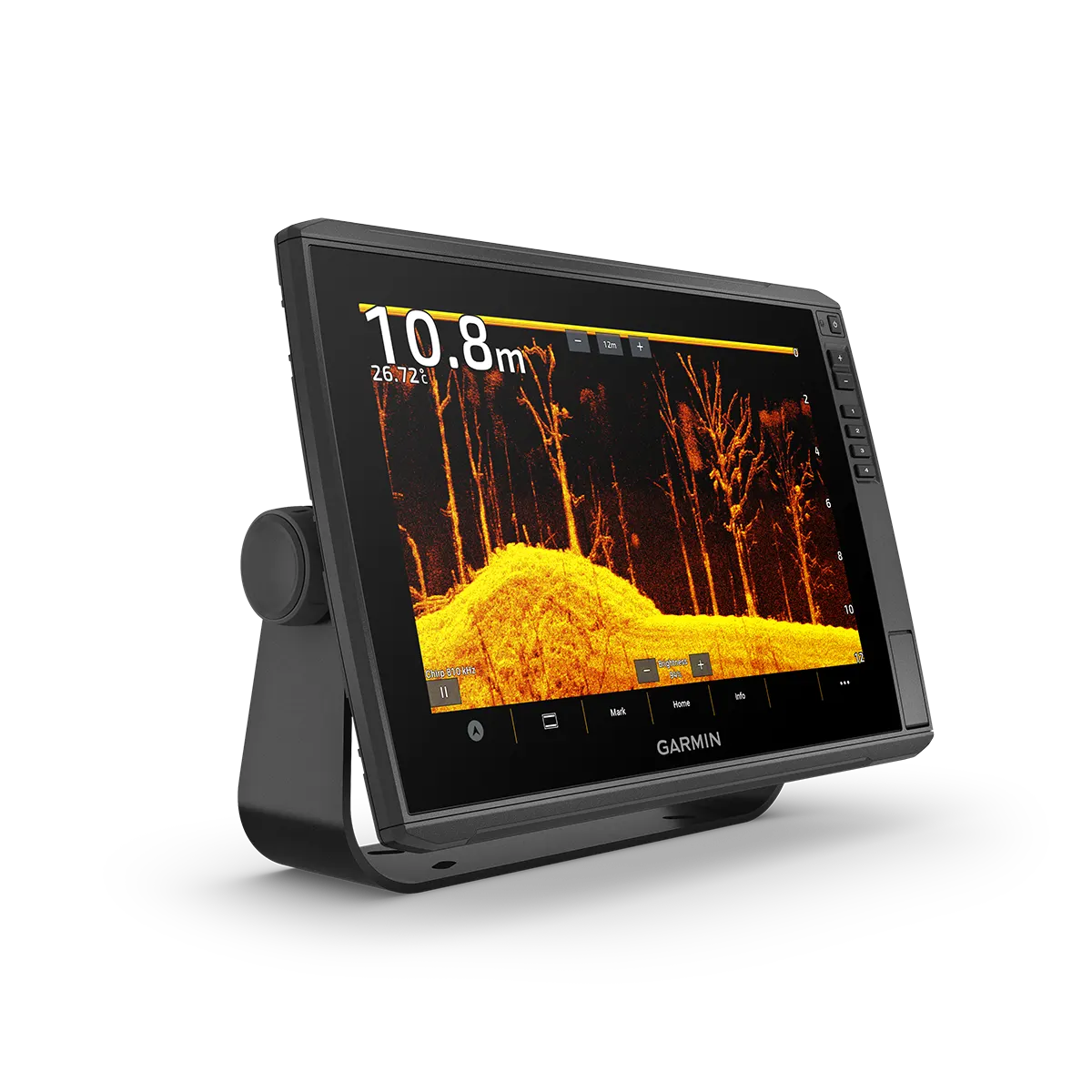

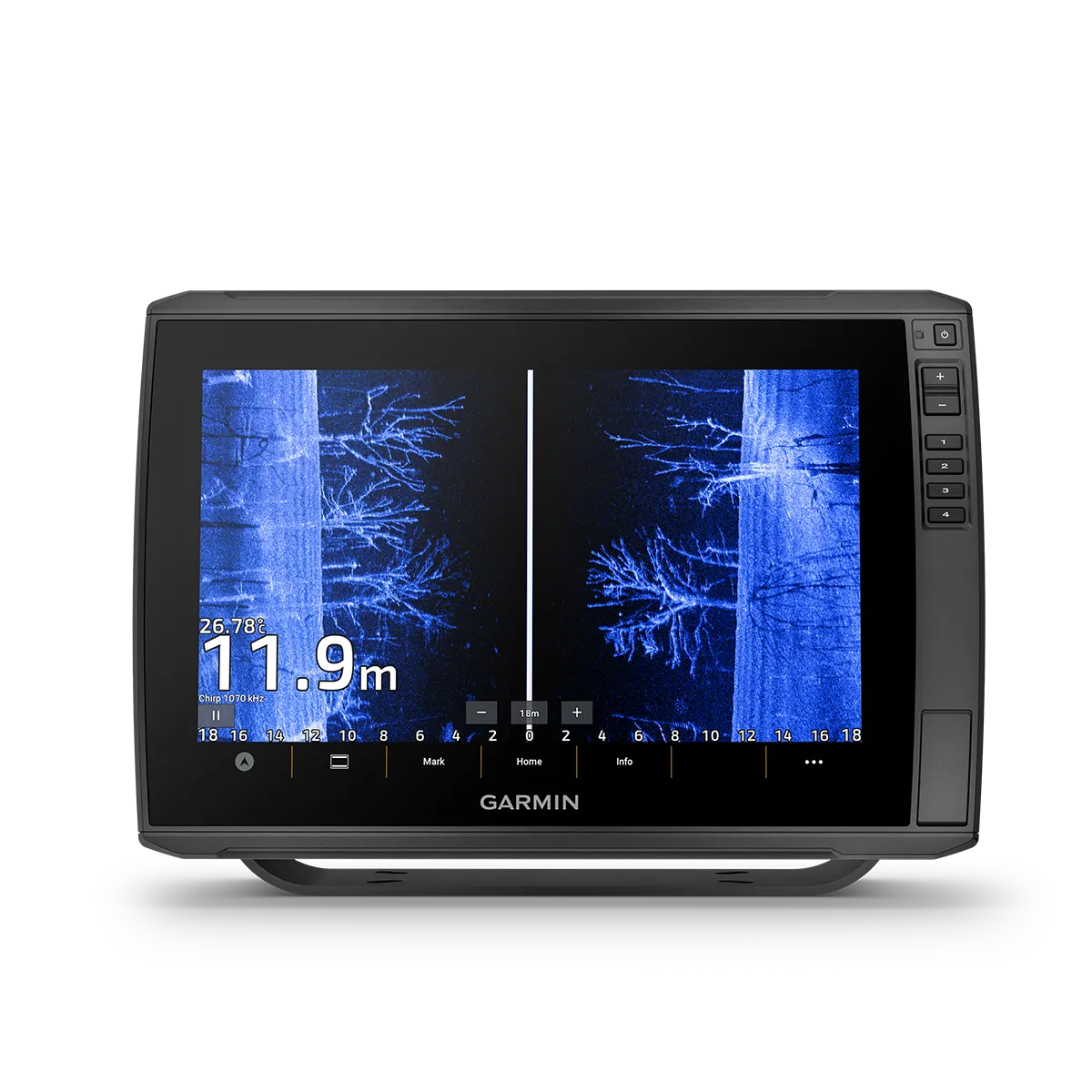

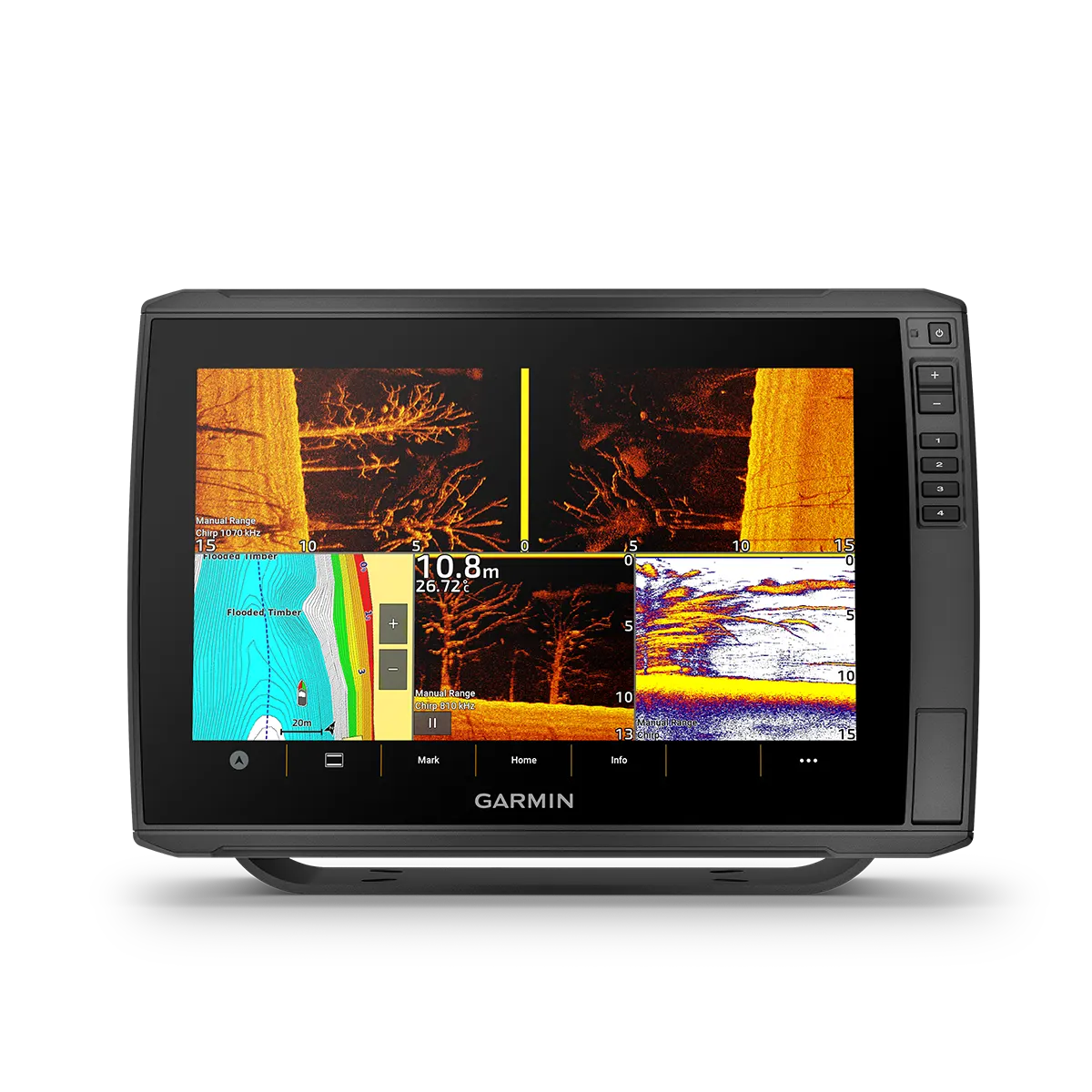

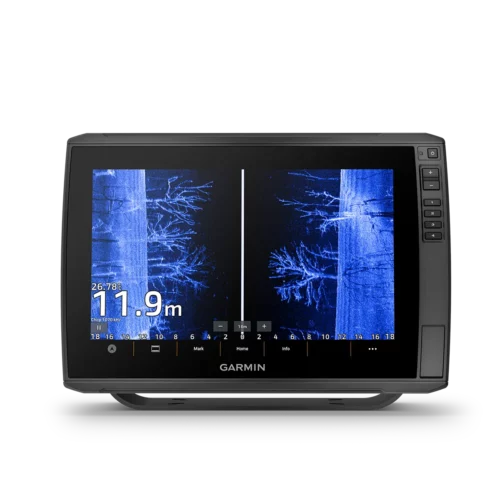

Select models are bundled with a GT56 transducer which provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü™ and SideVü™ scanning sonars for photo-like images of what’s beneath the surface.
VIVID COLOR PALETTES
High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.

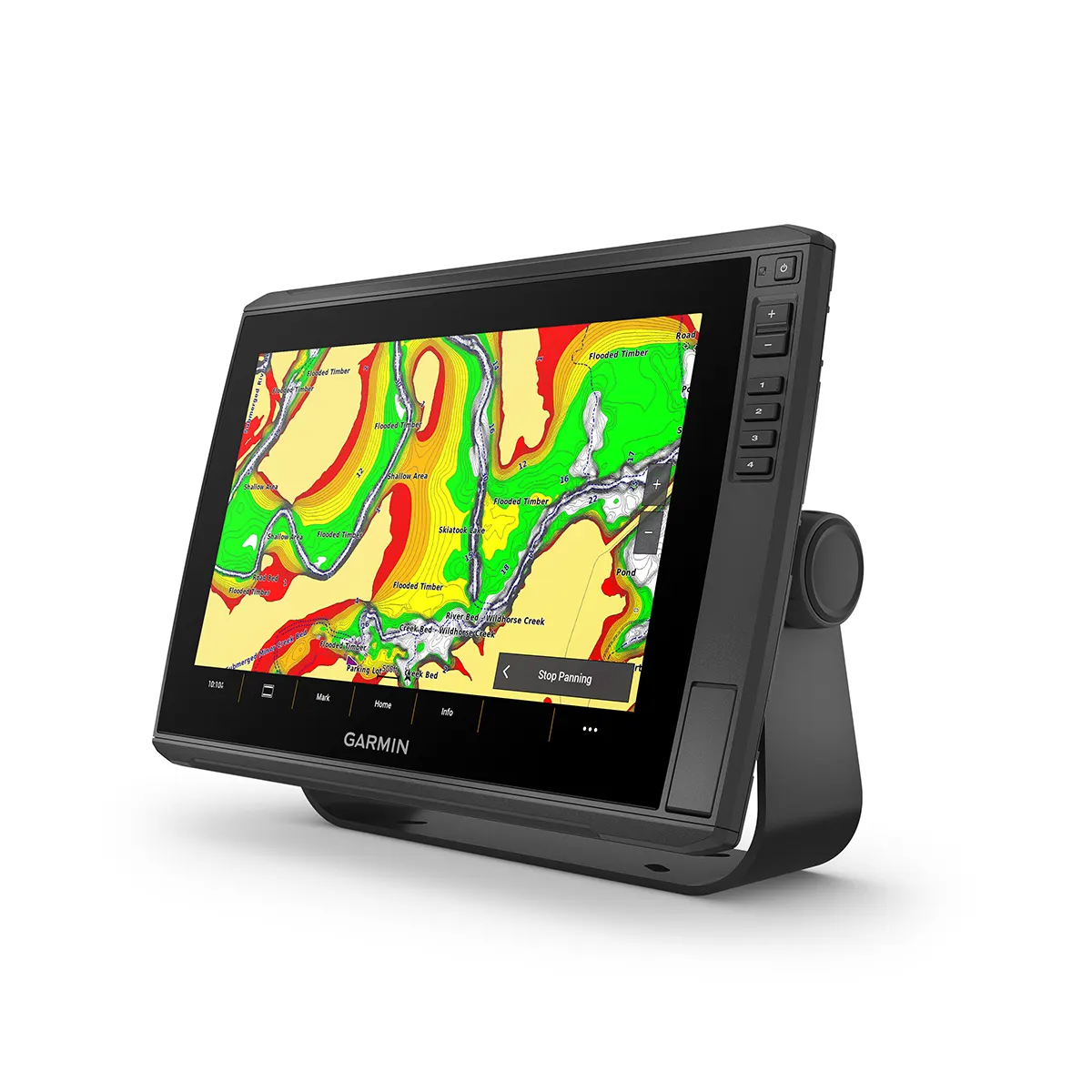

PRELOADED CHARTS
Experience unparalleled coverage and detail. These units come with built-in Garmin Navionics+ mapping, which includes a 1-year subscription for daily updates, depth range shading and more.
PREMIUM MAP UPGRADES
Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics Vision+™ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery and more.
WIRELESS NETWORKING
If you have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on your boat, you can wirelessly share information — such as sonar³, waypoints and routes — with them.
MULTI-BAND GPS
Get improved position accuracy with multi-band GPS
NMEA 2000® NETWORK COMPATIBILITY
Connect to heading sensors, autopilots, Fusion-Link™ audio systems and more.
ACTIVECAPTAIN® APP
Pair with the free smart-device app for software updates, screen recording, Garmin Quickdraw™ Community data and more4.
FORCE® TROLLING MOTOR
Wirelessly connect to your Force trolling motor to navigate to waypoints, draw and follow routes, and more.
TAKE IT WITH YOU

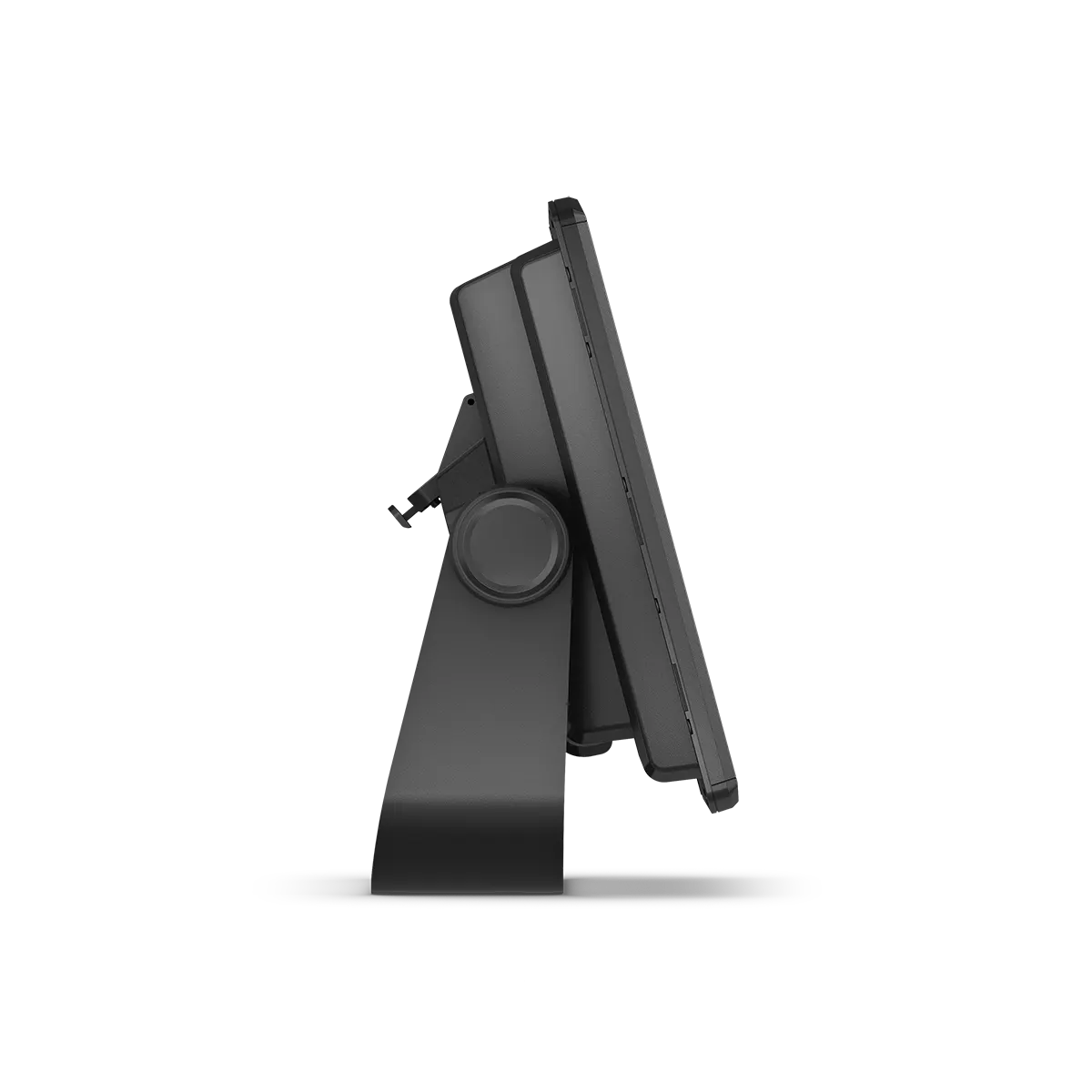

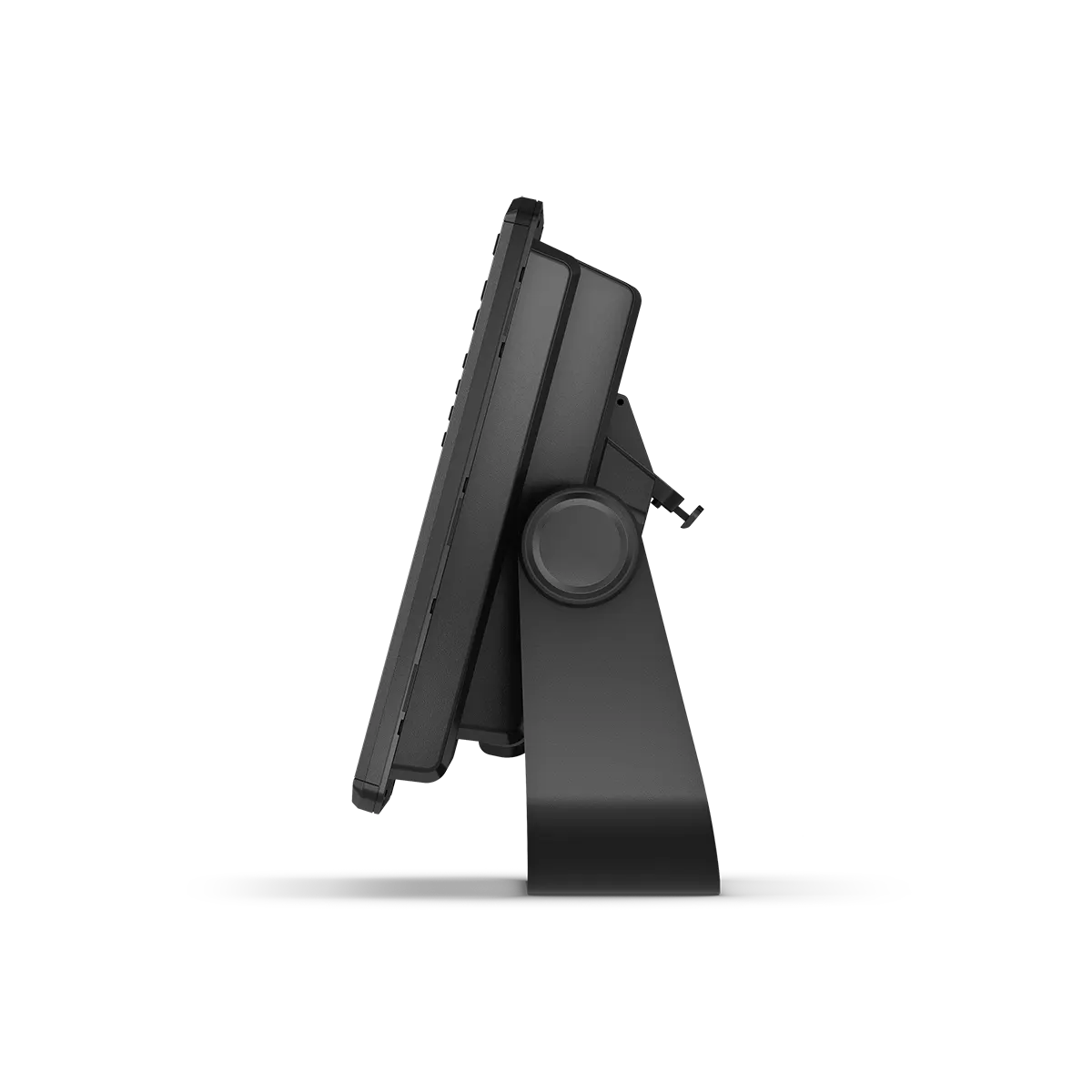

The quick-disconnect bail mount lets you quickly install and remove your unit.
¹LiveScope™ System sonar transducer sold separately
²Via one-to-one unit wireless connection only
³LiveScope sonar cannot be shared wirelessly between two ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotters
4Requires the ActiveCaptain app on your compatible smartphone paired to your ECHOMAP Ultra 2 series chartplotter
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Brand | Garmin |
| Version | ECHOMAP Ultra 2 126sv – no Transducer, ECHOMAP Ultra 2 126sv with GT56UH-TM Transducer |
Video
Specifications
Garmin ECHOMAP Ultra 2 126sv Specs
General | |
| Dimension | 13.4″ x 9.0″ x 3.9″ (34.1 x 22.9 x 9.8 cm) |
|---|---|
| Weight | 5.5 lbs (2.5 kg) |
| Waterproof | IPX7 |
| Touchscreen | ✔ |
| Display Type | WXGA, IPS |
| Display Size | 10.3″ x 6.4″; 12.1″ diagonal (26.1 x 16.3 cm; 30.7 cm diagonal) |
| Display Resolution | 1280 x 800 pixels |
| Mounting Options | Bail or flush |
| Input | Touchscreen with Keyed Assist |
Maps & Memory | |
| Accepts Data Cards | 2 microSD cards |
| Waypoints | 5000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
Sensors | |
| GPS | ✔ |
| GLONASS | ✔ |
| Galileo | ✔ |
| BeiDou | ✔ |
| Has built-in receiver | ✔ |
| Receiver | 10 Hz |
| NMEA 2000 Compatible | ✔ |
| NMEA 0183 Compatible | ✔ |
| Supports WAAS | ✔ |
| Supports multi-band, multi-constellation GPS | ✔ |
Built-in Maps | |
| Built-in Auto Guidance+ | ✔ |
| Garmin Navionics+ Inland & Coastal | ✔ |
| Tide tables | ✔ |
Optional Map Support | |
| BlueChart g3 | ✔ |
| BlueChart g3 Vision | ✔ |
| Garmin Navionics+™ | ✔ |
| Garmin Navionics Vision+™ | ✔ |
| TOPO 100K | ✔ |
| Standard Mapping | ✔ |
| Garmin Quickdraw Contours | ✔ |
Chartplotter Features | |
| AIS | ✔ |
| DSC | ✔ |
| Supports Fusion-Link™ compatible radios | ✔ |
| ActiveCaptain® compatible | yes |
| Sailing Features | ✔ |
Electrical Features | |
| Power Input | 9 to 18 Vdc |
| Typical current draw at 12 Vdc | 2.5 A |
| Maximum current draw at 12 Vdc | 5.0 A |
| Maximum power usage at 10 Vdc | 36 W |
Sonar Features | |
| Displays sonar | ✔ |
| Power output | 600 W |
| Traditional sonar (dual frequency/beam) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVü | built-in 260/455/800/1000/1200 kHz |
| SideVü | built-in 260/455/800/1000/1200 kHz |
| Panoptix™ sonar | ✔ |
| LiveScope | ✔ |

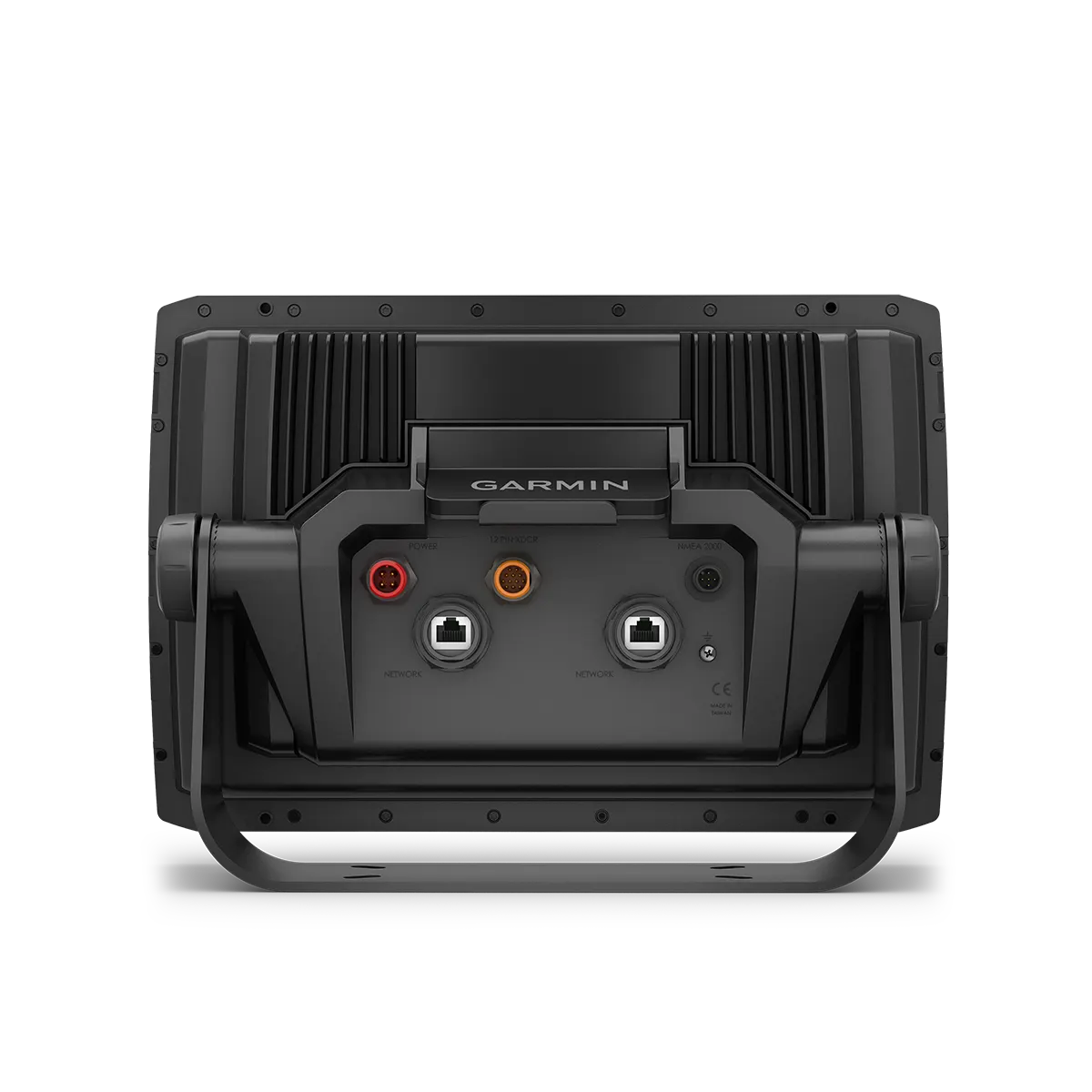

Connections | |
| NMEA 2000® ports | 1 |
| Garmin Marine Network Ports | 2 (large connector) |
| 12-pin transducer ports | 12-pin scanning sonar |
| ANT+ (Connectivity) | ✔ |
| Garmin Wi-Fi network (local connection) | ✔ |
Package Includes
In the box of ECHOMAP Ultra 2 126sv with Transducer (010-02882-01)
- ECHOMAP Ultra 126sv with Garmin Navionics+
- GT56UHD-TM transducer
- Power/data cable
- Bail mount with quick release cradle
- Protective sun cover
- Hardware
- Documentation
In the box of ECHOMAP Ultra 2 126sv Without Transducer (010-02882-00)
- ECHOMAP Ultra 126sv with Garmin Navionics+
- Power/data cable
- Bail mount with quick release cradle
- Protective sun cover
- 8-pin transducer to 12-pin sounder adapter cable
- Hardware
- Documentation
