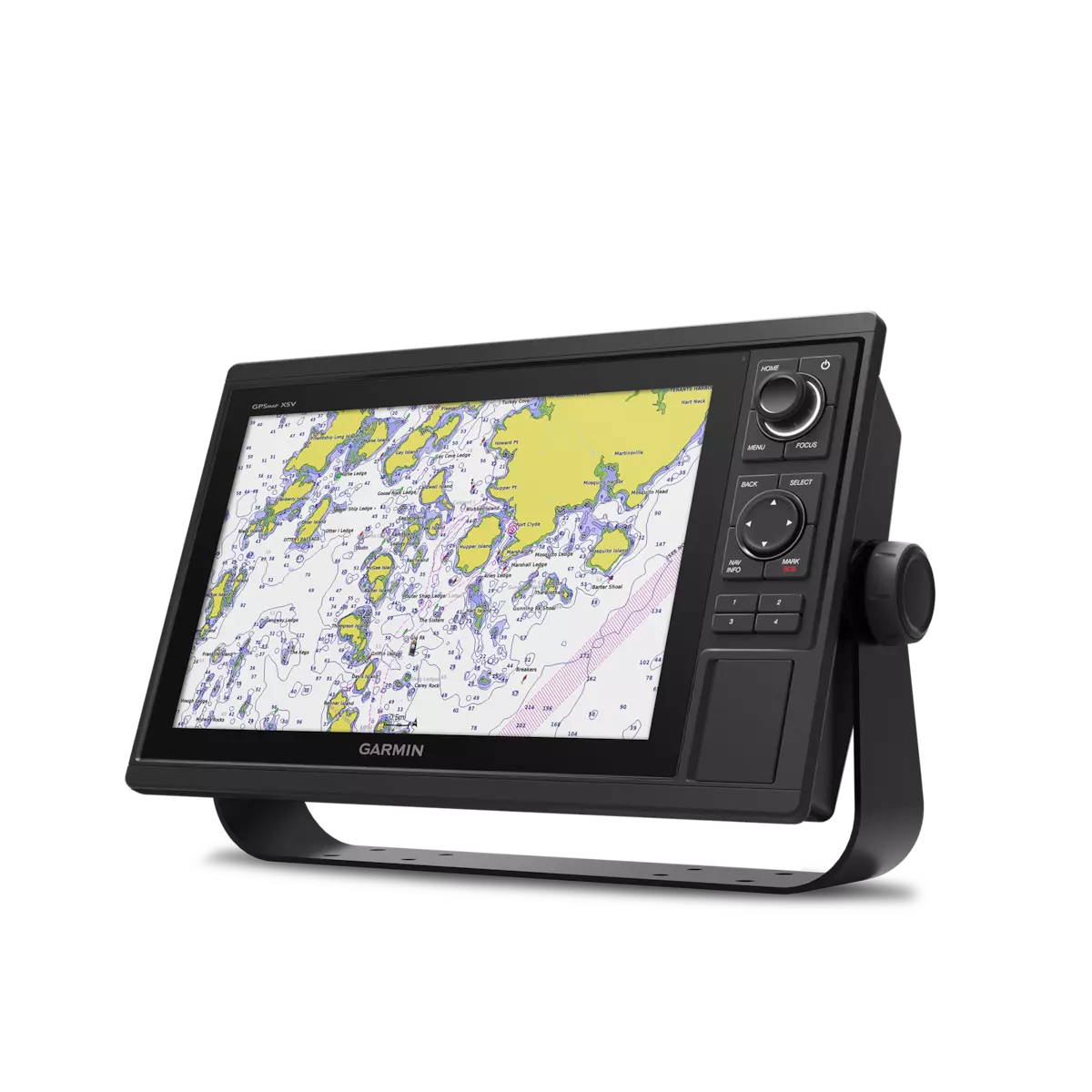

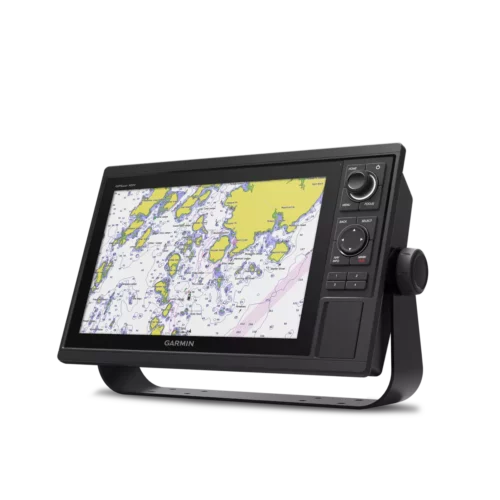

Garmin GPSMAP 1242xsv – no transducer

MPN: 010-01741-03
MPN:

$2,989.99

Experience an advanced all-in-one solution with Garmin’s 12” GPSMAP 1242xsv keyed combo. No transducer included.

Out of Stock (On Order)

SKU: 11313 Categories: Chartplotters & Sonar Combos, Marine Tag: Extended Warranty
Browse Another Category
  • New Arrivals
  • Automotive GPS
  • Aviation GPS
  • Fitness & Wearables
  • GNSS & GIS
  • GPS Accessories
  • GPS/OEM Sensors & Receivers
  • Handhelds
  • Marine
    • AIS
    • Autopilot
    • Chartplotters
    • Chartplotters & Sonar Combos
    • Charts
    • Handhelds
    • Fishfinders
    • Ice Fishing
    • Marine Accessories
    • Marine Instruments & Sensors
    • Radars
    • Remote Sounders & Black Boxes
    • Transducers
    • Trolling Motor
  • Tracking
  • Radios
  • Metal Detecting
  • Outdoors
  • On Sale
  • Gift Certificates
  • Warranties
  • Discontinued
  • Description
  • Additional information
  • Specifications
  • Package Includes
  • Accessories

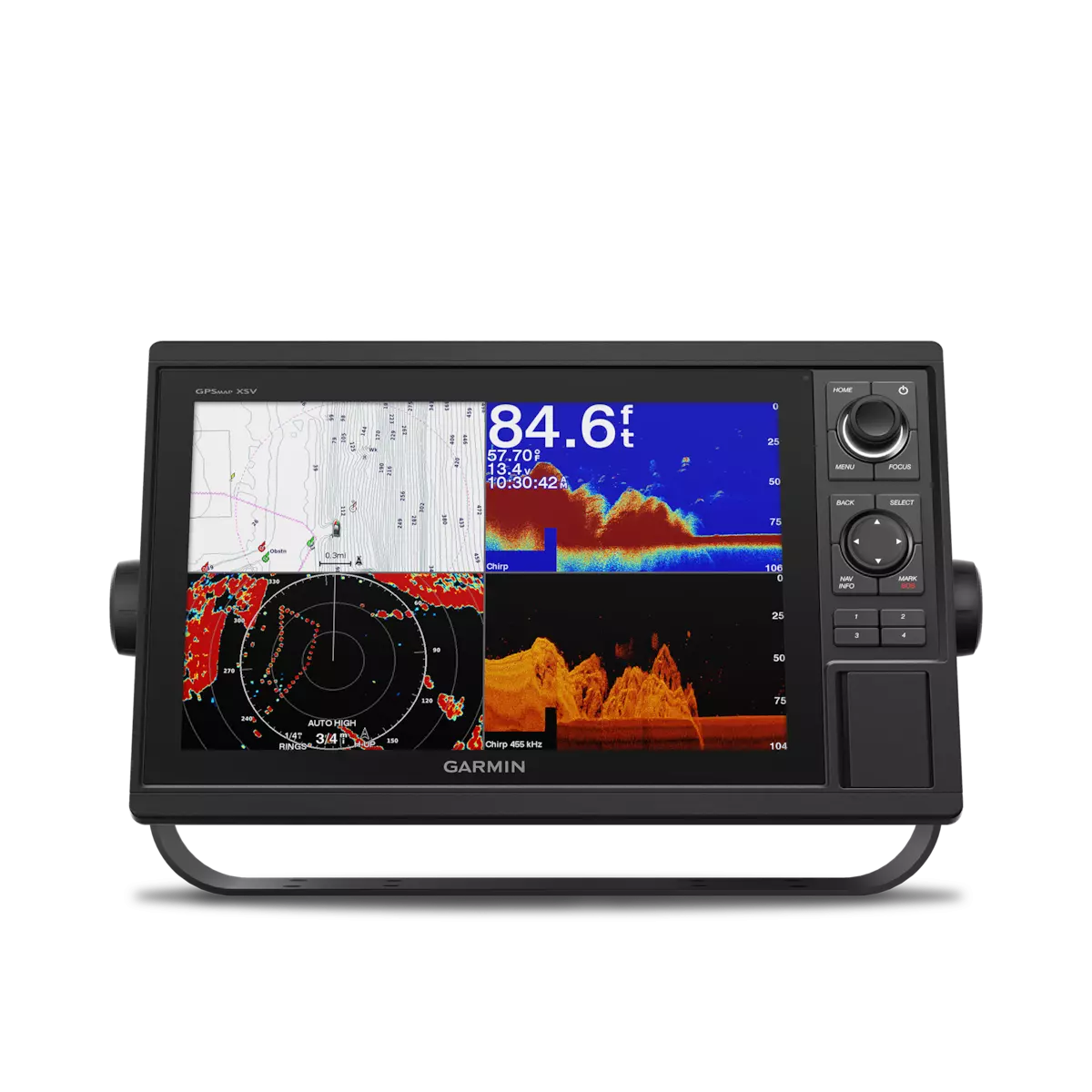

12-inch Chartplotter/Sonar Combo Is All-in-1 Solution

  • 12” color display with keypad interface and multifunction control knob
  • Preloaded U.S. LakeVü g3 maps and BlueChart® g3 charts feature Navionics® data and Auto Guidance¹ technology
  • High-sensitivity internal 10 Hz GPS and GLONASS receiver
  • Supports Panoptix™ all-seeing sonar, which includes Panoptix LiveScope™ sonar (transducers sold separately)

Experience an advanced all-in-one solution with our 12” GPSMAP 1242xsv keyed combo. There’s also built-in support for Panoptix all-seeing sonar, which includes Panoptix LiveScope sonar and a wide range of other transducers (sold separately). Features include a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.

Complete Network Sharing

Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras and Panoptix™ sonar among multiple units. Includes NMEA 2000 network connectivity and NMEA 0183 support for autopilots, digital switching, weather, FUSION-Link, VHF, AIS and other sensors.

Built-in Sonar Capabilities

Right out of the box, you have access to some amazing sonar capabilities; all you have to add are transducers. GPSMAP 1242xsv comes with built-in Garmin 1 kW CHIRP sonar along with CHIRP ClearVü and CHIRP SideVü scanning sonars. It even supports Panoptix all-seeing sonar, premium Garmin sonar modules and a wide range of transducers (sold separately).

Networked combos can share their internal sonar with any other device on the network. You can also choose what information is overlaid on the sonar screen; for example, radar, time of day or GPS speed.

Preloaded with Exceptional Garmin Cartography

LakeVü g3 inland maps and BlueChart g3 coastal charts let you experience unparalleled coverage and brilliant detail when you’re on the water. They provide industry-leading coverage and clarity with updated maps and charts that feature integrated Garmin and Navionics content plus patented Garmin Auto Guidance1 technology and other great features. With Auto Guidance, you can use your desired depth and overhead clearance to easily calculate routes and see a suggested path to follow. Up to 1’ contours provide improved detail and a more accurate depiction of the bottom structure. And easy-to-use features such as Depth Range Shading and Shallow Water Shading let you view your target depth and avoid running aground.

Built-in ANT® Connectivity

Enjoy built-in ANT wireless connectivity directly to quatix marine watch, Garmin Nautix™ in-view display, gWind™ Wireless 2 transducer, GNX™ Wind marine instrument and wireless remote controls.

The Ultimate Connected Boating App

Built-in Wi-Fi® connectivity gives you access to the free all-in-one ActiveCaptain® app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you’ll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin Quickdraw™ Contours Community. Stay connected with smart notifications on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.

Heading, Position Refreshed 10 Times per Second

Fast, responsive built-in 10 Hz GPS and GLONASS receiver refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints — and finding your way back to them — quick and easy.

Quickdraw Contours to Create Your Own HD Maps

Instantly create personalized HD fishing maps on screen with 1’ contours. Tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community on our Garmin Connect™ online network.

Built-in SailAssist Features

To help you gain a wind-maximizing competitive edge, your chartplotter features a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.

GPX Waypoints Transfer

If you have waypoints, tracks or frequently used routes stored on another manufacturer’s GPS product — or on a Garmin handheld device — it’s easy to transfer those items to your new Garmin chartplotter via industry-standard GPX software formatting.

¹Auto Guidance is for planning purposes only and does not replace safe navigation operations.

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

Weight 11 lbs
Dimensions 16.75 × 11.5 × 9 in
Preloaded Maps

BlueChart G3, LakeVu G3

Connectivity

Networking, NMEA 0183, NMEA 2000

Screen Size

12"

Compatibility

Autopilot, Live Sonar, Radar

Manufacturer Part Number 010-01741-03
GTIN 753759175511

Specifications

GPSMAP 1242xsv Physical & Performance:

Unit dimensions, WxHxD:
14.1″ x 8.9″ x 2.7″ (35.8 x 22.6 x 6.9 cm)
Display size, WxH:

10.3″ x 6.4″ (26.2 x 16.3 cm)

Display resolution, WxH:
1280 x 800 pixels
Display type:
WXGA display
Weight:
5.2 lbs. (2.34 kg)
Waterproof:
yes (IPX7)
Receiver:
10 Hz high-sensitivity
Antenna:
Internal or external over NMEA 2000
Mounting options:
Bail or flush
Power consumption:

Max power usage at 10 Vdc: 34.8 W
Typical current draw at 12 Vdc: 2.2 A
Max current draw at 12 Vdc: 2.9 A

NMEA 2000® compatible
yes
NMEA 0183 compatible
yes
SiriusXM™ Weather & Radio compatible
yes
Garmin Marine Network™ ports
2

GPSMAP 1242xsv Maps & Memory:

Preloaded maps:
BlueChart g3 (US and Western Canada coastal maps) and LakeVu g3 (inland maps)
Ability to add maps:
yes
Accepts data cards:
2 SD™ cards (not included)
Waypoints/favorites/locations:
5,000
Routes:
100
Track log:
50,000 points; 50 saved tracks

GPSMAP 1242xsv Features :

Garmin radar compatible:
yes
Garmin sonar compatible:
yes (built-in)
Garmin SmartMode compatible (customizable monitor presets)
yes
Supports AIS (tracks target ships position)
yes
Supports DSC (displays position data from DSC-capable VHF radio)
yes
Tide tables
yes
Garmin Meteor Audio System compatible
yes
Supports FUSION-Link compatible marine radios
yes
GSD™ Black Box sonar support:
yes
GCV™ Black Box sonar support:
yes
BlueChart® Mobile (planning) compatible
yes
Garmin Helm compatible
yes
GRID™ (Garmin Remote Input Device) compatible
yes
Wireless remote compatible
yes

GPSMAP 1242xsv Sonar Features & Specifications

Dual-frequency (50/200 kHz) sonar capable
yes
Dual-beam (77/200 kHz) sonar capable
yes
Frequencies supported
Traditional sonar (50/77/83/200 kHz)
CHIRP (low, medium, high)
CHIRP ClearVü/SideVu (260/455/800 kHz)
(dependent on transducer)
Transmit power
1 kW traditional; 1 kW single channel CHIRP
CHIRP sonar technology
Yes (Built-in)
ClearVü
Yes with CHIRP (built-in)
SideVü
Yes with CHIRP (built-in)
Maximum depth
5,000 ft at 1kW
(depth capacity is dependent on water bottom type and other water conditions)
Bottom lock (shows return from the bottom up)
yes
Water temperature log and graph
yes
Sonar recording
yes
Sonar history rewind
yes

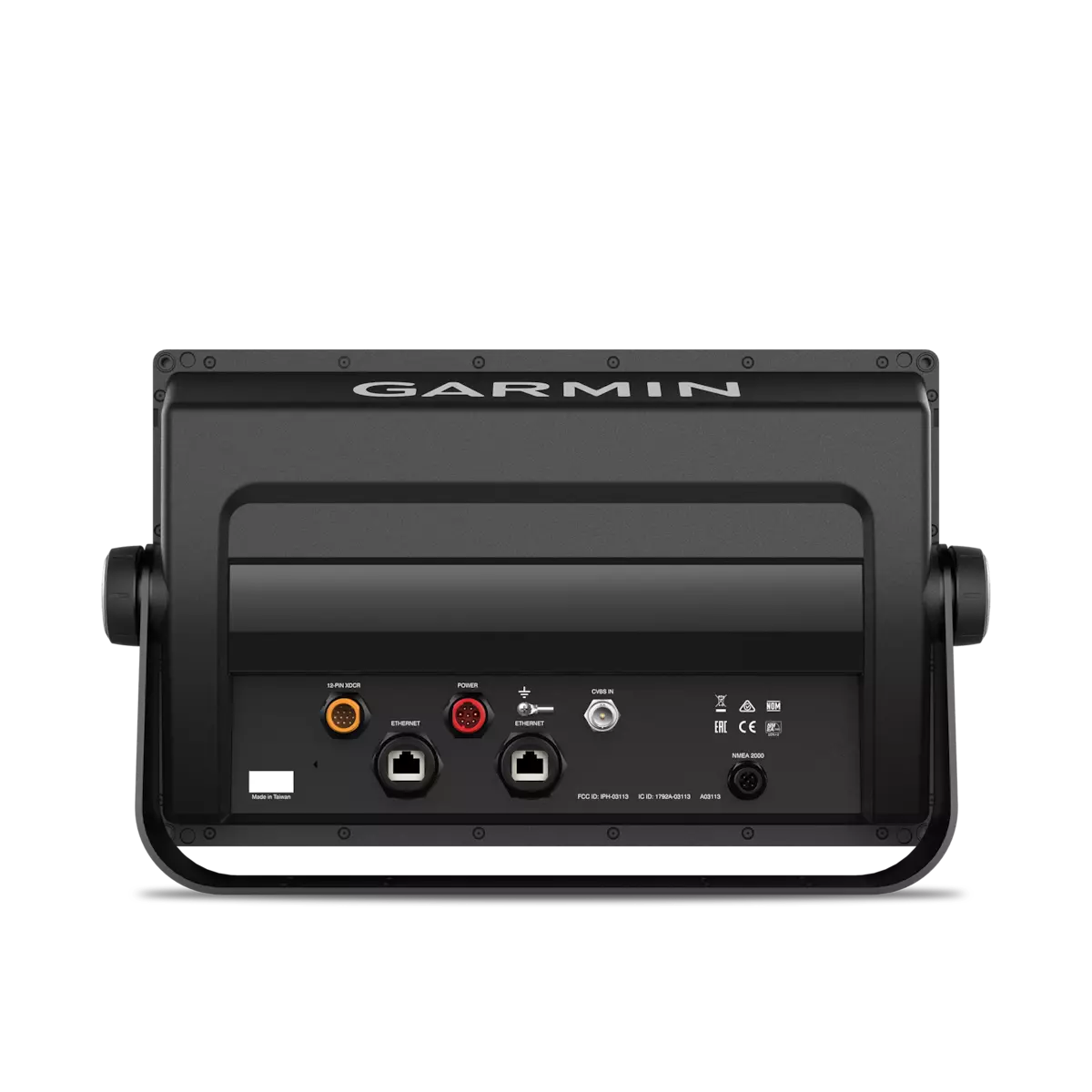

GPSMAP 1242xsv Connections

Transducer pin numbers
12
NMEA 0183 input ports:
1
NMEA 0183 output ports:
1
Video input ports:
1 BNC
Video output ports:
none
Wireless connectivity:
yes

Package Includes

Garmin GPSMAP 1242xsv (no transducer) Package Includes (010-01741-03)

  • GPSMAP 1242xsv Chartplotter
  • Power/data cable
  • NMEA 2000 T-connector
  • NMEA 2000 drop cable (2 m)
  • 8-pin transducer to 12-pin sounder adapter cable (transducer NOT included)
  • Bail mount kit with knobs
  • Flush mount kit with gasket
  • Protective cover
  • Trim piece snap covers
  • Documentation
