GT24UHD-TM Specifications |
|
|
Frequency
|
Traditional CHIRP: CHIRP High Wide (150-240 kHz)
Ultra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz |
|
Power
|
Traditional CHIRP: 350 W
Ultra High-Definition ClearVü: 350 W |
|
Beamwidth
|
Traditional CHIRP: Adjustable from 16° to 24° in 1° steps
Ultra High-Definition ClearVü: 0.94° x 60° |
|
Maximum depth
|
Traditional CHIRP: 800’
Ultra High-Definition ClearVü: 200’ |
|
Depth/Speed/Temperature
|
Depth and Temperature
|
|
Number of pins
|
8-pin (blue connector)
|
|
Cable length
|
20 ft.
|
|
Supported deadrise/Transom angles
|
0°-70° degree transom |
Package includes:

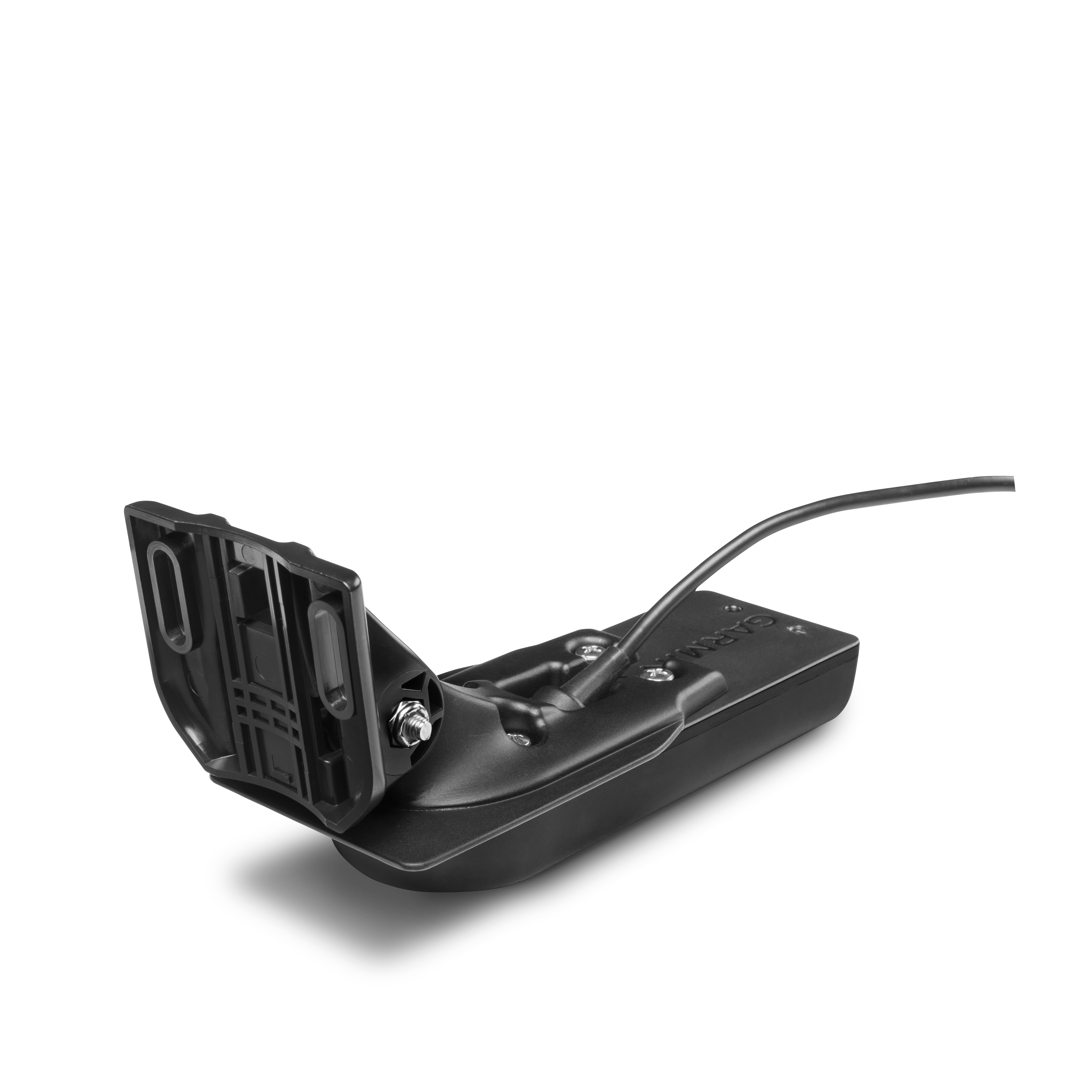

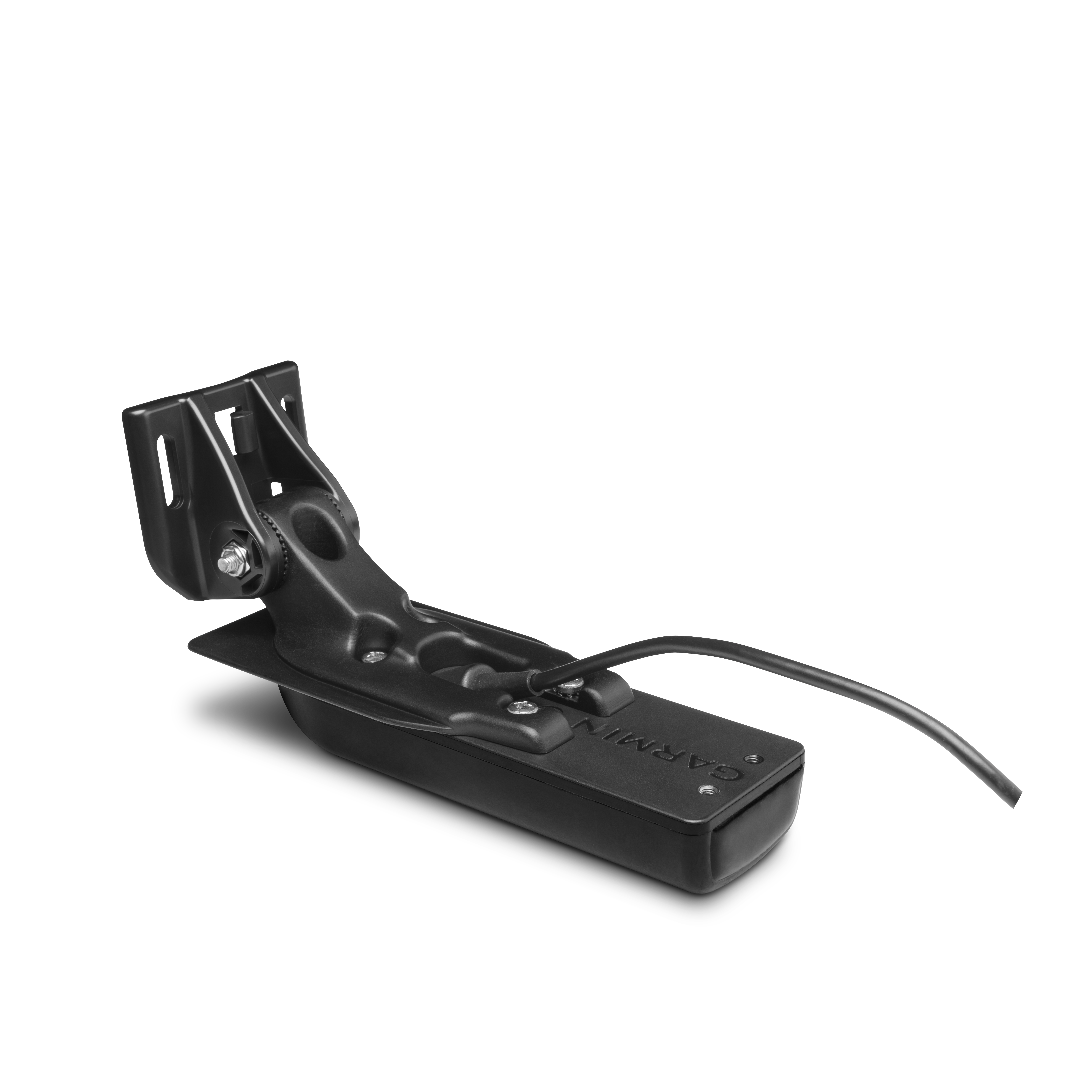

- GT24UHD-TM transducer
- Transom mount
- Trolling motor mount
- Mounting hardware
- Documentation
