Garmin LiveScope XR System Specifications
General |
|
| DIMENSION | GLS 10 sonar black box: 9.7” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm); LVS62 transducer: 8.20” x 3.98” x 2.76” (20.8 x 10.1 x 7.0 cm) |
|---|---|
| WEIGHT | GLS 10 sonar black box: 4.3 lbs (2.0 kg) LVS62 transducer with cable: 3.92 lbs (1.78 kg) LVS62 transducer without cable: 2.66 lbs (1.21 kg) |
| WATERPROOF | IPX7 |
| TRANSDUCER BEAMWIDTH | 20° x 135° |
| TRANSDUCER CABLE LENGTH | 20 ft |
| TRANSDUCER NUMBER OF PINS | 21 |
| TEMPERATURE RANGE | GLS 10 Black Box: Operating: -15 C to 70 C LVS62 Transducer: Operating: 0 C to 40 C |
Sonar Features & Specifications |
|
| FREQUENCY | 265 – 550 kHz |
| MAXIMUM DEPTH | Freshwater: Down and Forward: 500’ (152.0 m) Saltwater: Down and Forward: 350’ (106.0 m) |
| SONAR TYPE | Live |
| TARGET SEPARATION @100′ | 22″ |
| PERSPECTIVE MODE MOUNT INCLUDED | ✔ |
Connections |
|
| GARMIN MARINE NETWORK PORTS | 1 (small connector) |
Electrical Features |
|
| POWER INPUT | 10-32 V |
| POWER USAGE | 21 W typical, 58 W max |
| TRANSMIT POWER | 500 W |
| FUSE | 7.5 A |
| COMPASS SAFE DISTANCE | 7″ (0.18 m) |
In the Box:

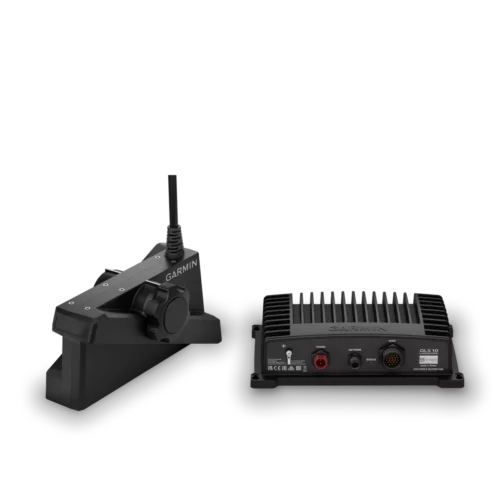

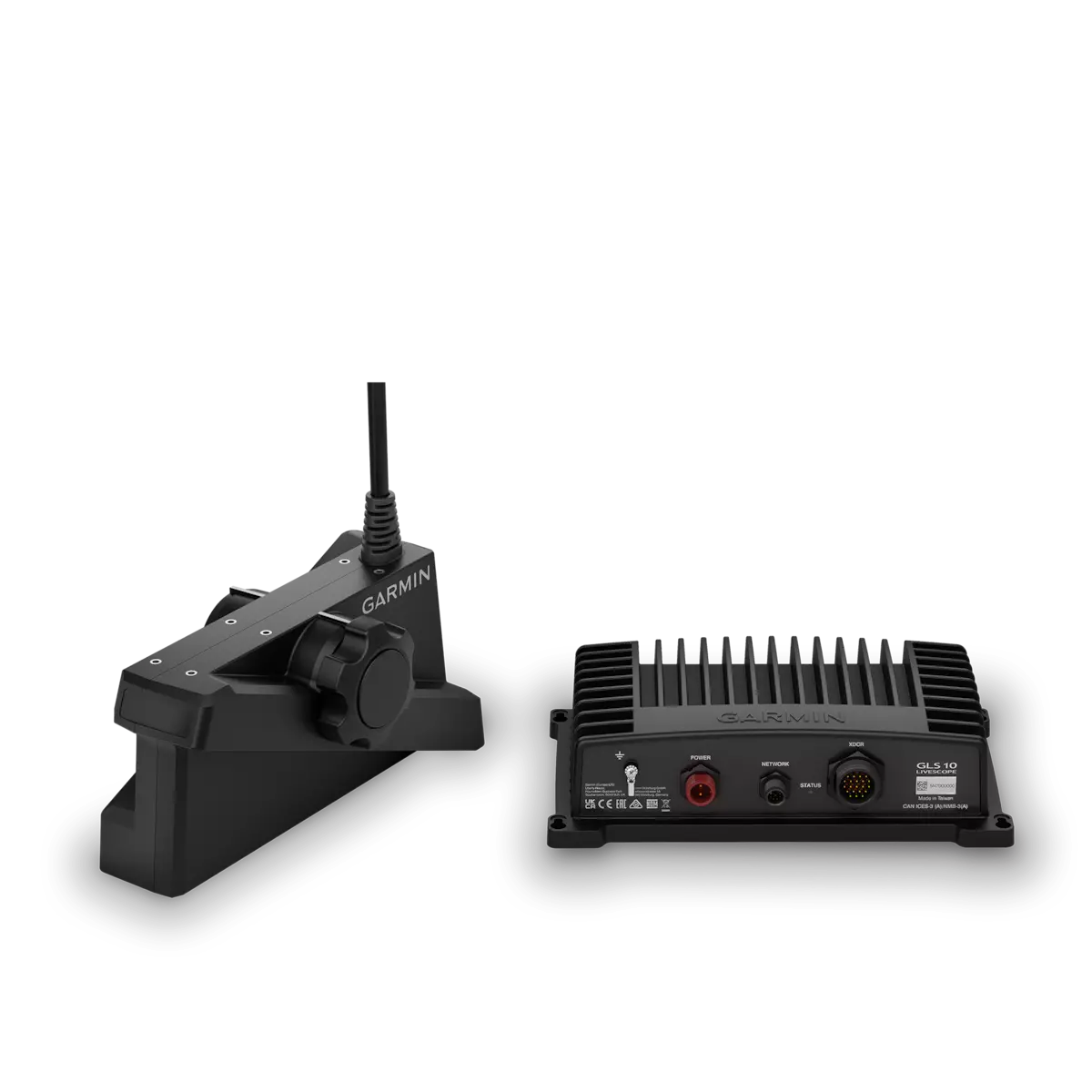

- LiveScope GLS 10 sonar black box

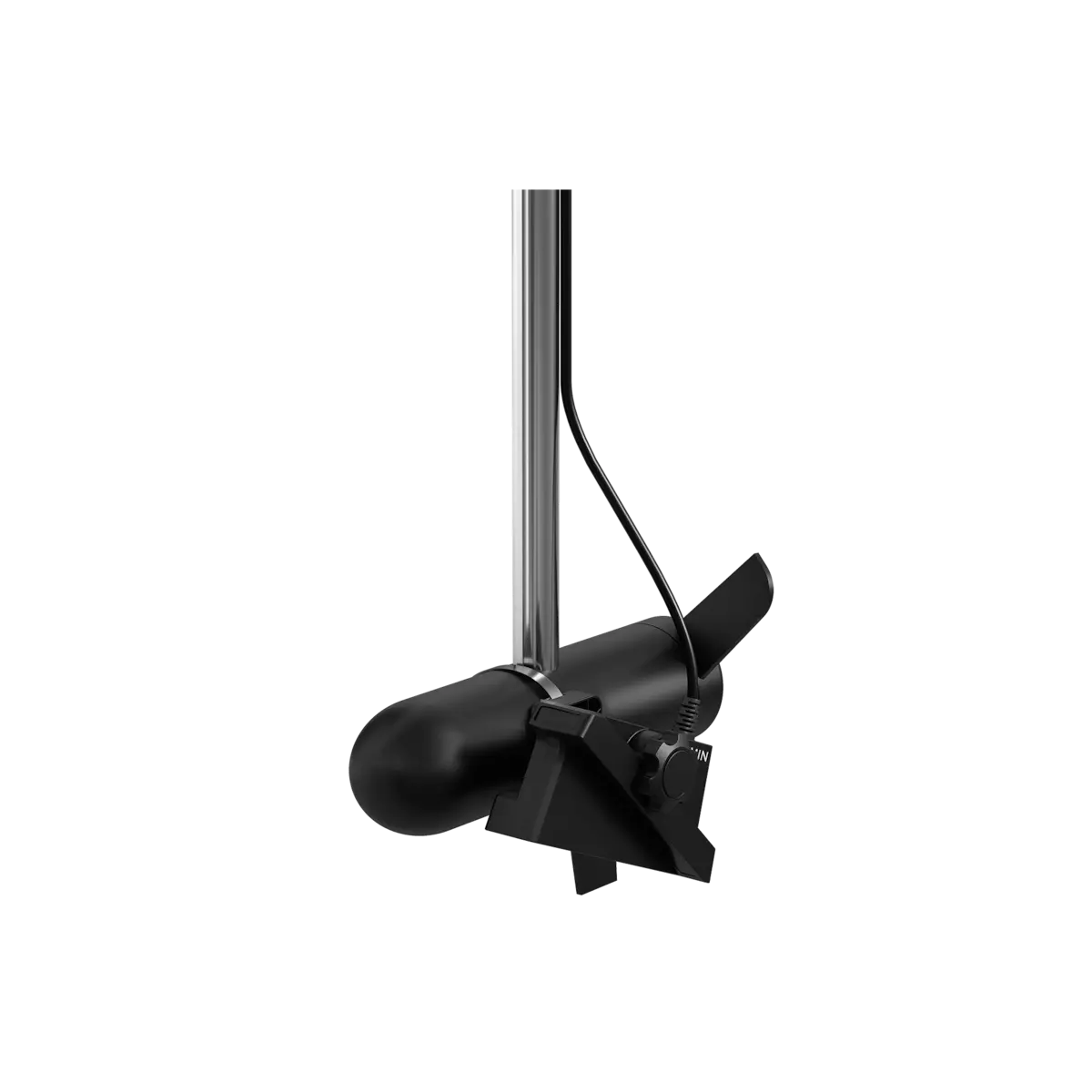

- LiveScope XR LVS62 transducer

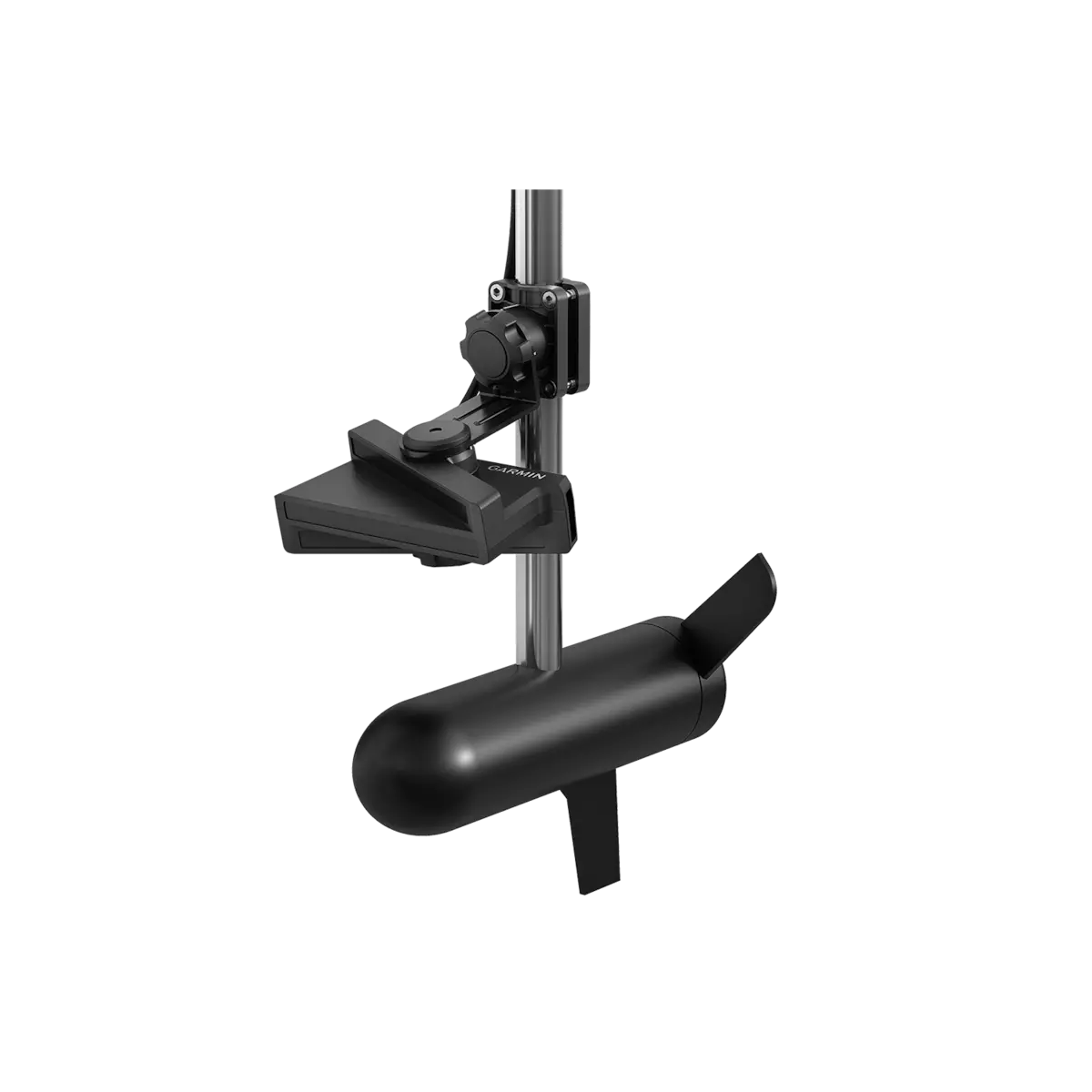

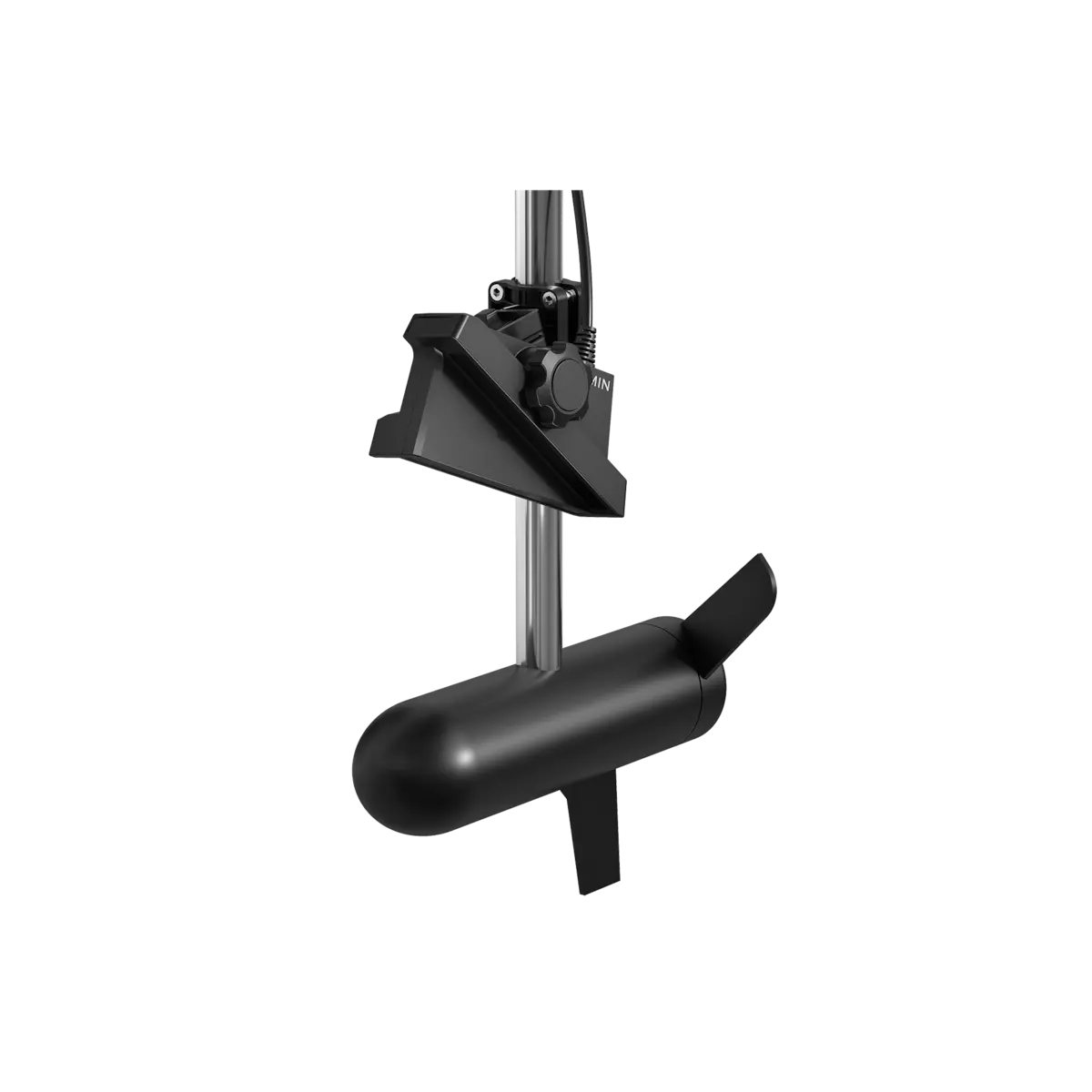

- Perspective mount (LiveScope XR LVS62 transducer only)
- Trolling motor barrel mount
- Shaft mount
- Power cable
- 2 meter Garmin Marine Network cable (small connector)
- Network adapter cable
- Documentation
