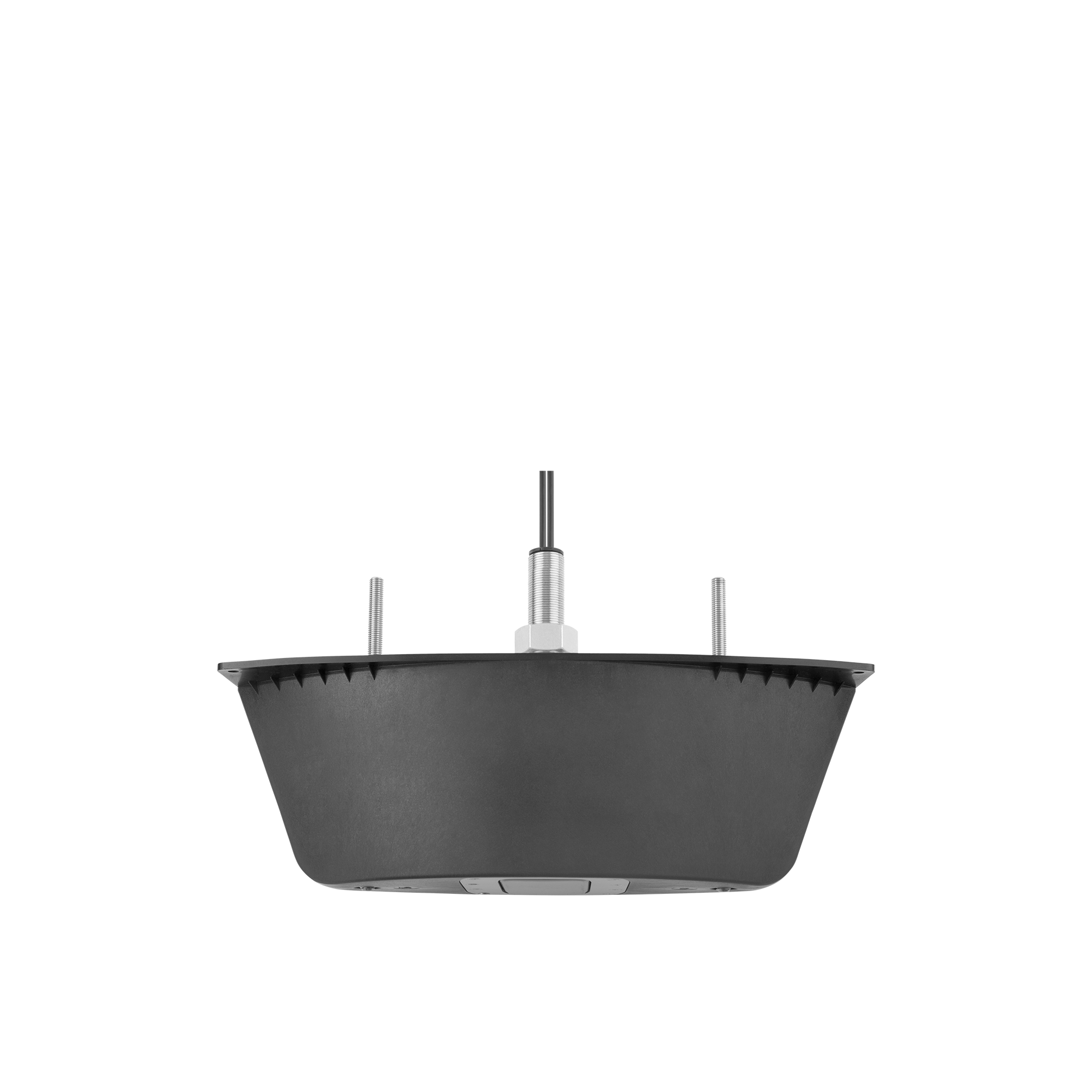

PS60 Thru-hull Down Transducer Specifications
The Panoptix PS60 transducer does not provide water temperature or digital depth information to the connected chartplotter. If this information is desired, a separate transducer with those capabilities is required.- Weight:
- Transducer only: 4.8 lbs ( 2.2kg)
- Transducer and cable: 6.2 lbs (3.0 kg)
- Fairing block: 7.2 lbs (3.3 kg)
- Temperature Range:
- Operating: 32°F to 104°F (0°C to 40°C)
- Non-operating: -40°F to 158°F (-40°C to 70°C)
- Mounting option: Thru-Hull
- Power consumption: <0.8 A @ 12 Vdc
- Voltage range: 10-35 Vdc
- Frequencies supported: 417 kHz
- Maximum range: 300 ft
- LiveVü Down
- User selectable beam direction: Electronically steerable over 90° region (+/- 45° fore/aft)
- User selectable beam shape: 120°/10°, 120°/20°, 120°/40°
- RealVü Historical
- Fixed beam shape of 120° x 6°
- Fixed down beam direction
- RealVü Down
- Automatically sweeps beam over 90° x 120° region (+/- 45° fore/aft)
- User selectable sweep speed automatically determines beam shape
- Slowest sweep for narrowest beam / maximum resolution
- Fastest sweep for widest beam / minimum resolution
Package includes:
- PS60 thru-hull down transducer (integrated 30 foot network cable, 15 foot power cable)
- Fairing block
- Stainless steel thru-hull mounting hardware
- Split ring RJ45 connector
- Documentation
