Cortex V1 Specifications
General |
|
| UNIT SIZE | M1: 168 x 168 x 58.7 mm (6 5/8” x 6 5/8” x 2 5/16” ) H1/H1P: 164.8 x 71.8 x 21.4 mm (6 1/2” x 2 13/16” x 7/8”) |
|---|---|
| WEIGHT | M1: 770 g (1.7 lbs) H1: 285 g (0.63 lb) H1P: 235 g (0.52 lb) |
| WATER RATING | IPX7 |
| OPERATING VOLTAGE | H1/H1P: 12-24V compatible |
| CURRENT DRAW | 12V: 6A max, 700mA nom |
| OPERATING TEMPERATURE | -25°C to +55°C (-13°F to 131°F) |
| VHF VOICE | ✔ |
| ATIS | ✔ |
| TRANSMITTER FREQUENCY ERROR | Less than 300 Hz |

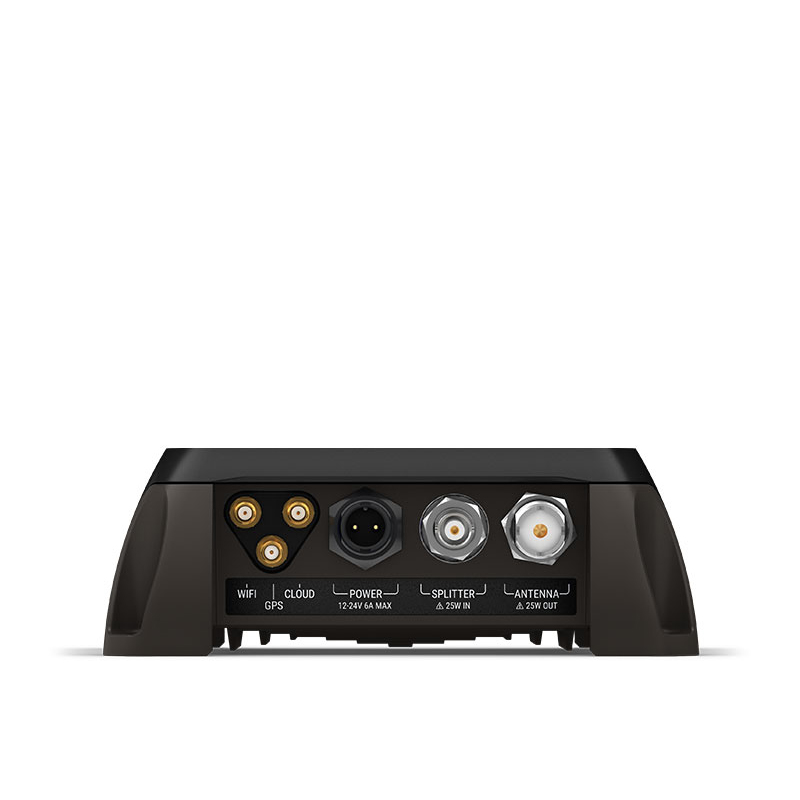

| ANT CONNECTOR | SO239 |
| SPLITTER | Max input power 25 W Insertion loss RX 0dB, TX < 2dB |
| SPLITTER CONNECTOR | BNC |
VHF Voice |
|
| VHF FREQUENCY RANGE TX | 156.025–161.600 MHz |
| VHF FREQUENCY RANGE RX | 156.050–163.275 MHz |
| DEDICATED RX VHF CHANNELS | 3 |
| VHF POWER OUTPUT | 25 W, 1 W (high, low) |
| REGION | U.S., Canada, International |
| SENSITIVITY (12 DB SINAD) | -116 dBm |
| ADJACENT VHF CHANNEL SELECTIVITY | 80 dB |
| SPURIOUS RESPONSE | 70 dB |
| VHF INTERMODULATION | 70 dB |
| SPURIOUS EMISSIONS | Less than -80 dBc (at 25 W) |
| MAX AUDIO OUTPUT POWER | 10 W, < 1% THD |
| MAX ANTENNA GAIN | 6 dBi |
Class D DSC |
|
| CLASS | Class D |
| DEDICATED RX DSC CHANNELS | One |
| SENSITIVITY (1% BER) | -113 dBm |
| ADJACENT DSC CHANNEL SELECTIVITY | 80 dB |
| DSC INTERMODULATION | 70 dB |
AIS |
|
| CLASS | SOTDMA Class B |
| DEDICATED RX AIS CHANNELS | 2 |
| FREQUENCY RANGE | 156.025 – 162.025 MHz |
| AIS POWER OUTPUT | 5W |
| AIS SENSITIVITY (20% PER) | -113 dBm |
| ADJACENT AIS CHANNEL SELECTIVITY | 80 dB |
| AIS INTERMODULATION | 67 dB |
GNSS |
|
| GNSS SENSITIVITY | -167 dBm |
| CONSTELLATIONS | GPS, GLONASS, BeiDou, Galilleo |
| CHANNELS | 72 |
| DIFFERENTIAL SUPPORT | SBAS, WAAS, EGS |
| NAVIGATION RATE | 10 Hz |
| CONNECTOR | SMA |
| CERTIFICATIONS | IEC 61108 |
| FEATURES | anti-jamming, anti-spoofing |
Networking |
|
| NMEA 2000® GATEWAY | 1 isolated micro-C male port, AIS, GPS & MOB PGN output, gateway translations to/from NMEA 0183 |
| NMEA 2000® LEN | 2 |
| NMEA 0183 DETAIL | 1 isolated NMEA 0183 port, AIS & GPS sentences, gateway translations to/from NMEA 2000®, 4800/38400 baud |
| WIRELESS SECURITY | WPA2 Personal |
| CLOUD CONNECTIVITY | LTE-Cat1 with 3G fallback (U.S., Canada), 3G (Europe, Asia), integrated SIM, integrated antenna, SMA-RP external antenna port |
| CONTROL OUTPUTS | 2; low side driven (max 150mA) |
Sensors |
|
| NMEA 2000 COMPATIBLE | ✔ |
| AMBIENT LIGHT SENSOR | ✔ |
| HEADING | 9-axial, accuracy: +/- 10 deg, updated rate: 10 Hz (max) |
| BAROMETER | update rate 1Hz max (averaged) |
| BATTERY VOLTAGE | measured at power input |
| EXTERNAL SENSOR INPUTS | 5; Digital (0-24V), analog (0-17V) |
Audio |
|
| SUPPORTED FUNCTIONS | VHF RX, Alarms |
| AMPLIFIER | M1: 10W Class D, THD < 1% 4 ohm, H1/H1P: 3W Class D amplifier, THD < 5% @ 85dBA |
| EXTERNAL SPEAKER | 10W, 4 ohm |
| EXTERNAL LOUDSPEAKER | 30W, 4 ohm |
Display |
|
| SCREEN | LCD TFT Si, 640 x 800, 24-bit color |
| TOUCH | capacitive, optically-bonded to LCD |
| TOUCH FEATURE | glove and salt water operable |
| CABLE LENGTH | 6 ft |
| CHANNEL 16 SHORTCUT | ✔ |
Connections |
|
| CONNECTIONS WIRELESS CONNECTIVITY | access point for up to 5 handsets (max 10 devices total), simultaneous client mode, 2.4 GHz, 802.11b/g/n, integrated antenna, SMA-RP external antenna port (optional) |
Electrical Features |
|
| COMPASS SAFE DISTANCE | standard 31.5″ (80 cm), steering 15.7 (40 cm) |
Instrument Features |
|
| BACKLIGHT | 600 cd/m2 |
*Water rating: M1 is IPX7; H1/H1P is IPX8
In the Box:

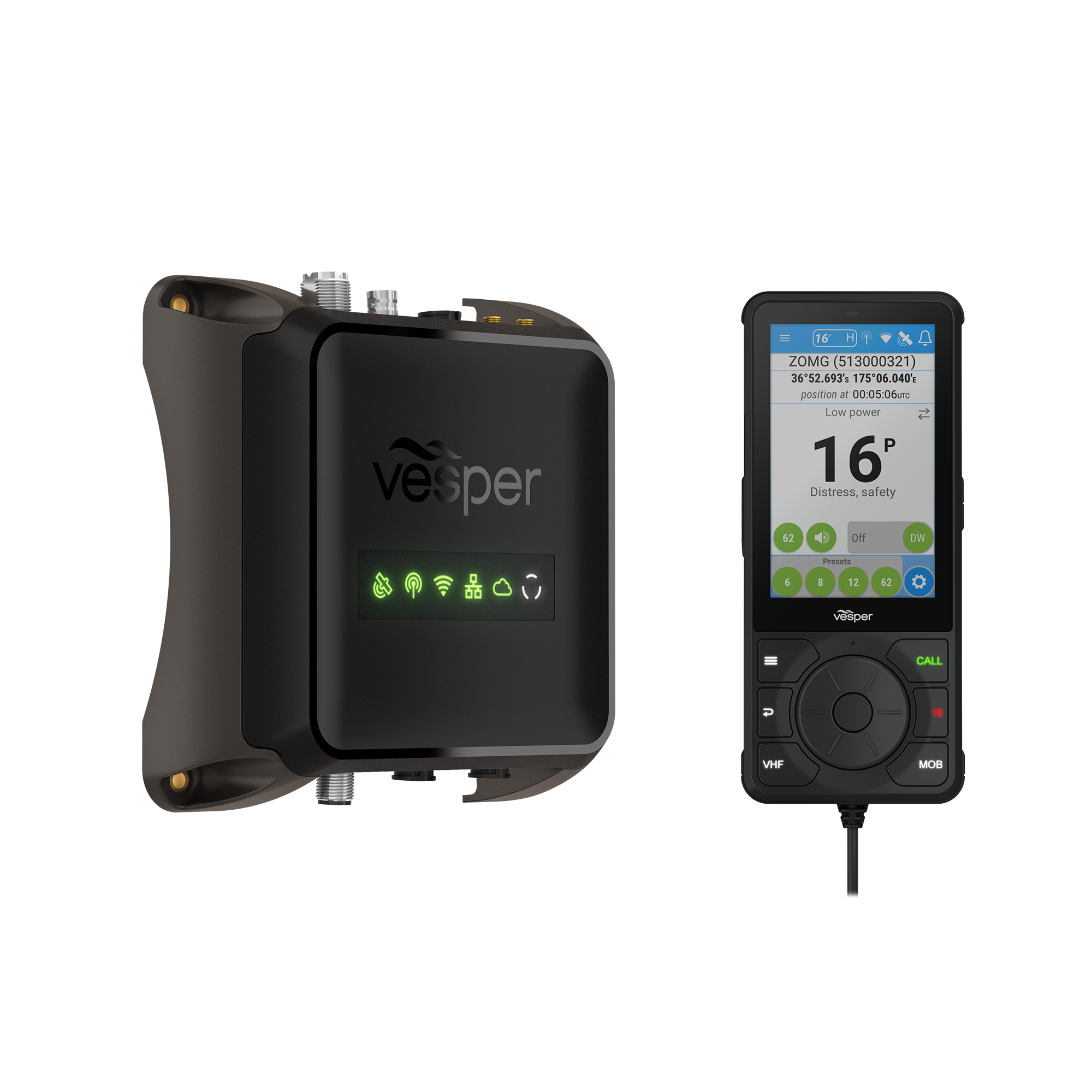

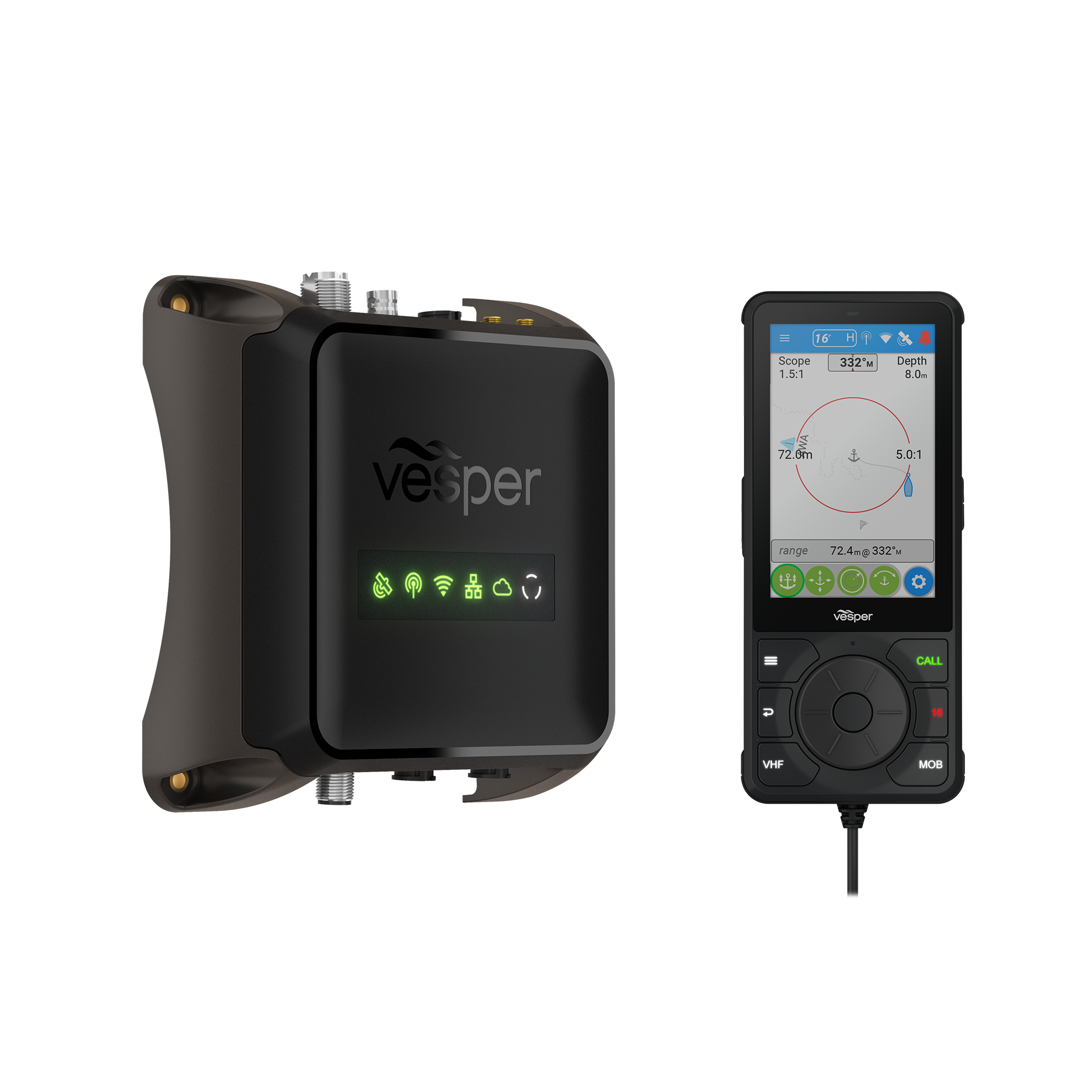

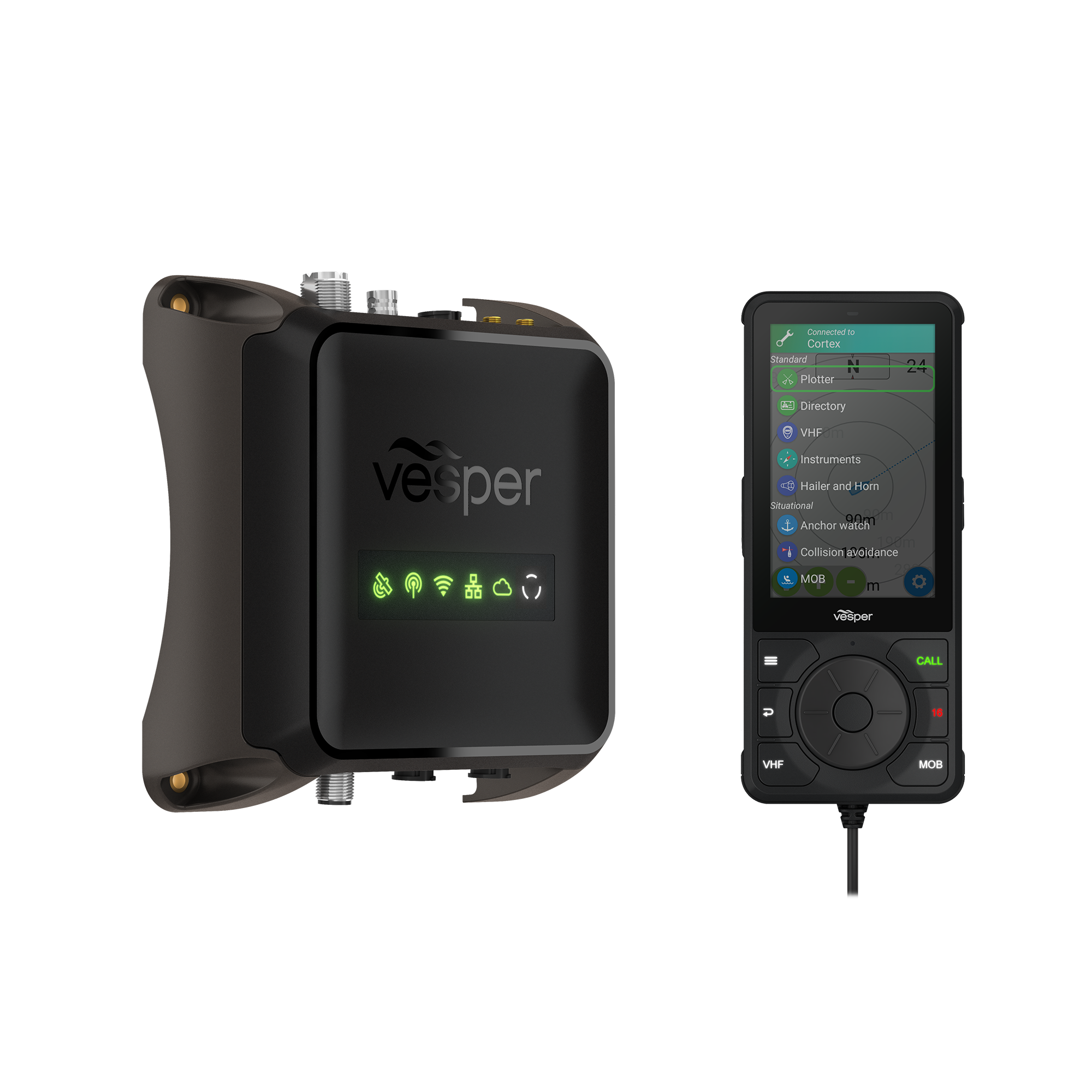

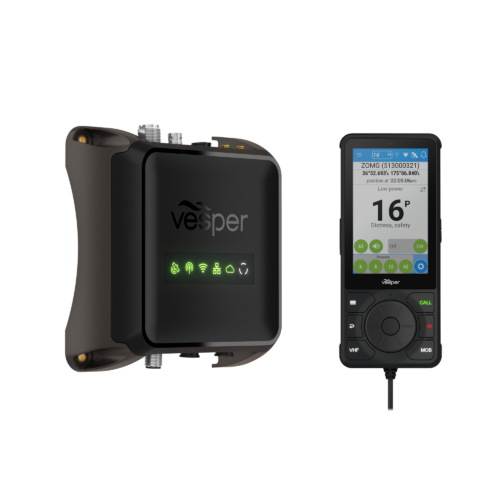

- M1 Hub
- H1 tethered handset
- H1 handset cradle
- H1 bulkhead fitting kit
- GPS antenna
- Power cable
- Audio cable
- External sensors cable
- External Wi-Fi® antenna
