GPSC PN
Availability
Sale Ends
Notify Me
TECHNICAL SPECIFICATIONS
| FREQUENCY RANGE | 156/162 MHz |
| GAIN AVERAGE | 3dB |
| IMPEDANCE | 50 ohms |
| POLARIZATION | Vertical |
| SWR | ≤ 1,3 at 156,8 MHz |
| MAX INPUT POWER | 100 W |
| DC GROUND | Yes |
| ANTENNA LENGHT | 900mm/35” |
| ANTENNA WEIGHT | 180g/6,35oz |
| TERMINATION | RA106 solderless connector |
In the Box:

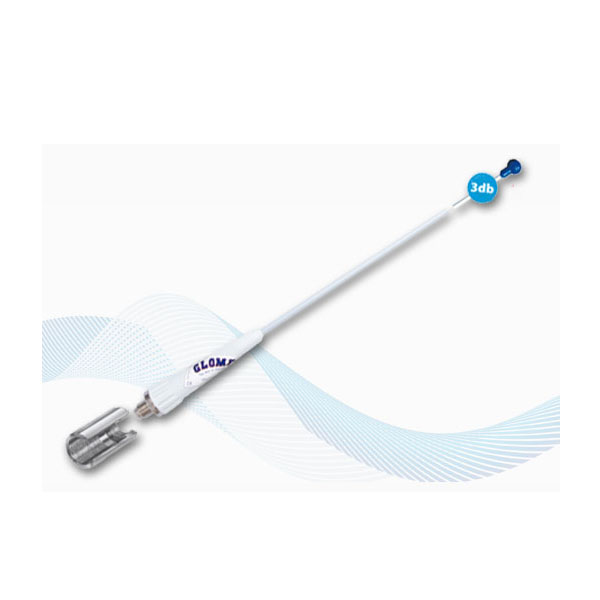

- RA106GRPPB6135 Antenna
- 4.5m Coax Cable
- PL259 Male Connector
- RA138 Threaded Protection
- RA135 4-Way Ratchet Mount
- RA106ADAPT1X14
- RA140 Feed-Thru
