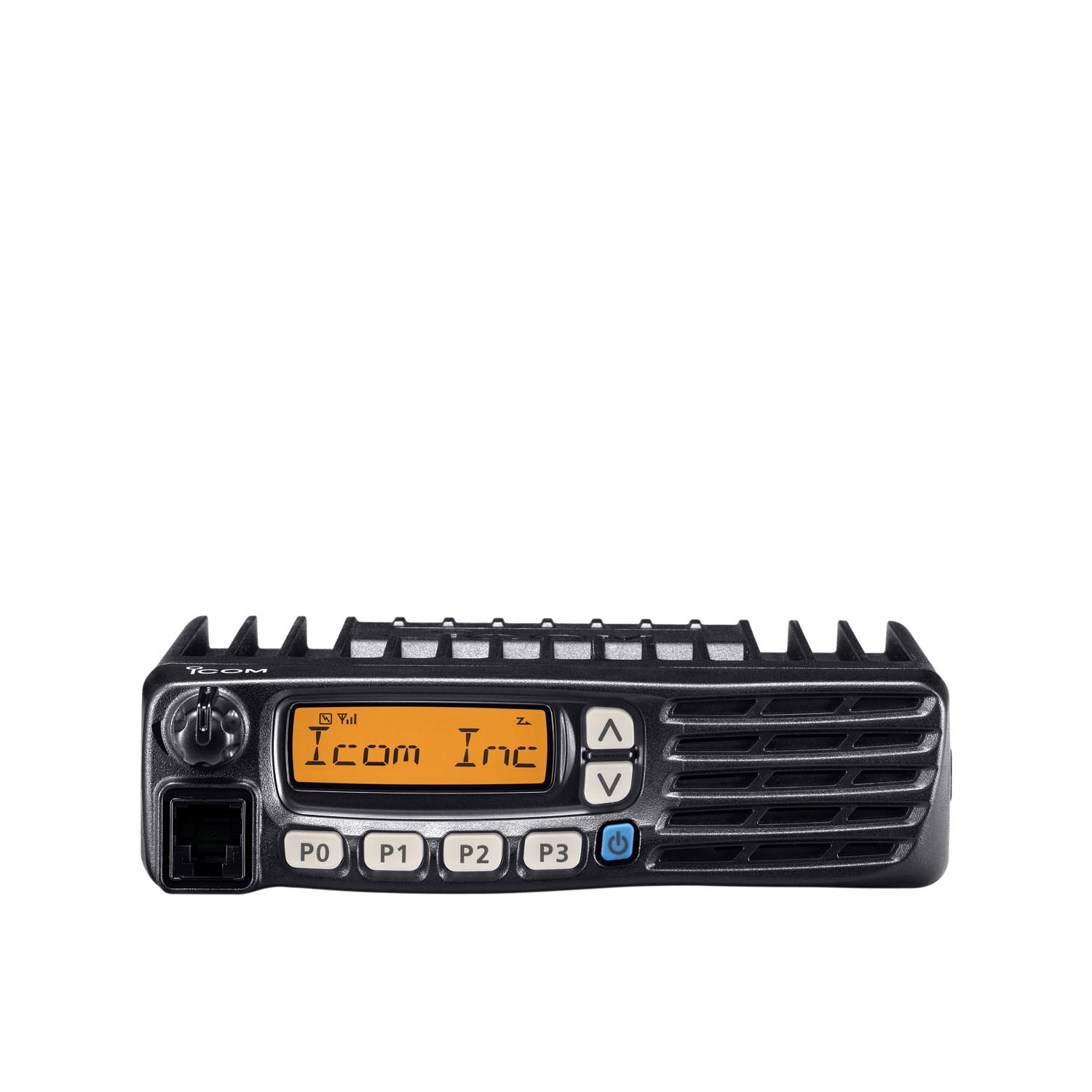

Icom IC-F5023H Specifications
|
|||
|
GENERAL
|
|||
|
Frequency coverage
|
136–174 MHz
|
||
|---|---|---|---|
|
Number of channels
|
Max. 128 Ch/ 8 zones
|
||
|
Channel spacing
|
12.5/6.25kHz
|
||
|
Type of emission
|
16K0F3E, 11K0F3E
|
||
|
Current drain (approx.)
|
Tx
|
10.0A
|
|
|
Rx
|
Max. audio
|
0.7A
|
|
|
Standby
|
250mA
|
||
|
Dimensions (W×H×D) (projections not included)
|
150×40×167.5 mm |
||
|
Weight (approx.)
|
1.1kg |
||
|
TRANSMITTER
|
|
|
RF output power
|
50W
|
|---|---|
|
Spurious emissions
|
70dB typ.
|
|
Frequency stability
|
±2.5ppm
|
|
Audio harmonic distortion
|
3% typical; 40% deviation
|
|
FM Hum and Noise
|
46dB typ. (W); 40dB typ. (N)
|
|
RECEIVER
|
|
|
Sensitivity at 12dB SINAD
|
0.25μV typ.
|
|---|---|
|
Adjacent channel selectivity (W/N)
|
75dB/65dB typ.
|
|
Spurious response rejection
|
80dB typ.
|
|
Intermodulation rejection
|
75dB typ
|
|
AF output power (at 5% distortion with an 4 Ω load)
|
4W typ.
|
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
|
Standard
|
MIL-810 F Method, Proc.
|
|---|---|
|
Low Pressure Storage
|
500.4 I
|
|
Low Pressure Operation
|
500.4 II
|
|
High Temperature Storage
|
501.4 I
|
|
High Temperature Operation
|
501.4 II
|
|
Low Temperature Storage
|
502.4 I
|
|
Low Temperature Operation
|
502.4 II
|
|
Temperature Shock
|
503.4 I
|
|
Solar Radiation
|
505.4 I
|
|
Humidity Induced
|
507.4
|
|
Settling Dust
|
510.4 III
|
|
Vibration
|
514.5 I
|
|
Shock Functional
|
516.5 I
|
|
Shock Transit Drop
|
516.5 IV
|
Also meets equivalent MIL-STD-810 -C, -D, -E and -F. All stated specifications are subject to change without notice or obligation.
Package Includes:
- IC-5023H
- Hand microphone (HM-152)
- Microphone hanger
- DC power cable
- Key assign stickers
- Mounting bracket kit
