Icom IC-M510BB Specs
General
| Frequency range | TX | 156.025~157.425 MHz | |
|---|---|---|---|
| RX | 156.050~163.275 MHz | ||
| DSC | 156.525 MHz | ||
| AIS1, 2 | 161.975, 162.025 MHz | ||
| Usable channels | USA, CAN, INT, WX channels | ||
| Type of emission | 16K0G3E (FM), 16K0G2B (DSC), 16K0GXW (AIS) | ||
| Power supply requirement | 13.8 V DC (11.7~15.9 V DC) | ||
| Current drain (at 13.8 V DC) |
TX 25 W output | 5.5 A Max. | |
| RX Max. audio | 1.5 A (One CommandMic) 4.5 A (Three CommandMic & RX hailer) |
||
| Operating temperature range | –20°C ~ +60°C; –4°F ~ +140°F | ||
| Antenna impedance | 50 Ω | ||
| Dimensions (W x H x D, Projections are not included) | RF unit | 216 x 79 x 113 mm, 8.5 x 3.1 x 4.4 in | |
| CommandMic | 67.5 x 144.5 x 37 mm, 2.7 x 5.7 x 1.5 in | ||
| Weight (approx.) | RF unit | 890 g; 2 lb. | |
| CommandMic | 400 g; 14.1 oz | ||
Transmitter
| Output power | 25 W, 1W | |
|---|---|---|
| Max. frequency deviation | ±5 kHz | |
| Frequency tolerance | ±0.5 kHz | |
| Spurious emissions | Less than −70 dBc (at 25 W) Less than −56 dBc (at 1 W) |
|
| Residual modulation | More than 40 dB | |
| Adjacent channel power | More than 70 dB | |
Receiver
| Sensitivity | FM | 0.22 μV typical (at 12 dB SINAD) |
|---|---|---|
| DSC (1% BER) | -7 dBμ emf typical | |
| Adjacent channel selectivity | FM | More than 70 dB |
| DSC (1% BER) | More than 73 dBμ emf | |
| Spurious response | FM | More than 70 dB |
| DSC (1% BER) | More than 73 dBμ emf | |
| Intermodulation | FM | More than 70 dB |
| DSC (1% BER) | More than 68 dBμ emf | |
| Hum and noise | More than 40 dB | |
| Audio output power | CommandMic | More than 2 W (with 4 Ω load, at 10% distortion) |
| Rx hailer | More than 15 W (with 4 Ω load) | |
Applicable IP Rating
| Ingress Protection Standard | |
|---|---|
| IC-M510BB (Black box RF unit and CommandMic) | IPX7 (Waterproof protection)* |
* Except for the DC power connector, NMEA In/Out leads and AF Out leads.

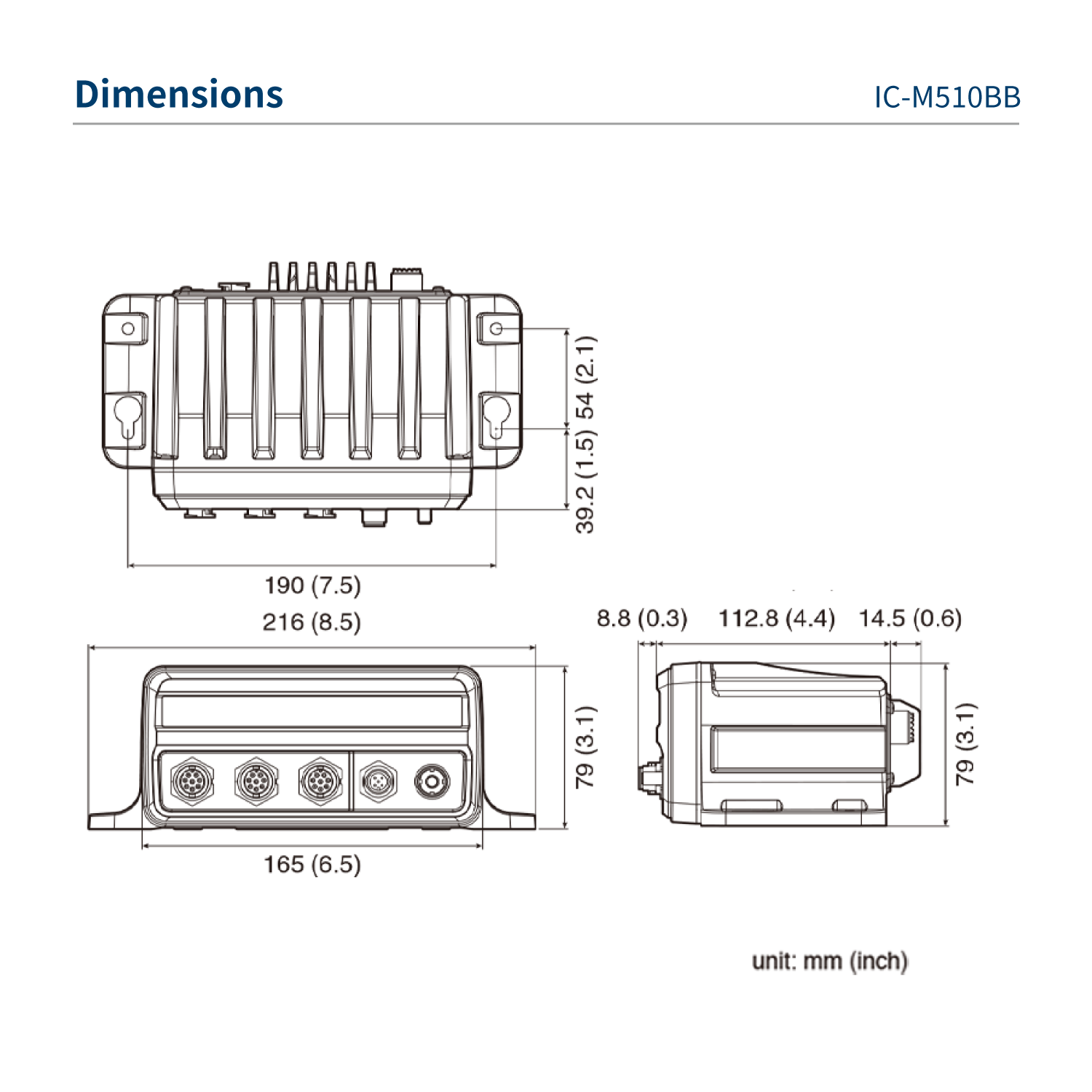

Dimensions
In the Box:
- IC-M510BB Black Box
- Commandmic, HM-195GB
- Connection cable OPC-1540 (6.1 m, 20 ft)
- Microphone hanger
- DC power cable
- Mounting base
- Connector cap
| IC-M510BB | IC-M410BB | IC-M400BB | |
|---|---|---|---|
| CommandMic™ Stations | Total 3 stations (Up to 2 options) | Total 2 stations (optional 1 station) | 1 station |
| Intercom function | Yes (One-to-one and one-to-all) |
Yes | No |
| Class D DSC & DISTRESS | Yes | Yes | Yes |
| AIS Receiver | Yes | No | No |
| Integrated GPS (GNSS) receiver | Yes (IC-M510BB EUR Version only*) |
Yes (IC-M410BB EUR Version only*) |
Yes |
| Active Noise Cancelling | Yes | Yes | Yes |
| Voice Recording & Playback | Yes | No | No |
| NMEA Interface | NMEA 2000 NMEA 0183-HS |
NMEA 2000 NMEA 0183-HS |
NMEA 0183 |
| DSC Remote Control Interface | Yes (EN 300 338-8) | No | No |
| RX Hailer and Foghorn | Yes (1-Way) | Yes (1-Way) | Yes (1-Way) |
* GPS antenna is optional with the IC-M510BB and IC-M410BB USA versions.
