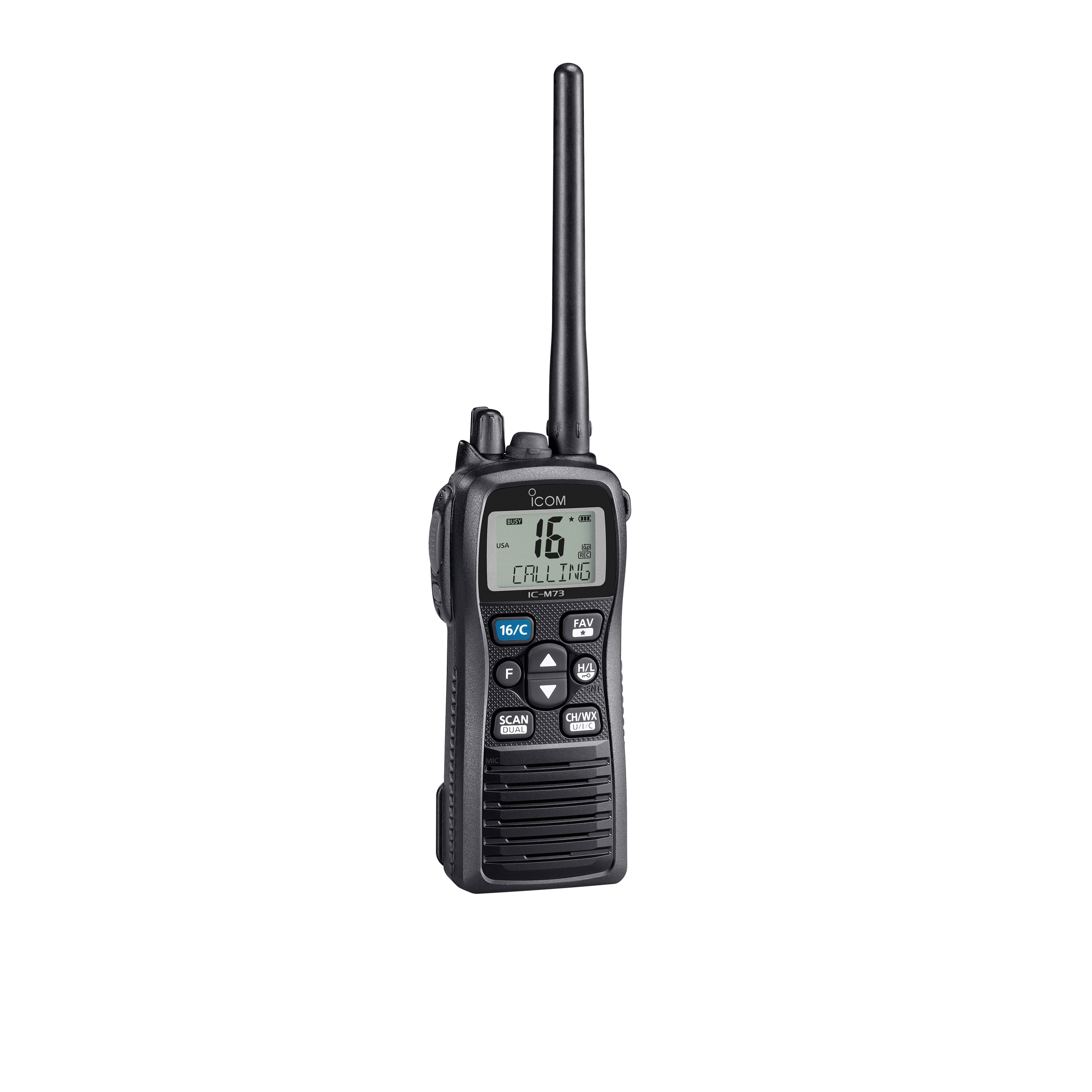

Icom IC-M73PLUS Specifications: |
|
|
General
|
|
|
Frequency range
|
Tx: 156.025–157.425MHz
Rx: 156.050–163.275MHz |
|
Usable channel groups
|
INT, USA, CAN, WX channels
|
|
Type of emission
|
16K0G3E (FM)
|
|
Operating temperature
|
–20°C to +60°C ( –4°F to +140°F)
|
|
Antenna impedance
|
50Ω
|
|
Current drain (at 7.4V DC)
|
Tx 6W output: 1.5A Rx Max. audio (Int SP/Ext SP: 450mA/250mA |
|
Dimensions (projections not incl.)
|
52.5×125×30 mm (2.07×4.92×1.18 in) |
|
Weight
|
320g; 11.3oz (With BP-245N, FA-S64V, MB-103)
|
|
Transmitter
|
|
|
Output power (Hi/Mid/Low)
|
6W/3W/1W
|
|
Max. frequency deviation
|
±5kHz
|
|
Frequency stability
|
±10ppm
|
|
Spurious emissions
|
: –68dBc typ
|
|
Adjacent channel power
|
70dB
|
|
Audio harmonic distortion
|
Less than 10% (at 60% dev.)
|
|
Residual modulation
|
40dB
|
|
Receiver
|
|
|
Sensitivity (at 12dB SINAD)
|
0.22µV typ. (at 12dB SINAD)
|
|
Squelch sensitivity
|
0.35µV typ. (at threshold)
|
|
Adjacent channel selectivity
|
70dB typ
|
|
Spurious response
|
70dB typ
|
|
Intermodulation rejection
|
70dB typ
|
|
Hum and noise ratio
|
40dB
|
|
Audio output power (at 10% distortion, 8Ω load)
|
700mW typ. (Internal SP)
350mW typ. (External SP) |
In the Box:
- IC-M73PLUS
- Cigarette lighter cable, CP-25H
- Belt clip, MB-103
- Hand strap
- AC adapter
- Battery pack, BP-245N
- Antenna, FA-S64V
