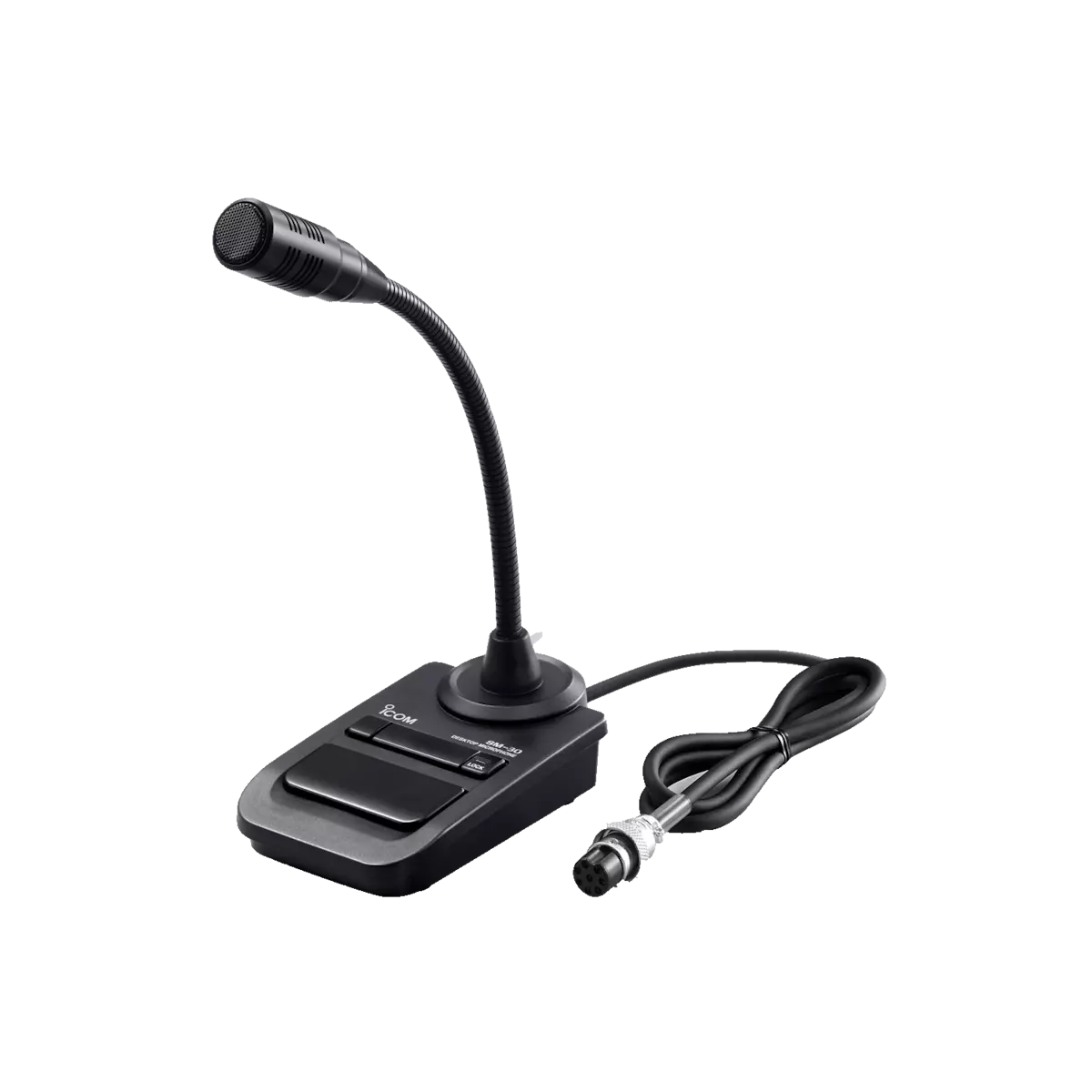

The Icom SM-30 is a compact, lightweight unidirectional electret condenser microphone. It features a selectable low cut function. The goose-neck style desktop mic has an microphone output level that can adjusted via a trimmer on the bottom of the microphone. The base has a PTT and Lock PTT switch and there is a red “PTT lock” lamp. The characteristics of the SM-30 have been optimized for SSB and FM voice communications. It has an 8 pin connector. Output impedance is 600 ohm. Operates from 8VDC which is derived from the Icom radio. The mic cable is 39 inches (1 m) long. 12.3 oz (350g).
This quality desk microphone is designed for base station operation with select Icom transceivers such as the new IC-7410. (Not for use with other brands).
The SM-30 can also be used with select Icom transceivers such as the IC-706MkIIG and IC-7000 that have a modular mic jack. In these cases you would additionally need the OPC-589 8 pin to modular mic adapter cable (sold separately).
