GPSC PN
Availability
Sale Ends
Notify Me
|
SPECIFICATIONS
|
|
|
Supply Voltage
|
10.5 - 31.2 VDC (12/24V systems)
|
|
Ethernet Ports
|
100 Base T
|
|
Max Wind Speed
|
100 knots (51 m/s)
|
|
Power Consumption (typical)
|
20W
|
|
Warranty Period
|
2 Years
|
|
Power Consumption max
|
29W
|
|
Max, Range, Scale
|
48 NM
|
|
Rotation Speed
|
Up to 60 RPM (Range Dependent)
|
|
Operating Temperature Range
|
-25° to + 55°C (-13° to +130°F)
|
|
Beam Width
|
3.9° H nonminal (-3dB) 2° with target separation on high x 22° V
|
|
Weight
|
6.75 kg (14.9 lbs) without cable
|
|
Min Range, Scale
|
50 m / 200 ft / 50 yd
|
|
Dimensions Diameter
|
610mm (24")
|
|
Demensions W x H x D
|
610mm dia x 225 mm H. (24" dia x 8.9" H)
|
|
Recommended Fuse Rating
|
5A
|
|
Humidity
|
95% RH at 35°C (95°F)
|
|
Approvals Compliance
|
FCC, Part 47 CFR 80 and 90: RED, Article 3 of Directive 99/5/EC: CE: EN, EN302-248 V2.1.1: Industry Canada, RSS238: RCM (C-Tick): IEC60945 Sec 9.2,9.3, 10.3-10.9, 11.2: IEC60950 Electrical Safety
|
|
Radar Modes
|
Harbour, Offshore, Weather, Bird Dual Range, North Up Course Up, Relative motion, True Motion
|
|
Waterproofrating
|
IPX6
|
|
Interface
|
Lowrance MFD
|
|
Radar Technology
|
Pulse Compression
|
Package includes:

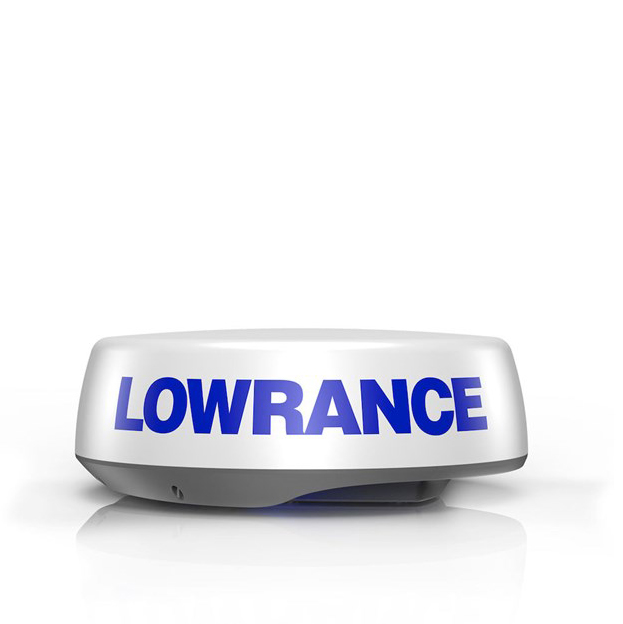

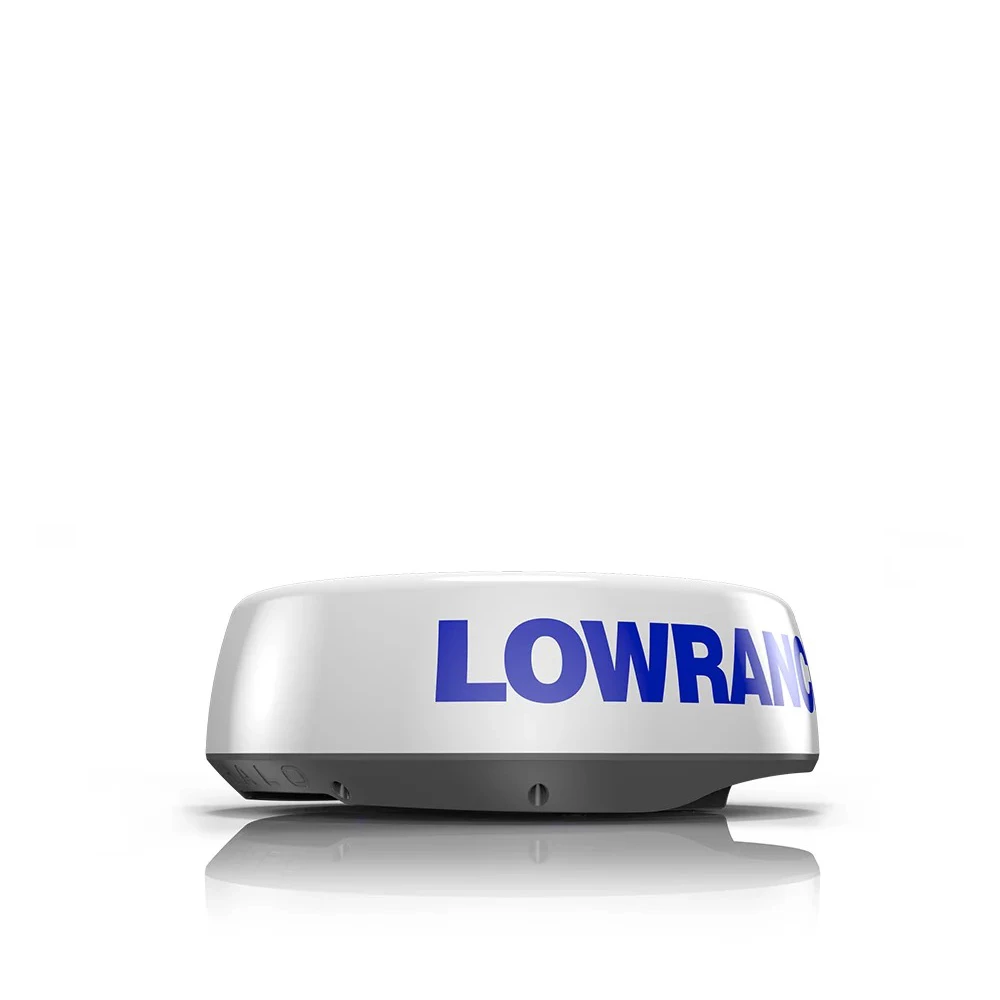

- HALO24 Radar
- 5m cable for HALO Dome Radar / Nemesis
- Cable, RJ45 To 5 Pin,1.5m
- RJ45 Waterproofing Boot
