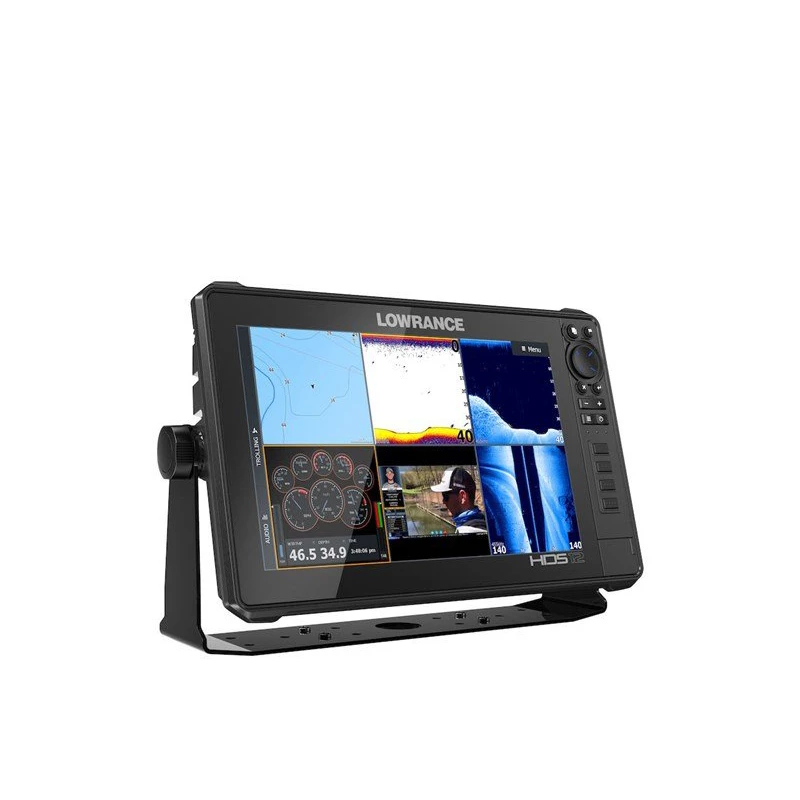

Lowrance HDS 12 Live with No Transducer

Name: Lowrance HDS Carbon 7 Fishfinder/Chartplotter - GPSCentral.ca
Brand: Lowrance
SKU: 13527
Availability: OutOfStock

MPN: 000-14427-001

This item has been discontinued. No longer available.

SKU: 13527 Category: Discontinued

Rig your boat with an HDS LIVE 12 and get access to the top fishfinding innovations with support for Active Imaging™, LiveSight™ real-time sonar, StructureScan® 3D with Active Imaging and Genesis Live onscreen mapping, plus the capability to view data in a six-panel splitscreen.

With HDS LIVE, we took the most popular fishfinder series on the professional fishing circuit and made it even better for all anglers with a sleek, new design, faster processor, best-ever built-in suite of HDS navigation tools and support for a wide array of new fishfinding technology, unmatched by any other fishfinder.

Prepare yourself for a new level of fishfinding performance with HDS LIVE, which includes built-in Lowrance® CHIRP sonar, support for Active Imaging™, StructureScan® 3D with Active Imaging and revolutionary LiveSight™ Real-Time Sonar. Equipped with the best set of navigation tools ever built into a fishfinder/chartplotter display, HDS LIVE features preloaded C-MAP® US Enhanced Inland and Coastal mapping, automatic routing support and new Genesis Live onscreen mapping offering precision real-time mapping, down to ½-foot contours.

Key features of HDS 12 Live

Active Imaging™ 3-in-1 (CHIRP/Side/Down) sonar ready
Active Imaging™ 2-in-1 (Side/Down) sonar ready
StructureScan® 3D with Active Imaging enhancements
LiveSight real-time sonar compatible – Coming Spring 2019
Smartphone notifications
Powerful quad-core processor
High-performance dual-core processor
Programmable keys
C-MAP Genesis Live onscreen mapping
FishReveal™ Smart Target View
Six-panel, splitscreen capability
High-resolution SolarMAX™ HD multi-touch screen
Preloaded high-detail C-MAP® US Enhanced charts with 1-foot contours on 4,000 lakes
C-MAP Easy Routing, Navionics Autorouting capability
Dual-Channel CHIRP – dual sonar-range coverage from the same transducer
Live Network Sonar
SiriusXM® Marine Weather and Audio compatible
Wireless and Bluetooth® connectivity
Heat Map Chart Overlay
Enhanced Surface Clarity
Quick Access Control Bar
Touchscreen control of MotorGuide® Xi5 Trolling Motor , Outboard Pilot and Power Pole® anchors
Radar and SonicHub®2 audio server connectivity
NMEA 2000® engine support
Optional mapping upgrades include C-MAP, Navionics® and more

Weight	10.8 lbs
Dimensions	15.25 × 11.5 × 9.75 in
Brand	Lowrance
Manufacturer Part Number	000-14427-001

Product Videos

Product Specifications

Lowrance HDS 12 Live Specifications
Screen Brightness	>1200 Nits
Update rate	10 Hz
Weather	SiriusXM via WM-3 (USA only)
GPS	10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
Shock Vibration	100,000 cycles of 20 G
Compass Safe	12″ (300mm)
Display Resolution	1280 x 800
Supply Voltage	12 v DC (10.8-17VDC)
GPS Receiver Channels	16
Ethernet Ports	1x 100 Mbit, 6 max MFD’s on a network
NMEA 2000 Connectivity	1x Micro-C
SD Card Storage	2 micro SD cards up to 32GB
Warranty Period	2 Year + 3 additional years of upgrade options totaling 5 years
Power Consumption typical	2.3A @ 13VDC with Full Backlight, Sonar on
Power Consumption min	2.3A @ 13VDC with Full Backlight, Sonar on
Power Consumption max	3.6A @ 13VDC with Full Backlight, Sonar on
Position Accuracy	20m RMS
Weight	4.14lb (2.00kg)
Waypoints, Routes, Tracks	3000 Waypoints, 100 Routes, 100 Trails with up to 10,000 points per trail
Time to First Fix	30s
Storage Temperature Range	4°F to 140°F (-20°C to 60°C )
Radar compatibility	4G (Broadband) 3G (Broadband) Halo24 (Pulse Compression Dome Radar) Halo 3’/4’/6′ (Open Array Pulse Compression Radar)
Dimensions W x H x D	9.00in (228.5mm) x 13.682in (347.5mm) x 3.26in (82.9mm)
Operating Temperature Range	5°F to 131°F (-15°C to 55°C )
Recommended Fuse Rating	5A
Humidity	60°C, 95% relative humidity (RH) for 18 hours
Internal Storage	8.0 GB Internal
Viewing Angles	80° top/bottom, 80° left/right
AIS	AIS Chart and Radar overlay. Target vessel details
Charts supported	C-MAP (MAX N, MAX N+), C-MAP Genesis, C-MAP Precision Contour HD (AMER ONLY), Navionics (Gold, NAV+ Platinum+) Insight (Pro and HD) Lowrance Regional Mapping Partners
Cartography included	C-MAP US Enhanced Basemap (AMER models), C-MAP World Background (ROW models), Navionics basemap (AMER and ROW models)
Steering Modes	Course, Heading, Waypoint, Power Steer
Maneuvers Turn Patterns	Course, Heading, Waypoint, Power Steer, U-Turn, C-Turn, Spiral, Zigzag, Square, Lazy-S
Digital Switching	Czone, Naviop
Correction	DGPS, WAAS
Approvals Compliance	FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM
Mounting Type	Gimbal Bracket Front Dash Flush Mount Rear Dash Flush Mount
Bluetooth	Integrated Bluetooth 4.0 with support for Bluetooth Classic
Sonar Compatibility	Integrated: CHIRP Broadband Active Imaging DownScan Active Imaging SideScan Compatible with: SonarHub StructureScan StructureScan3D
Item Connectivity WiFi	Internal 802.11b/g/n and Compatible with WiFi-1 Module
Waterproof rating	IPX7 with card door closed
PC Connectivity	None
Autopilot	Outboard Pilot MotorGuide Xi5/Xi3 Trolling Motor * *requires Motorguide PinPoint Gateway
Video	Output: No Input: Composite video RCA – single channel via optional adaptor
Backlight Color	Pure White LED
Weather	SiriusXM via WM-3 (USA only)
Multimedia	SonicHub SonicHub2 FusionLink products any NMEA 2000 compliant Marine Audio products
Interface	Touchscreen: Full Multi-touch touchscreen Keypad: 8-way directional keypad Zoom +/- Exit Enter Menu Waypoint Power/Light
NMEA 0183 Sentences supported	TX / RX – GPSReceive GGA GLL GSA GSV VTG ZDATransmit GGA GLL GSA GSV VTG ZDA GLCTX / RX – NavigationReceive RMCTransmit AAM APB BOD BWC BWR RMC RMB XTE XDRTX / RX – SonarReceive DBT DPT MTW VLW VHMTransmit DBT DPT MTW VLW VHMTX / RX – CompassReceive HDG HDT HDMTransmit HDGTX / RX – WindReceive MWV MWDTransmit MWV MWDTX / RX – AIS / DSCReceive DSC DSE VDMAIS sentences are not bridged to or from NMEA 2000
