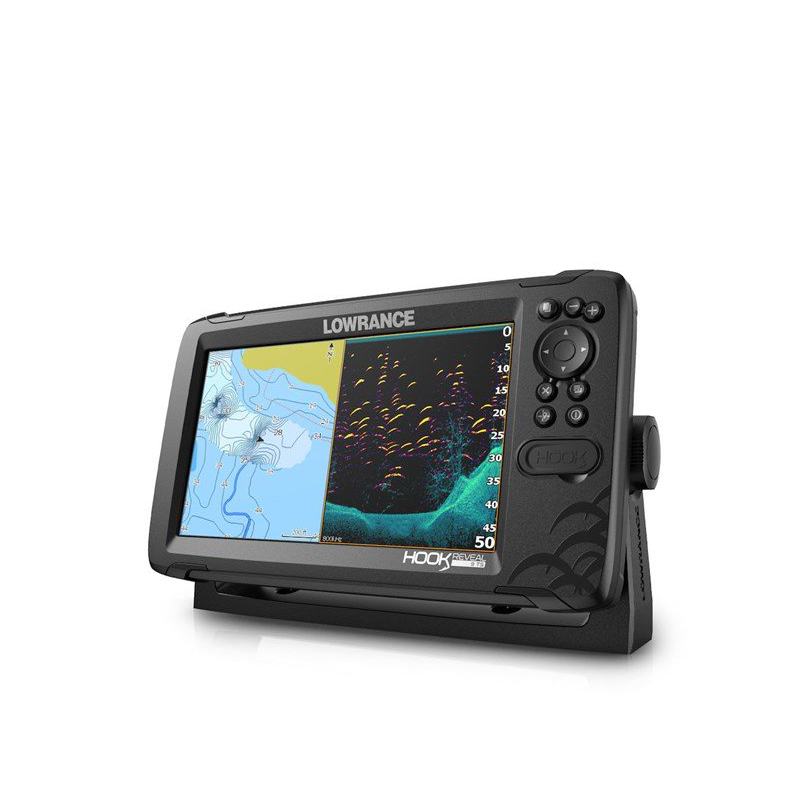

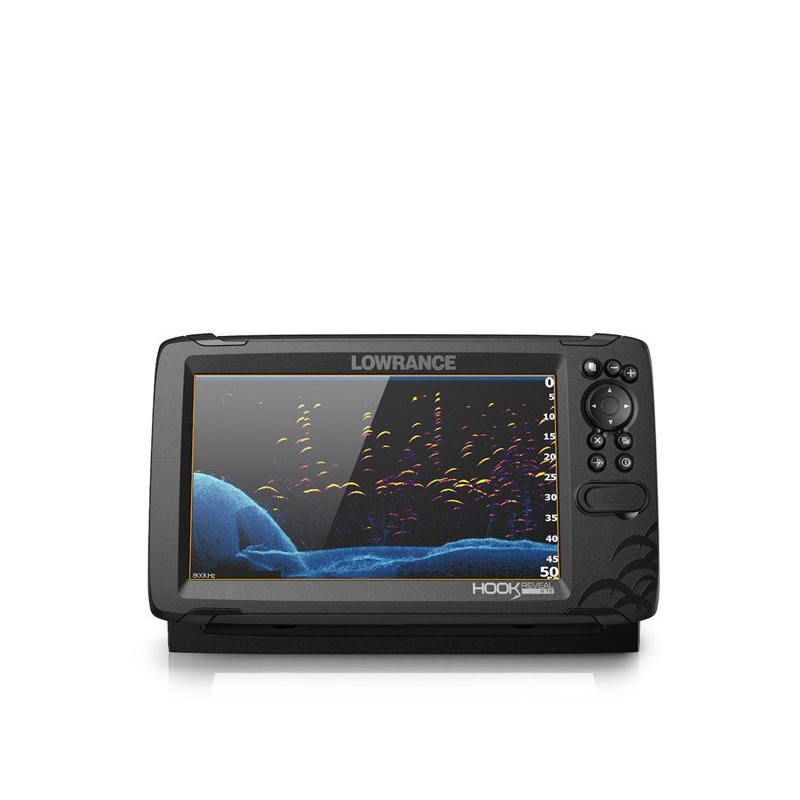

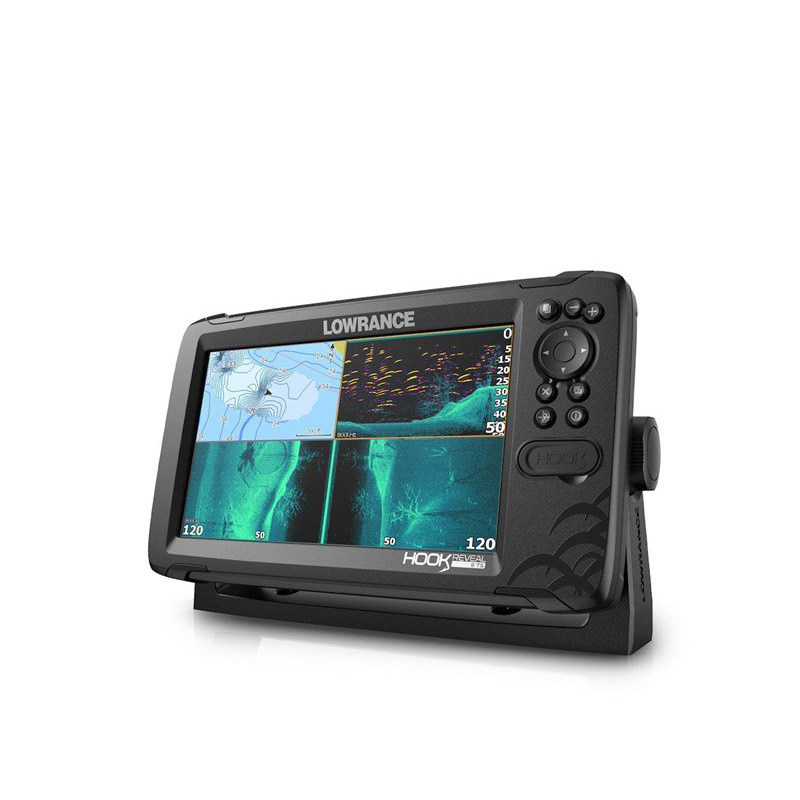

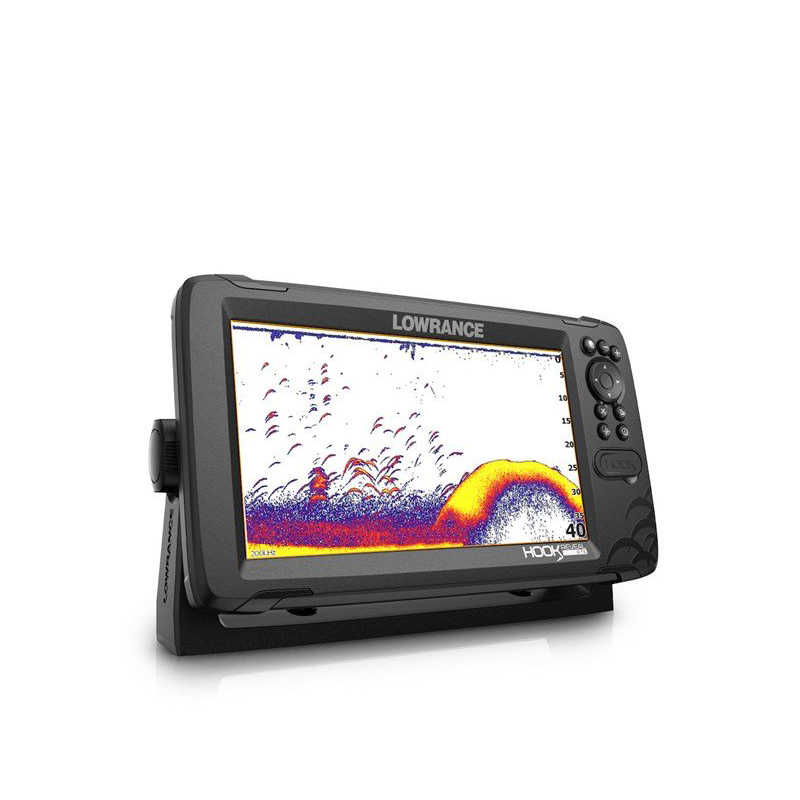

Lowrance HOOK Reveal 9 with TripleShot Transducer
MPN: 000-15851-001
$899.99
The all-new HOOK Reveal makes fishing easier, delivering powerful performance with proven fish-finding tools including, Autotuning Sonar,DownScan Imaging™ and now FishReveal.
In stock
This item: Lowrance HOOK Reveal 9 with TripleShot Transducer
In stock
$899.99
$899.99
- Description
- Additional information
- Product Video
- Specifications
- Package Includes
- Documentation
- Accessories
The all-new HOOK Reveal makes fishing easier, delivering powerful performance with proven fish-finding tools including, Autotuning Sonar, DownScan Imaging™ and now FishReveal™, which makes fish easier to see by combining the benefits of Lowrance CHIRP sonar and DownScan Imaging™ on one screen. Whether you’re fishing a local spot or unfamiliar water, find the best fishing areas with US/Canada mapping or map uncharted water – in real time – with Genesis Live.
Key Features:
- FishReveal™- See fish light up on screen with FishReveal, combining the target separation of Lowrance CHIRP sonar with picture perfect DownScan Imaging views of structure and baitfish.
- Genesis Live Real-Time Mapping – Create custom ½-foot contour maps of your local lake or uncharted water – in real time – on the display of your HOOK Reveal with Genesis Live.
- Autotuning sonar – Spend more time fishing and less time reworking your sonar settings with HOOK Reveal Autotuning sonar, which ensures you get the best sonar image every time by automatically adjusting settings as fishing conditions change
- Double the sonar coverage of other fishfinders
- TripleShot High CHIRP Sonar with SideScan and DownScan Imaging – Perfect for anglers who want all their sonar from a single transducer, TripleShot features the fish-finding capability of wide-angle high CHIRP sonar and the high-resolution images of fish-holding structure from SideScan and DownScan Imaging.
- SolarMAX™ Display – Enjoy crisp and clear views of your display no matter the conditions – even in direct sunlight – with excellent clarity and daylight visibility of HOOK Reveal’s SolarMAX display.
- New fish-finding color palettes
- Optimized keypad with one-touch access to key features
- Mapping options include C-MAP, C-MAP Genesis, Navionics® and more
- microSD card slot
- Easy front-dash or gimbal-bracket mount
| Weight | 5.55 lbs |
|---|---|
| Dimensions | 12.5 × 9 × 9.25 in |
| Brand | Lowrance |
Product Video
Specifications
Lowrance HOOK Reveal 9 Specs
Display
- Backlight Color: Pure White LED
- Display Resolution: 800 x 480
- Screen Brightness: >1000 NITS
- Viewing Angles: 80° top/bottom, 85° left/right
Connectivity
- SD Card Storage: Micro SD Card (32 gb Max)
Approvals
- Approvals Compliance: FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM
Electrical
- Power Consumption max: 1.50A @ 13VDC with backlight on full
- Power Consumption min: 1.50A @ 13VDC with backlight on full
- Power Consumption typical: 1.50A @ 13VDC with backlight on full
- Recommended Fuse Rating: 5A
- Supply Voltage: 12v DC (10.8-17VDC)
Environment
- Humidity: 60°C, 95% relative humidity (RH) for 18 hours
- Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
- Shock Vibration: 100,000 cycles of 20 G
- Storage Temperature Range: 4°F to 140°F (-20°C to 60°C )
- Waterproof rating: IPX7 with card door closed
GPS
- Correction: DGPS, WAAS
- Time to First Fix: 30s
MFD
- Cartography included: dependent on version selected
- GPS: 1 Hz GPS GLONASS WAAS EGNOS MSAS
- Sonar Compatibility: Integrated: CHIRP Broadband DownScan SideScan
- Waypoints, Routes, Tracks: 3000 Waypoints 100 Routes 100 Trails
Physical
- Compass Safe: 12″ (300mm)
- Dimensions W x H x D: 10.92″ (277.3 mm) x 6.90 (175.2 mm) x 4.42″ (112.3 mm)
- Mounting Type: Gimbal Bracket Front Dash Flush Mount
- Weight: 1.90 lb (0.86 kg)
Other
- Interface: Keypad: 8-way directional keypad Zoom +/- Exit Enter/Menu Waypoint/Cursor Power/Light Pages
Package Includes
In the Box:
- HOOK Reveal 9
- TripleShot Transducer
- C-Map Contour
- Gimbal Bracket and Knobs
- Power Cable
- Corner Clips
