Home / Radios / Radio Accessories / Amateur Accessories / Tuners

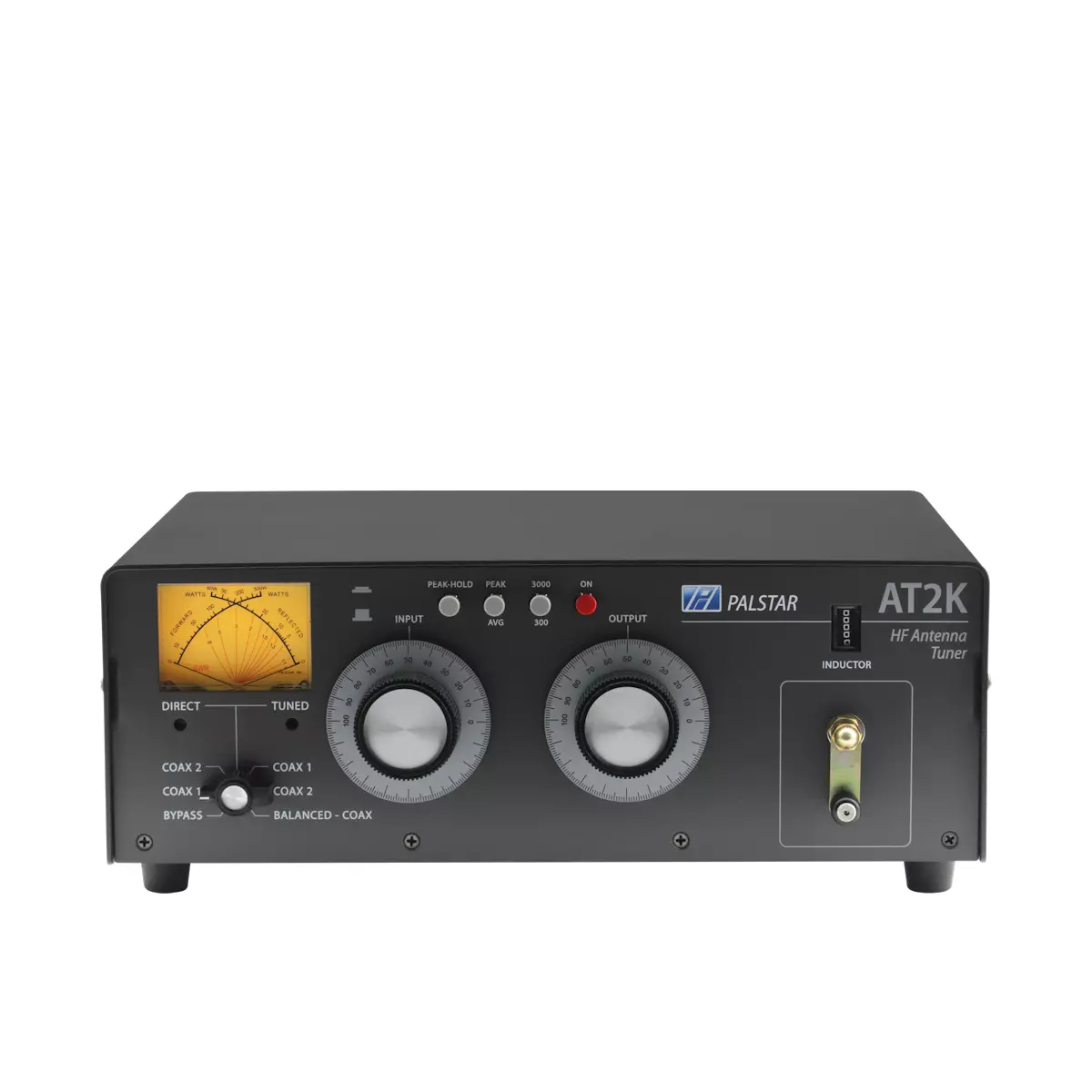

Palstar AT2K 2000W Antenna Tuner

MPN: PAL-AT2K
MPN:

$1,050.00

Out of Stock (On Order)

SKU: 8094 Category: Tuners
Browse Another Category
  • New Arrivals
  • Automotive GPS
  • Aviation GPS
  • Fitness & Wearables
  • GNSS & GIS
  • GPS Accessories
  • GPS/OEM Sensors & Receivers
  • Handhelds
  • Marine
  • Tracking
  • Radios
    • 2-Way Radios
    • Amateur Radios
    • Avionic Radios
    • CB Radios
    • Commercial Radios
    • Marine Radios
    • Scanners
    • Shortwave Radios
    • Radio Accessories
      • Amateur Accessories
        • Adapters
        • Amplifiers
        • Cables
        • Connectors
        • Headsets & Speakers
        • Mounts & Brackets
        • Microphones
        • Power Supplies
        • Programming Software
        • Tuners
        • Various
      • Amateur Antennas
      • Amateur Books
      • CB Antennas
      • CB Accessories
    • Weather Radios
  • Metal Detecting
  • Outdoors
  • On Sale
  • Gift Certificates
  • Warranties
  • Discontinued
  • Description
  • Additional information
  • Specifications
  • Product Guides & Documentation

The AT2K 2000 watt antenna tuner covers 160 to 6 Meters with a power rating of up to 2000 watts PEP and features a newly-designed, smaller roller inductor allowing the AT2K to tune 6 Meters without the need for the additional red button as on older models. The updated design for the capacitors features lower minimum capacitance for improved high band performance, while maximum capacitance has been increased to 400pF for better low band performance.

The AT2K matches dipoles, center fed doublets, Verticals, end-fed wire, delta loops, beams, Windoms, Inverted V’s and an optional external 4:1 or 1:1 current balun for balanced wire feeders can be purchased during check-out. Featuring a 6 position antenna selector switch, the AT2K offers forward power metering in two ranges, 300 and 3000 watts.

Also included is Palstar’s Active Peak and Peak Hold dual cross-needle metering from the popular PM2000A wattmeter. Standing Wave Ratio measurements are displayed with an illuminated cross-needle meter. SWR is read directly from the meter face where the Forward and Reverse needles cross.

Add 11 Ga. (.090″ thick) iridite-treated aluminum metalwork and durable powder coated finish on the front panel and top cover, and you have the AT2K, a premium quality antenna tuner.

Manufacturer Part Number PAL-AT2K

Specifications

Palstar AT2K Specifications

Output Power:
2000 Watts PEP
HF Bands:
160m to 6m (assuming resistive load)
Tuning:
Three controls
Antenna switching:
6 position mode switch for multiple antennas
Capacitor:
low minimum custom variable capacitor; 15pF – 400pF@4.5 kV
Roller inductor:
silver-plated inductor wheel shaft and contact wheel on ceramic body
Impedance:
matching range 15 Ohms to 1500 Ohms
Metering:
Active crossneedle Peak/Peak Hold with backlighting
Meter power range:
0-300 Watts/
0-3000 Watts
Power Input:
12 VDC 200 mA
Power cable supplied
Requires power supply
Balun:
Optional external 1:1 or 4:1 current
Chassis:
.090 ga. aluminum gold iridite coated
Top cover:
.090 ga. aluminium powder coated
Front cover:
.090 ga. aluminium powder coated
Dimensions:
14.5″ wide x 5″ high x 13.5″ deep
Shipping weight:
14 lbs

Product Guides & Documentation

  • Palstar AT2K Watt Antenna Tuner Technical Manual
