No-Drill™ Laptop Mount for the Chevrolet Silverado 1500 Work Truck with 40/20/40 bench seat ONLY (2014-15)

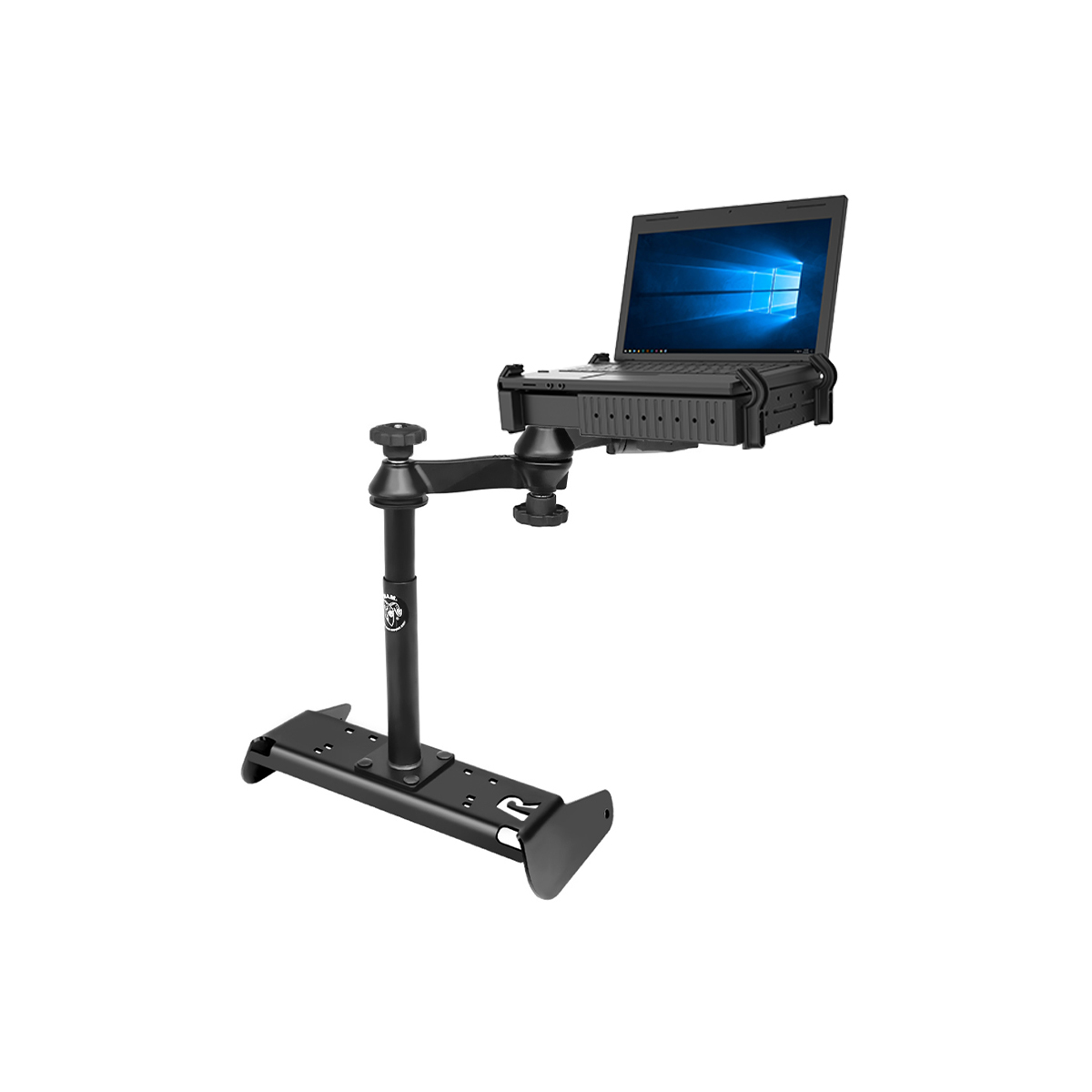

This No-Drill™ Laptop Stand System installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12 to 18 inches. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation. The RAM Tough-Tray™ is spring loaded to accommodate 10″ to 16″ wide laptops & (17″ wide screens). The tray features four adjustable retaining arms with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS or other electronics.
- Chevrolet Silverado 1500 Work Truck with 40/20/40 bench seat ONLY (2014-2015)
- Assembly Hardware
- Foot Stabilizer
- (2) M10-1.5 x 60mm Hex Bolts
- (2) 1.68″ Stand-Offs
- (2) 3/8″ Fender Washers
- 18.0 lbs.
Placement of Mount:
- Across Transmission Hump
- No – uses existing console bolts on vehicles
- Bucket/Bench. Base will not work in vehicles with full console that extends up to dash.
- High Strength Composite and Powder Coated Steel
Notes: *The RAM-VB-191-SW1 is recommended for the 2014 Chevrolet Silverado 1500 with 40/20/40 bench seat and no pass through console. For all other Chevrolet Silverado 1500 models refer to the RAM-VB-193-SW1. If the Tough-Tray™ Laptop Cradle is intended to hold a laptop or device while the vehicle is in motion, we recommend the Secure-N-Motion™ kit. This base may not work with the factory installed center console or with 4WD or manual transmission levers that are on the floor. Some models may have factory installed accessories that prevent installation. This base is designed to be installed over the transmission hump. Full length consoles will prevent installation.
