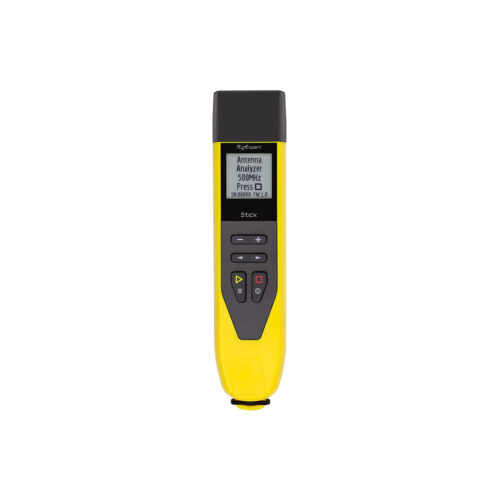

RigExpert STICK 500 UHF Analyzer

MPN: STICK-500

$550.00

Stick 500 is an antenna and cable vector analyzer. The analyzer allows you to measure various parameters of antennas, cables, lines, filters, and many others in the frequency range from 100 kHz to 500 MHz.

Out of Stock (On Order)

SKU: RIG-STICK500 Categories: ,

UHF IN YOUR POCKET

Analyzer Stick 500 became the third member of the Stick family that is well known to connoisseurs of high technology and the incredible comfort of using. No matter the time, place, or weather.

The UHF analyzer is designed for measuring the standing wave ratio (SWR) and return loss, amplitude, and phase angle, as well as the value of active (R) and reactive (X) resistances, considering the sign, inductance (L) and capacitance (C) in parallel and series modes of antennas, cables, lines, filters and other systems in the range of 0,1 MHz to 500 MHz.

Like all Stick analyzers, it is capable of 16 hours of continuous measurements without battery recharging.

Smart, fast, handy, and even more powerful. At any time, place, and in any weather.

The main parameters of the Stick 500 Analyzer:

    • Operating frequency: 100 kHz – 500 MHz
    • Size: 185 * 40 * 33 mm (7,3 in x 1,6 in x 1,3 in)
    • Weight: 185 grams (6.5 Oz) (unpacked, with battery installed)

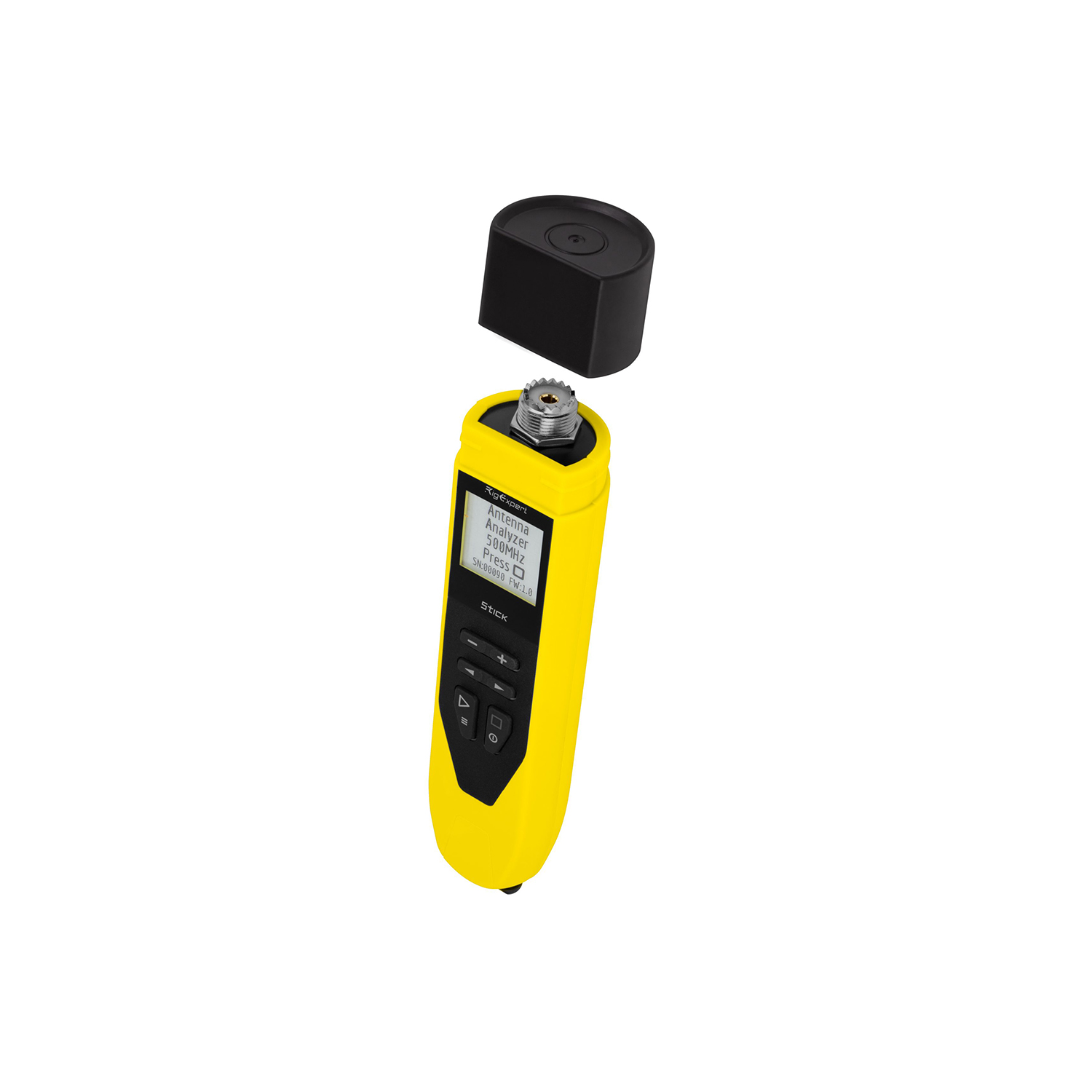

    • Type of antenna connector: SO-239
    • Number of Enter Keys: 6
  • Display: high contrast E Ink display, 200 * 200 pixels.
  • Type of battery used: Li-ion 18650 (included)
  • PC Connector Type: USB 2.0 Type-C
  • Charging Port Type: USB Type-C
  • Bluetooth Availability: Yes, Bluetooth ver. 4.2 BLE Single-mode, Class B
  • Battery Charge Time: 3 hours.
  • RF Power: -10 dBm (at 50 Ohm load)
  • Minimum frequency step: 1 kHz
  • Operating temperature: -15°…40 °C (5…104 °F)
Weight0.62 lbs
Dimensions8.5 × 2.5 × 2 in
Brand

RigExpert

Manufacturer Part NumberSTICK-500

Specifications

RigExpert Stick 500 Specs

Frequency range: from 0.1 to 500 MHz
Frequency input step: 1 kHz
Measurements for 25, 50, 75, 100, 150, 200, 300, 450, and 600 Ohm systems
SWR measurement range: from 1 to 100 in digital mode, from 1 to 10 in graph modes
Range R and X: 0… 10000, -10000… 10000

Operating modes:
SWR, Return loss, R, X, Z, L, C, magnitude, and phase angle at one frequency.
SWR chart, 100 points.
Multé mode – for quick testing of a multi-band antenna.

HF output:
Connector type: UHF (SO-239).
Output signal shape: square, from 0.1 to 500 MHz.
Output power: -10 dBm (at a load of 50 Ohms).

Power:
One lithium-ion battery 3.7 V type 18650
When the analyzer is connected to a PC or DC adapter with a USB connector, it receives power from these sources

Interface:
High contrast E Ink display with a size of 200 × 200
2 × 3 keys on the waterproof keyboard
English menu and help screens
USB connection to a personal computer

Bluetooth: v.4.2 BLE Single Mode, Class B
Dimensions: 185 mm x 40 mm x 33 mm (7.3 inches x 1.6 inches x 1.3 inches)
Operating temperature: -15° … 40 ° C (5 … 104 ° F)
Weight: 185 g (6.5 ounces) with battery
Warranty: 2 years
GTIN-13: 4820185420358

RigExpert Stick is made in Ukraine.

* All specifications are subject to change without notice or obligation.

Package Includes

In the Box:

  • RigExpert Stick 500 antenna analyzer (with a Li-ion battery type 18650)
  • Quick start guide
  • Lanyard
  • USB cable
