RIGrunner 4005 Horizontal

MPN: 58312-1040
MPN:

$132.00

In stock

SKU: 7497 Categories: Power Supplies, Radio Accessories
Browse Another Category
  • New Arrivals
  • Automotive GPS
  • Aviation GPS
  • Fitness & Wearables
  • GNSS & GIS
  • GPS Accessories
  • GPS/OEM Sensors & Receivers
  • Handhelds
  • Marine
  • Tracking
  • Radios
    • 2-Way Radios
    • Amateur Radios
    • Avionic Radios
    • CB Radios
    • Commercial Radios
    • Marine Radios
    • Scanners
    • Shortwave Radios
    • Radio Accessories
      • Amateur Accessories
      • Amateur Antennas
      • Amateur Books
      • CB Antennas
      • CB Accessories
    • Weather Radios
  • Metal Detecting
  • Outdoors
  • On Sale
  • Gift Certificates
  • Warranties
  • Discontinued
  • Description
  • Additional information
  • Specifications
  • Package Includes
  • Documentation
  • Accessories

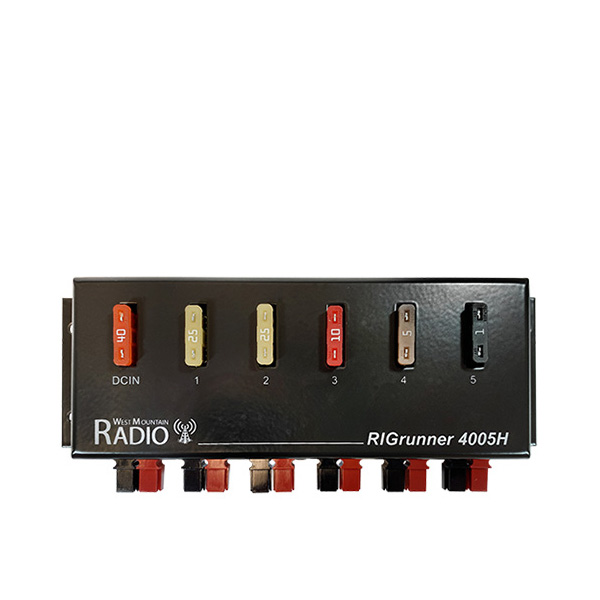

RIGrunner 4005H Features

RIGrunner is the most convenient and safest way to connect all of your DC equipment to a power source. It uses the excellent Anderson Powerpole connectors, standardizing all of your DC connections. This RIGrunner can deliver up to 40 amps total through 5 outlets and is available with side mounted Powerpole® connectors. Side mounted connectors enable horizontal mounting.

  • 40 amp continuous duty with 5 outlets

Construction

  • Built in USA to IPC-610 commercial manufacturing standards by an ISO9002 facility.
  • Printed circuit board .062 FR4 material, extra heavy 3oz. copper, with greater than 1″ wide high current traces.
  • Double sided, plated through holes, solder mask over bare copper, silk screened commercial grade printed circuit board.
  • Enclosure: .062 aluminum, with attractive and extremely durable powder coat painting and clear silk screen labels.
  • Power connectors: exclusively Anderson Power Products® Powerpole®.
  • Connectors are arranged according to the ARES/RACES standard (see our links).
  • Fuses installed are standard ATC/ATO automotive fuses available in 10 values from 1 to 40 Amps.
  • Stainless steel hardware with PEM™ threaded mounting standoffs.
Manufacturer Part Number 58312-1040

Specifications

Specifications
Overall Dimensions (maximum, w/o cables)
1.4″ H x 7 ” W x 3.0″ D
Weight
6 3/4 oz
Maximum total current
40 amps
Maximum single individual outlet current
40 amps (fuse protected)
ICAS current rating (fuse limited)
37 amps

Package Includes

Package includes:

  • RIGrunner 4005H
  • (6) Retention clips
  • Owner’s Manual

Documentation

  • RIGrunner 4005H User Manual
