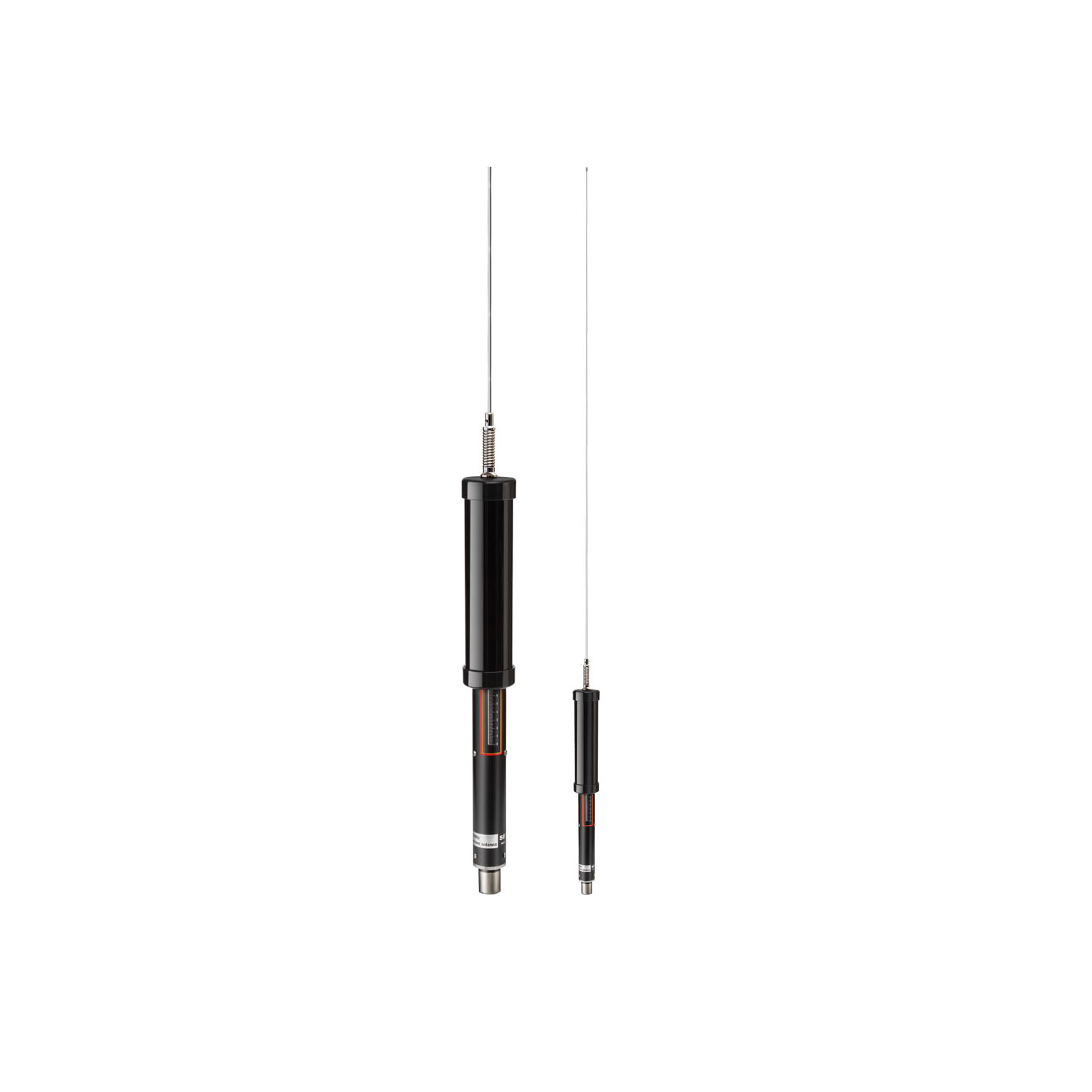

Diamond Antenna SD330 HF Screwdriver Mobile Antenna
MPN: SD330
$630.00
Please note: Due to the size of this antenna, additional shipping charges will apply.
In stock
Please note: Due to the size of this antenna, additional shipping charges will apply.
NOTE: The SD330 uses the car body for its ground. The bracket and the car body need to be well grounded.
Comes with OPE750 for tuning 7-50MHz. OPE750 is 17″ shorter than original element. To change the element, you only need to loosen one se screw
| Weight | 3.62 lbs |
|---|---|
| Dimensions | 48 × 2.5 × 2.5 in |
Product Specification
| Specifications: | |
|
Bands:
|
3.5 – 30MHz |
| Power Supply voltage & current: | DC 12v 100mA |
| Max Power Rating: | 200W (SSB) |
| Height: | Approx. 66″ (28 MHz) Approx. 73″ (3.5 MHz) |
| Weight: | 1.1kg |
| Connector: | UHF |
| Type: | 1/4l center loading |
| VSWR: | Less than 2.0 / Impedance: 50Ω |
|
Up-down time:
|
Approx. 50 sec. (3.5-30Mhz ) Approx 20 sec. (7-30MHz) |
Product Guides & Documentation
