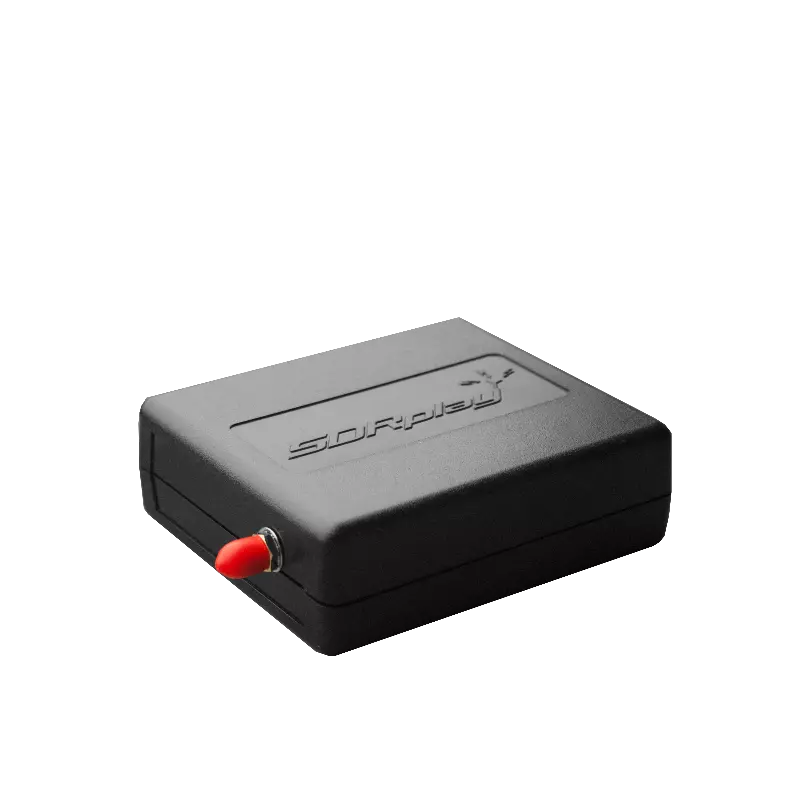

SDRplay RSP1A
MPN: RSP1A
MPN:
$159.99
The SDRplay RSP1A is a major upgrade to the popular RSP1—it is a powerful wideband full featured 14-bit SDR which covers the RF spectrum from 1kHz to 2GHz.
In stock
SKU: 12309
Categories: Amateur Radios, Modems
Radio Spectrum Processor – 14-bit SDR
The SDRplay RSP1A is a major upgrade to the popular RSP1—it is a powerful wideband full featured 14-bit SDR which covers the RF spectrum from 1kHz to 2GHz. All it needs is a PC and an antenna to provide excellent communications receiver functionality. Combined with the power of readily available SDR receiver software (including ‘SDRuno’ supplied by SDRplay) you can monitor up to 10MHz of spectrum at a time. Documented API allows developers to create new demodulators or applications around the platform.
Key Features
• Continuous coverage from 1kHz to 2GHz
• Up to 10MHz visible bandwidth
• Powers over the USB cable with a simple type B socket
• 14-bit ADC silicon technology (not another 8 bit dongle!)
• 11 high-selectivity, built in front-end preselection filters
• Software selectable AM/FM and DAB broadcast band notch filters
• Software selectable multi-level Low Noise Preamplifier
• Bias -T power supply for powering antenna-mounted LNA
• RF shielding layer inside case
• SDRuno—World Class SDR software for Windows
• Documented API for new apps development
• Single SMA antenna socket covering entire frequency range
Key Benefits
• Covers all frequencies from 1kHz through LF, MW, HF, VHF, UHF and L-band to 2GHz, with no gaps
• Excellent dynamic range for challenging reception conditions
• Low levels of spurious responses
• Works with all the popular SDR software (including HDSDR, SDR Console, Cubic SDR and SDRuno)
• ExtIO based plugin available
• Software upgradeable for future standards
• Strong and growing software support network
• API provided to allow demodulator or application development
• Multiplatform driver and API support including Windows, Linux, Mac, Android and Raspberry Pi 2/3
• Up to 16 individual receivers in any 10MHz slice of spectrum using SDRuno
• Calibrated S meter and power measurements with SDRuno
• Ideal for monitoring of ISM/ IoT/ Telemetry bands <2GHz
• Ideal for portable operation
| Weight | 0.26 lbs |
|---|---|
| Dimensions | 4.25 × 1.25 × 3.5 in |
| Manufacturer Part Number | RSP1A |
Product Specifications
SDRplay RSP1A Specifications
General
• Weight 110g
• Size: 95mm x 80mm x 30mm
• Low Current: 185 mA (excl bias T)
Connectivity
• Single 50Ω RF connector (SMA)
• USB 2.0 (high speed) type B socket
Frequency Range
• Continuous coverage 1kHz – 2GHz
• Frequency Tolerance: 0.5ppm (max)
ADC Characteristics
• Sample frequency 2MSPS – 10.66MSPS
• 14 bit native ADC (2 – 6.048MSPS)
• 12-bit (6.048- 8.064 MSPS)
• 10-bit (8.064- 9.216MSPS)
• 8-bit (> 9.216 MSPS )
Bias T
• Software Selectable 4.7V @ 100mA
Reference
• High Stability 0.5PPM TCXO
• In-field trimmable to 0.01ppm.
Maximum recommended input power
• 0dBm continuous, 10dBm for short periods
Typical Noise Figures
• 18dB @ 2MHz
• 15dB @ 12MHz
• 15dB @ 25MHz
• 15dB @ 40MHz
• 3.3dB @ 100MHz
• 3.3dB @ 200MHz
• 7.7dB @ 386MHz
• 3.6dB @ 660MHz
• 5.0dB @ 1500MHz
• 6.3dB @ 1800MHz
IF Modes
• Zero IF, All IF bandwidths
• Low IF, IF bandwidths ≤ 1.536MHz
IF Bandwidths (3dB)
• 200kHz
• 300kHz
• 600kHz
• 1.536MHz
• 5.0 MHz
• 6.0 MHz
• 7.0 MHz
• 8.0 MHz
Front End Filtering
Automatically configured front end filtering
Low Pass: 2MHz
Band Pass
• 2-12MHz
• 12-30MHz
• 30-60MHz
• 60-120MHz
• 120-250MHz
• 250-300MHz
• 300-380MHz
• 380-420MHz
• 420-1000MHz
High Pass: 1000MHz
Notch Filters
• FM Filter: >50dB 85 – 100MHz
• MW Filter: >30dB 660 – 1550kHz
• DAB Filter: >30dB 165 – 230MHz
DO NOT directly connect an RSP to the same antenna as your transmitter, or to an antenna in the near field of a transmitting antenna, as this is likely to result in irreversible damage to your RSP and invalidate your warranty.
