SureCall Fusion Professional 2.0 Specs
- Uplink Frequency Range (MHz): 663-698 / 698-716 / 776-787 / 824-849 / 1850-1915 / 1710-1780 / 2500-2570
- Downlink Frequency Range (MHz): 617-652 / 728-746 / 746-757 / 869-894 / 1930-1995 / 2110-2180 / 2620-2690
- Maximum Gain: 75 dB
- Supported Standards: 4G / LTE / 5G cellular standards
- Max Uplink Power: 26.0 dBm
- Input Impedance: 50Ω
- Max Downlink Power: 12 dBm
- AC Input: Input AC110V, 60 Hz; Output DC 12V
- Maximum Output Power: 1 Watt EIRP
- Cable: SC-400 (outdoor) / SC-240 (indoor)
- RF Connectors: N Female (outdoor) / N Female (indoor)
- Power Consumption: <15W
- Operation Temperature: -4º to +158º F
- Dimensions: 10 x 7 x 2 inches
- Weight: 5lbs
- Certifications: IC : 7784A-FUSIONPROCA

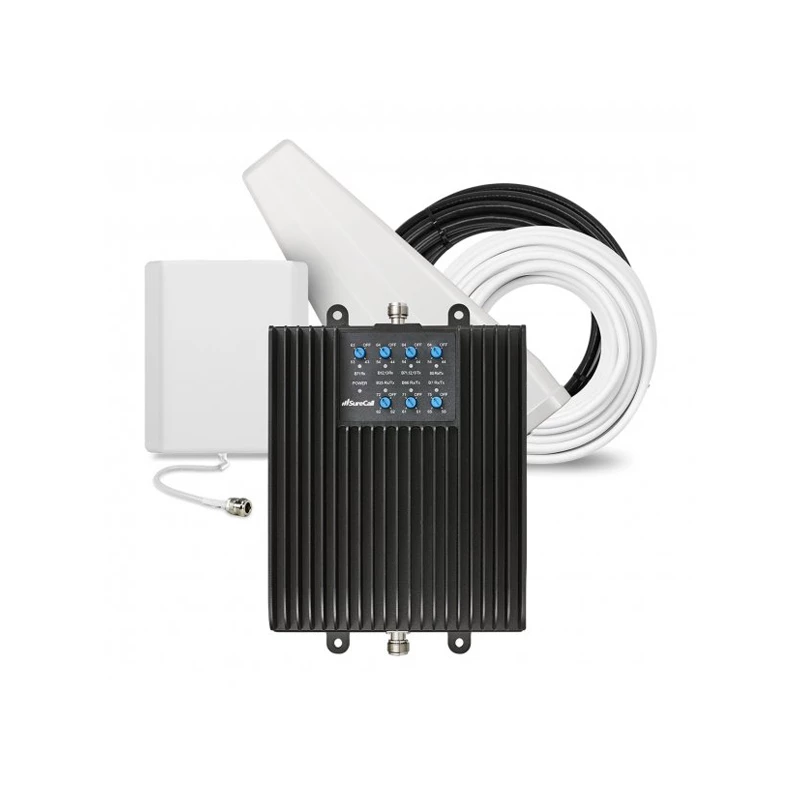

In the Box:
- Fusion Professional 2.0 amplifier
- 50 ft of low loss SC-400 coax cable
- 20 ft of low loss SC-240 coax cable
- Ultra-Wideband Outdoor Yagi antenna
- Ultra-Wideband Indoor Panel antenna
