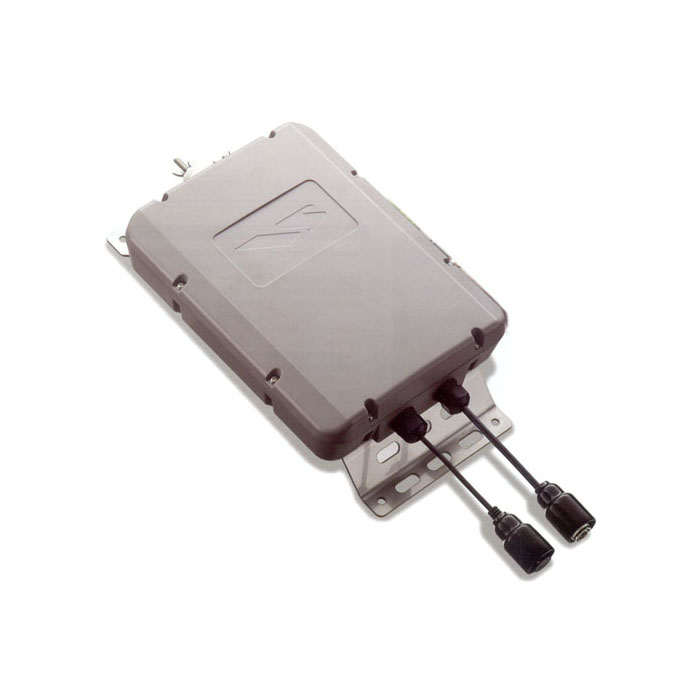

Yaesu FC-40 Random Wire Antenna Tuner

MPN: FC 40
MPN:

$410.00

Yaesu FC-40 Random Wire Antenna Tuner for FT-857, FT-897

In stock

SKU: 10702 Category: Tuners
Browse Another Category
  • New Arrivals
  • GPS Units
  • Marine
  • Tracking
  • Radios
    • 2-Way Radios
    • Amateur Radios
    • Avionic Radios
    • CB Radios
    • Commercial Radios
    • Marine Radios
    • Scanners
    • Shortwave Radios
    • Radio Accessories
      • Amateur Accessories
        • Adapters
        • Amplifiers
        • Cables
        • Connectors
        • Headsets & Speakers
        • Mounts & Brackets
        • Microphones
        • Power Supplies
        • Programming Software
        • Tuners
        • Various
      • Amateur Antennas
      • Amateur Books
      • CB Antennas
      • CB Accessories
    • Weather Radios
  • Metal Detecting
  • Outdoors
  • On Sale
  • Gift Certificates
  • Warranties
  • Discontinued
  • Description
  • Additional information

Random wire antenna tuner for FT-857, FT-897

It uses of the control circuitry built into the FT-857/897, which allows the operator to control and monitor automatic operation of the FC-40 mounted near the antenna feed point. For demanding applications, the FC-40 uses specially selected thermally stable components and is housed in a waterproof casing to reliably withstand severe climatic extremes. The FC-40 matches a wide variety of antennas to within a 2:1 SWR on any amateur band (160 through 6 meters) in less than 30 seconds. Transmitter power required for matching can be as little as 4 to 60 watts, and matching settings are automatically stored in memory for instant recall when the same frequency range is reselected later. Comes with plate and U bolts plus 16 foot control cable and 16 foot coaxial cable.

FC-40 Specifications:

Coverage: 1.8 to 54 MHz Amateur Bands (with 20+ meter end fed wire)
Coverage: 7 to 54 MHz Amateur Bands (with 2.5 meter mobile whip)
Power rating: 100 watts PEP (3 minutes maximum continuous TX)
Memories: 200 total
Tuning time: 1 to 8 seconds
Antenna matching impedance: 16.5 to 150 Ohms (SWR less than 3)
Tuning power: 4 to 60 watts or more
Power Supply: 13.8 VDC (derived from the transceiver)
Size: 7 x 9.4 x 2.1 inches (175x236x53 mm)
Weight: 2.6 Lbs (1.2 kg)

Weight6.34 lbs
Dimensions15.25 × 13.25 × 4.75 in
Brand

Yaesu

Manufacturer Part NumberFC 40
