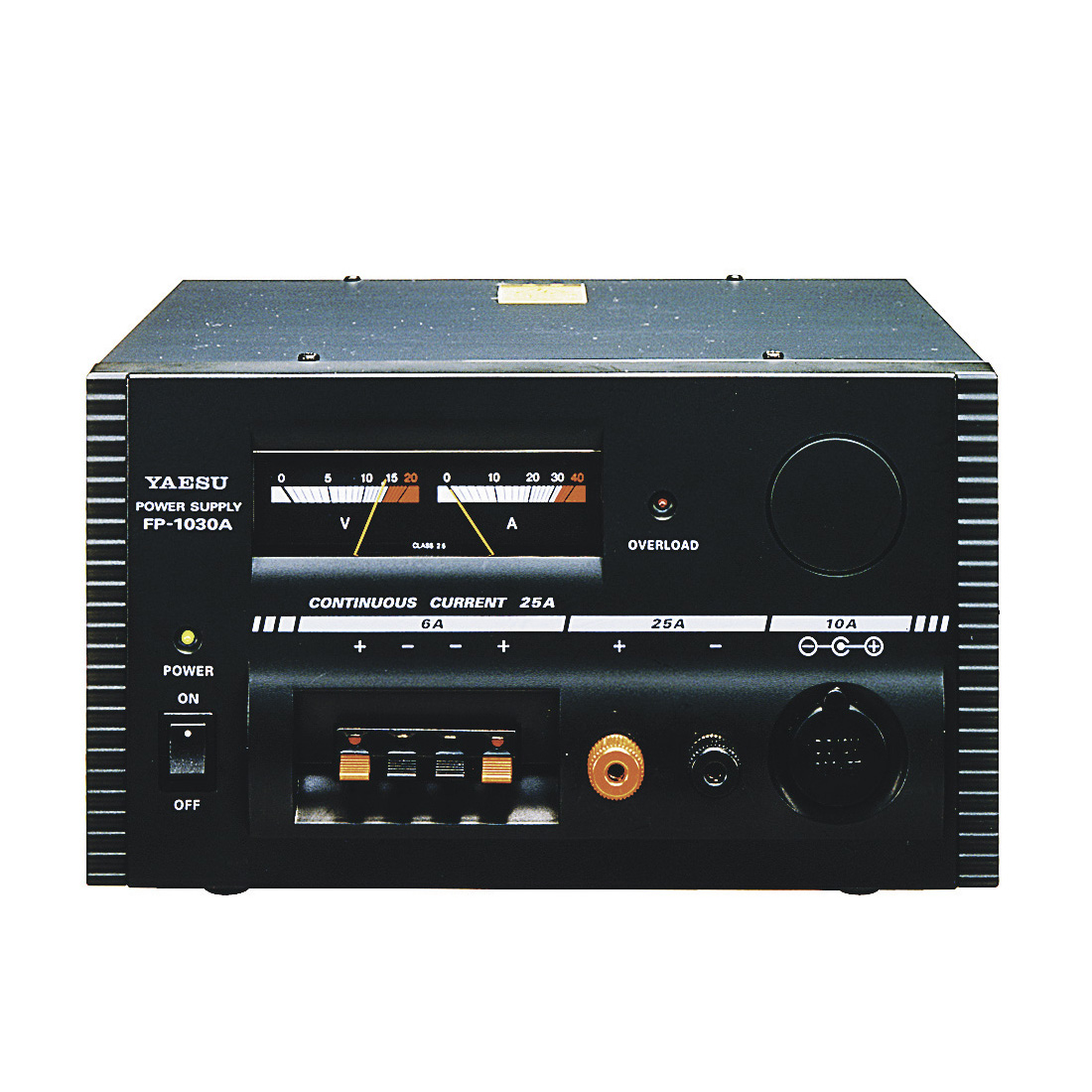

The Yaesu FP-1030A power supply provides 13.8 VDC at 25 amps continuous or 30 amps surge. Input is 120 VAC 60 Hz. Dual meters showing voltage and amperage are featured along with a RED LED for overload indication.
The front panel includes:
25 amp high power lugs, 10 amp cigarette lighter jack or 6 amps spring loaded terminals.
9.8 x 5.9 x 9.5 inches.
- A current fold-back circuit is utilized to prevent damage to the unit from excessive current drain.
- FP-1030A includes extensive filtering to provide high immunity from erratic operation which might be caused by Radio Frequency Interference (RFI).
- Beside the two pairs (6A) of snap-in DC connections and the (25A) screw-on DC output terminal, FP-1030A supplies feature a cigar-lighter/12V outlet-type DC output jack for radio equipment equipped with a matching cigar-lighter plug.
