ZeroFive-Antennas GP1040

10-40 Meter Multiband Groundplane Freestanding Vertical Antenna

Please note: Due to the size of this antenna, additional shipping charges will apply.

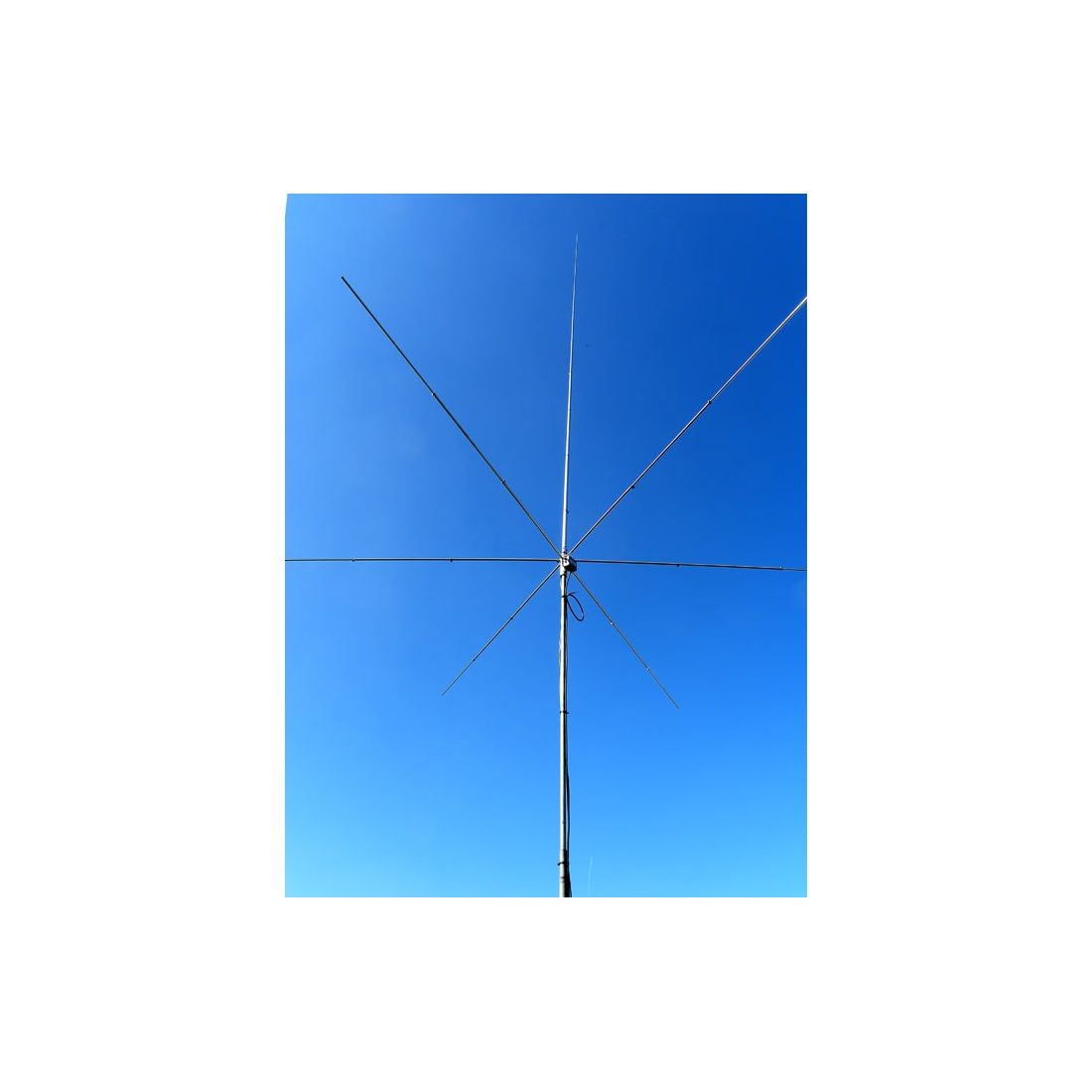

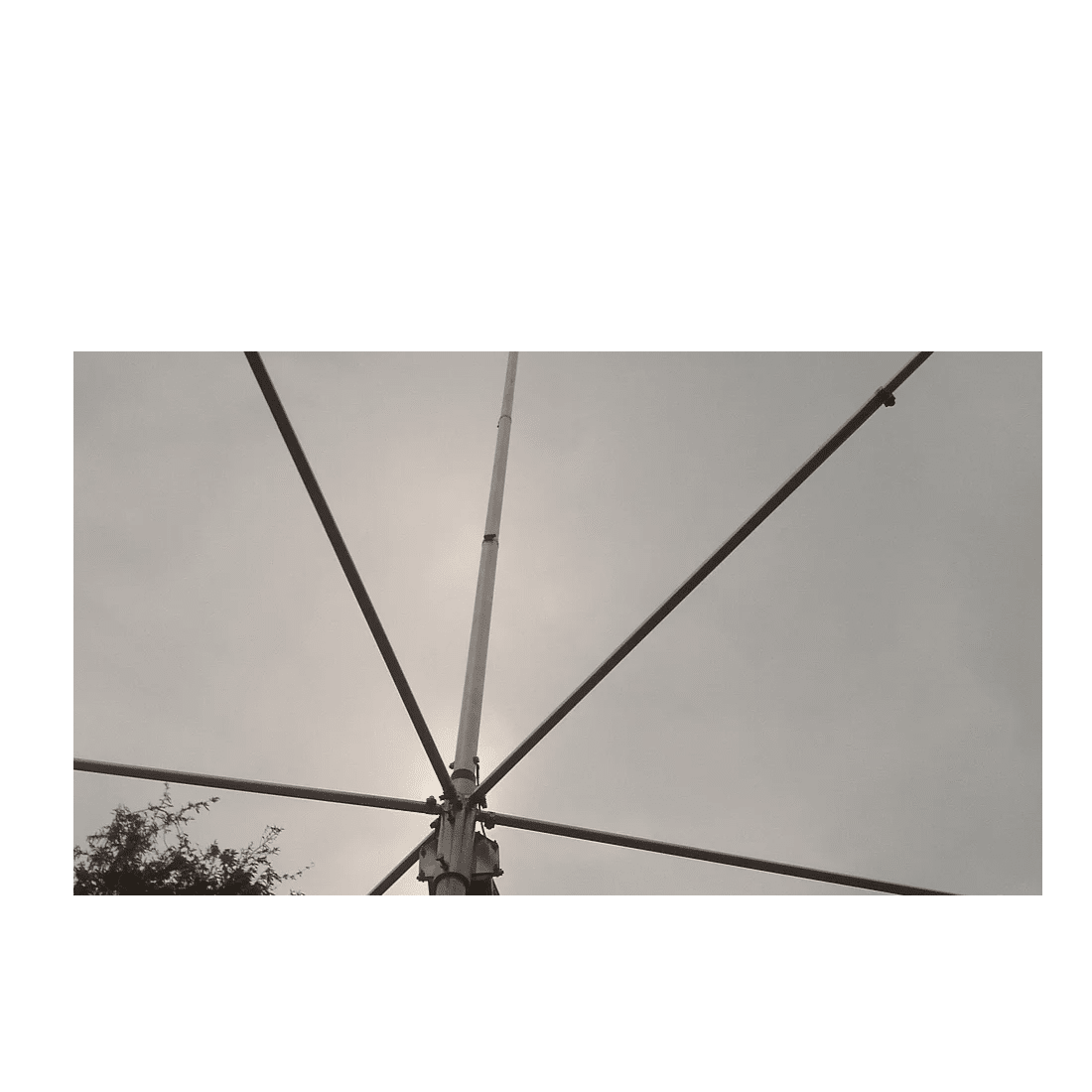

The 10-40 meter high performance groundplane vertical antenna is a rugged multiband vertical antenna. This vertical antenna has no lossy traps or coils to burn out. Super wide bandwidth means more time operating ,and less time stuck on a frequency your trap vertical is tuned for. Designed for hams that do not have room for ground radials. This vertical antenna has 6 ridged aluminum radials 100 inches long each and can be mounted at any height above 6 feet off the ground. The element and radials are made from T-832 Drawn aircraft aluminum tubing. The CNC machined base tube is made from 2 1/4 inch 1/4 wall T-6 extruded aluminum tubing. The mounting pegs for the radials are solid aluminum pressed into the base tube and then Tig welded to ensure a good electrical connection. The base insulator is Fully CNC machined Black Delrin for excellent insulation and power handling. Comes complete with 5KW matching transformer and mounting plate with leads. You can view the installation tips manual attached below. Bands of operation —10/12/15/17/20/30/40 meters with full bandwidth. No lossy traps, coils or stubs to burn out ,detune and fill up with water. SUPER WIDE BANDWIDTH– No more being stuck on a single frequency your trap vertical is tuned for.

GP1040 Specifications:

• Power handling: 4KW SSB/3KW Insulation — CNC machined solid 1 3/4 inch Delrin rod
• Accepts up to a 1 5/8 OD mast
• Overall height: 27 feet
• Radial length: 100 inches
• Number of radials: 6
• Weight: 20lbs
• Max Wind rating: 90 mph
• Recommended coax length: 100 Feet minimum with your wide range tuner or 75 feet with a roller inductor tuner
• SWR: Under 1.5 to 1 with customer supplied wide range tuner at the operating position
