ZeroFive-Antennas MBV33

33 Foot 10-80 Meter Multiband Foldover Freestanding Vertical 5KW Unun

Please note: Due to the size of this antenna, additional shipping charges will apply.

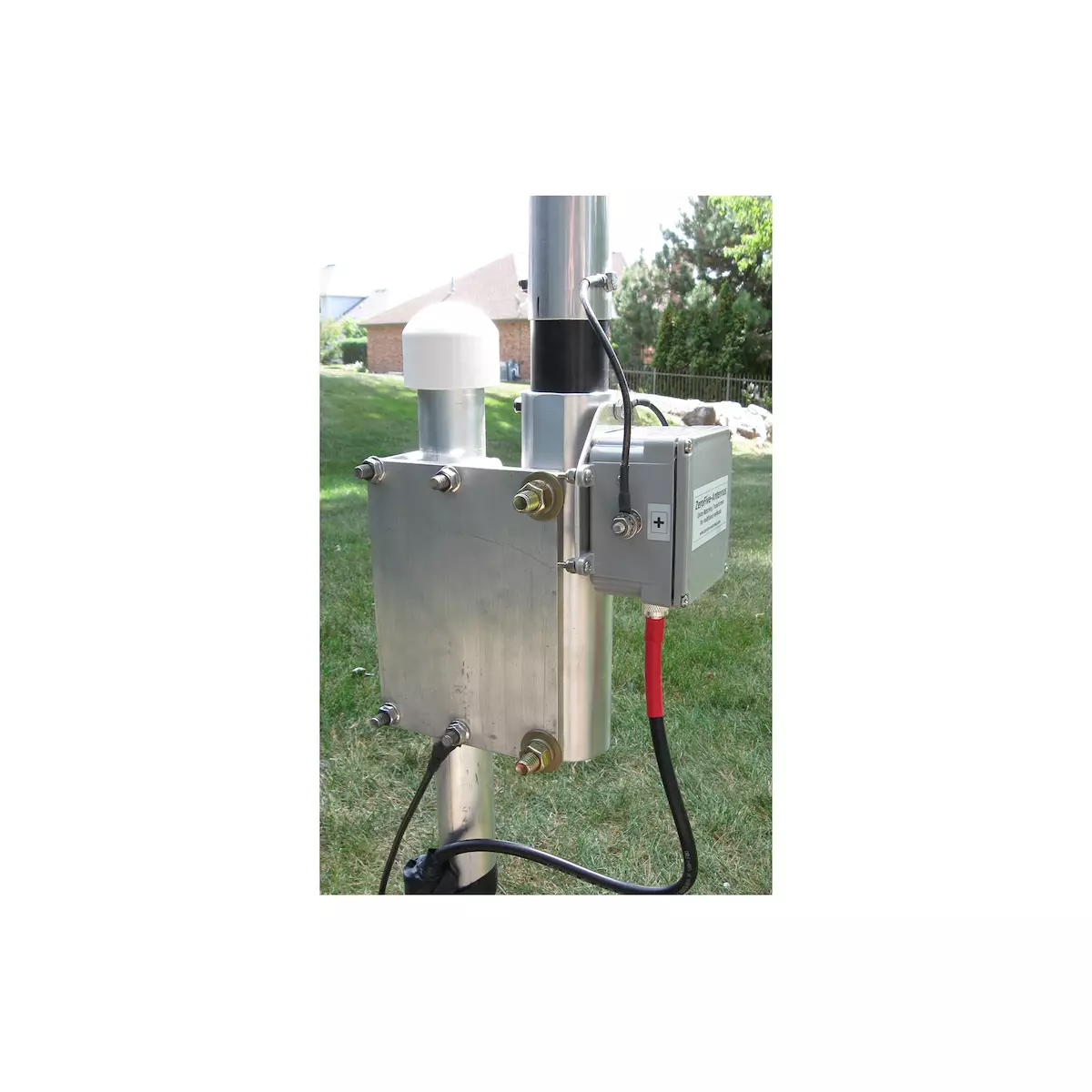

The 33 foot 10-80 meter Multi-Band Vertical antenna is a freestanding vertical element. This vertical antenna has no lossy traps or coils to burn up. Super wide bandwidth means more time operating ,and less time stuck on a frequency your trap vertical is tuned for. It is a non-loaded radiator made with 6063 T832 commercial drawn aluminum tubing. Big bottom section tapers at the top to 3/8 of inch for flexibility, strength and wide bandwidth. A custom CNC machined 1 3/4 INCH solid super heavy duty black Delrin base insulator for superior UV resistance and high power handling capability. Won’t dry up, crack, splinter or peel from UV exposure like other fiberglass insulators will. A precision CNC machined 2 1/4 inch 1/4 wall base tube and 3/8 thick foldover plate are included for easy one person raising/lowering no-bind tilt-over action. This package includes a 5kw 4 to 1 UNUN matching transformer. A minimum of 16 radials is suggested. This is a very heavy duty vertical that can be guyed or free standing. All multiband verticals include a transformer mounting plate and leads.

MBV33 Specifications:

• Overall height: 33 Feet
• Includes foldover mount
• Includes all clamps
• Includes our 5kw 4 to 1 unun transformer.
• Bands of operation: 10-80 Meters
• Power rating: 3KW ssb
• Wind rating: 92 MPH no ice
• SWR-1.5 And under with customer supplied tuner at the operating position
• Recommended coax length: 100 to 150 feet
