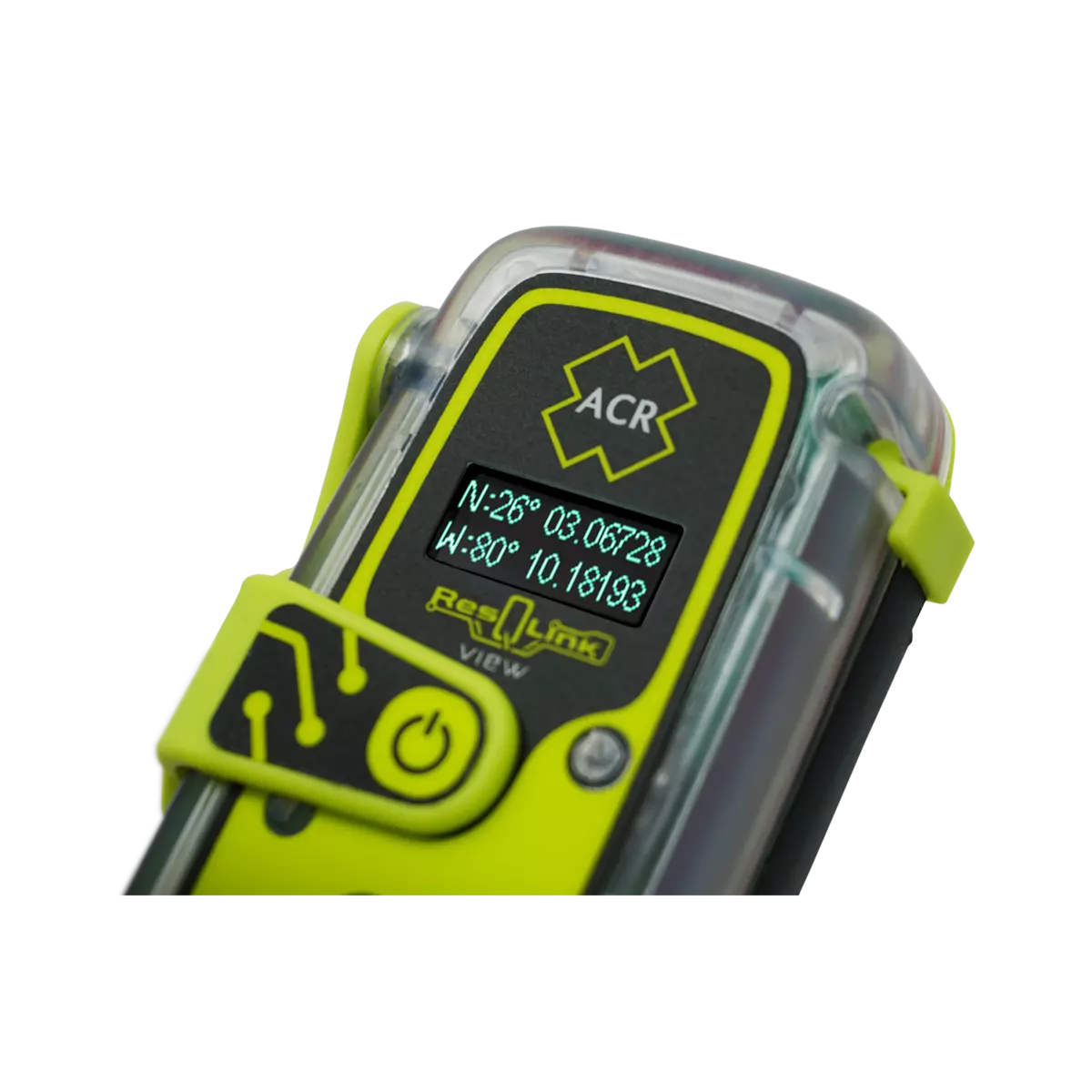

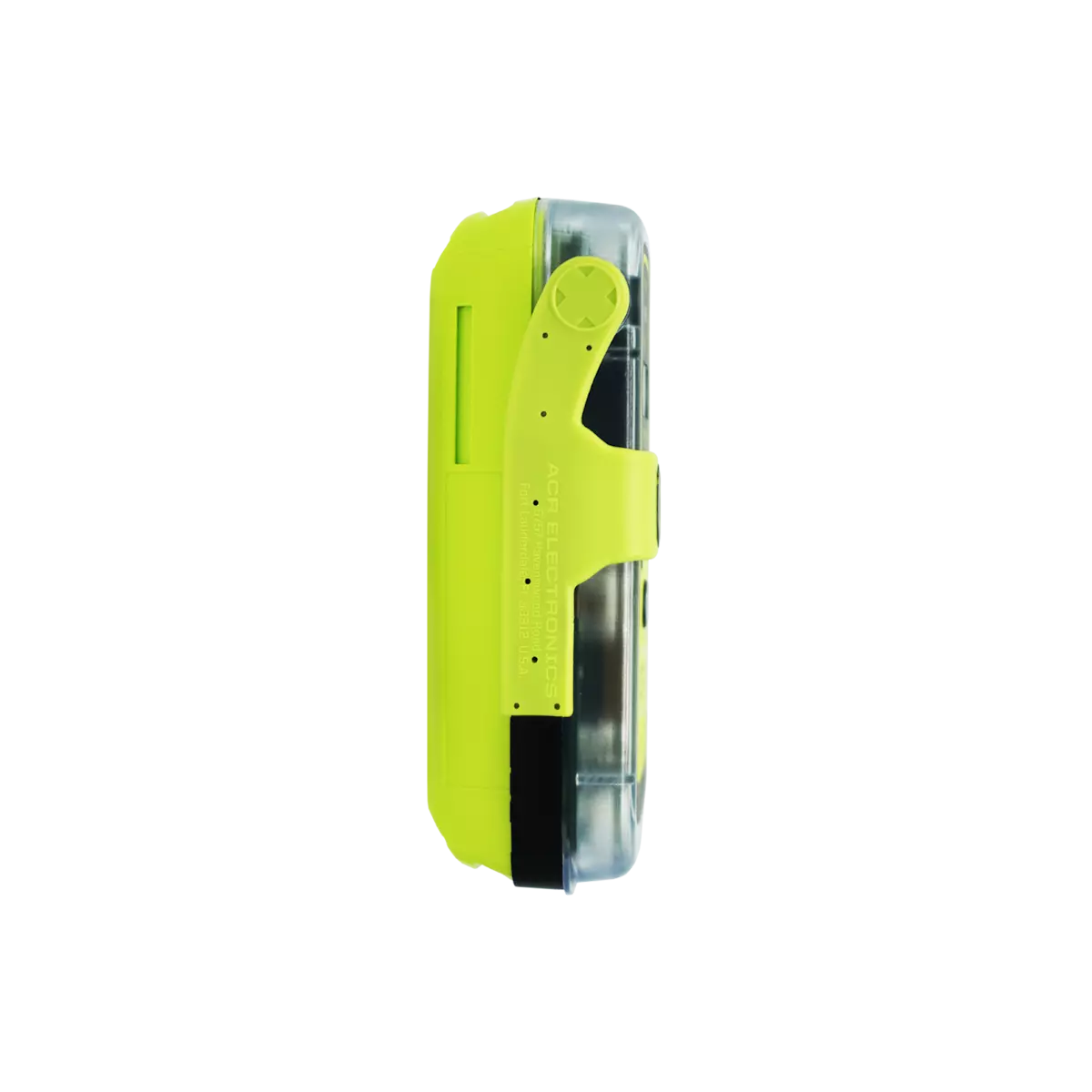

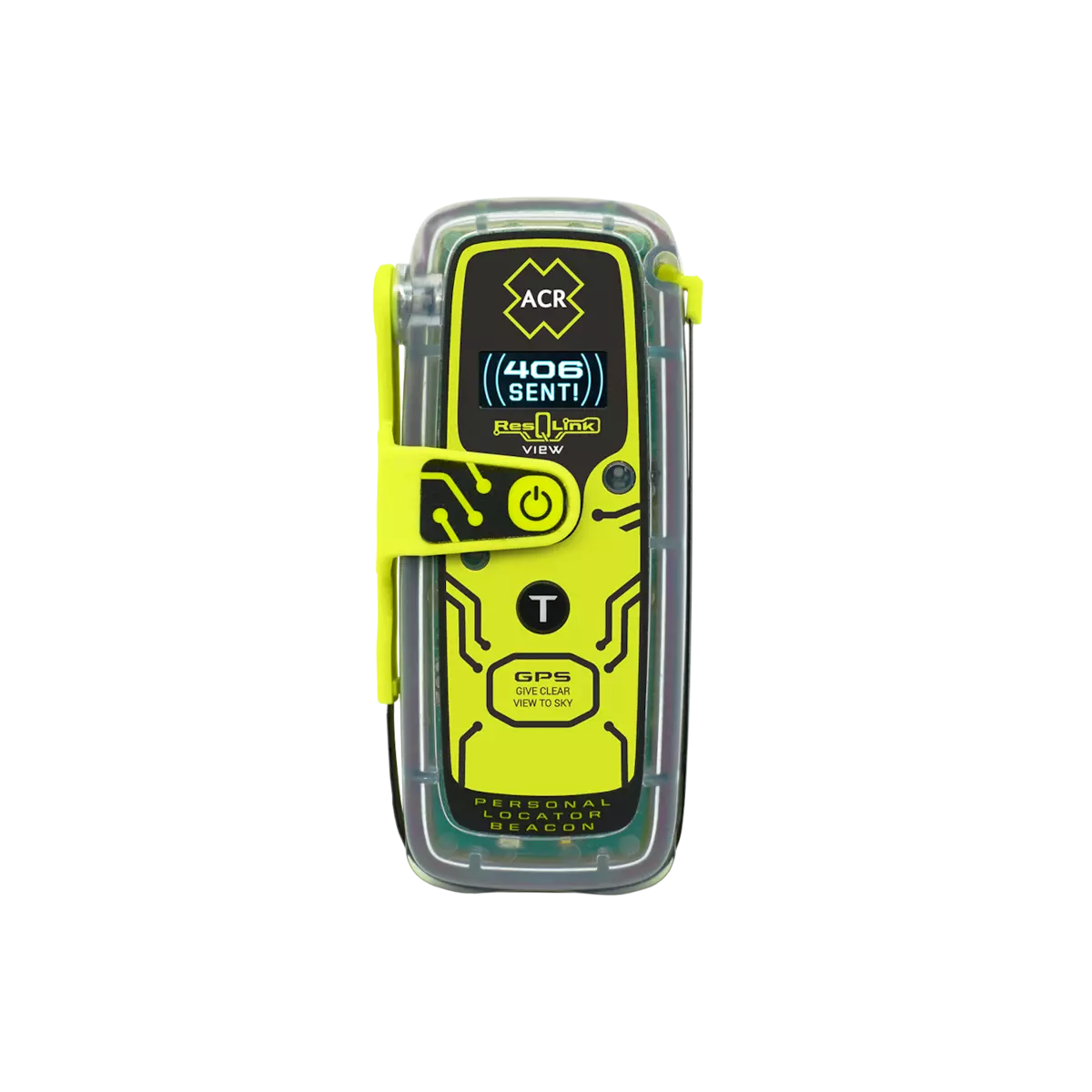

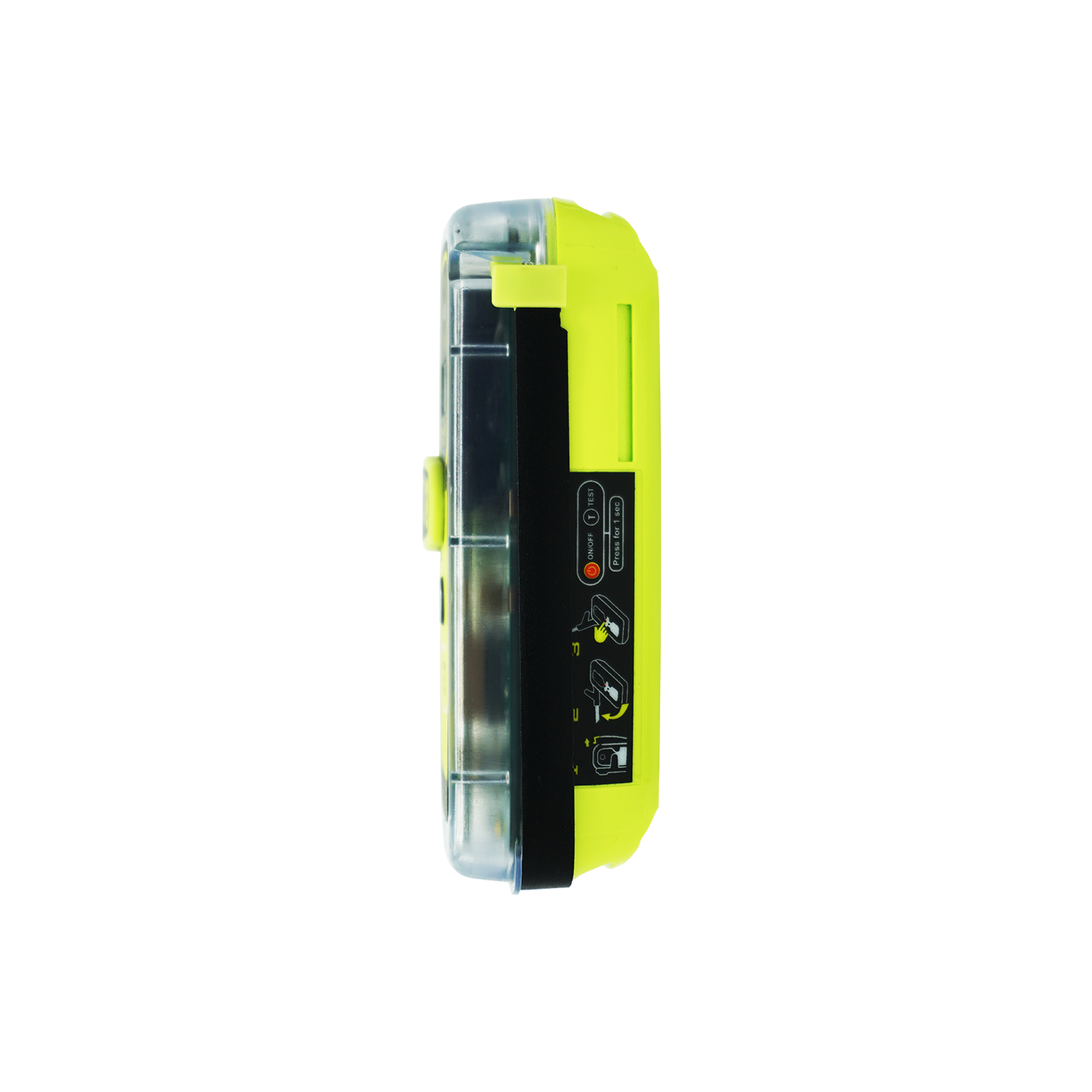

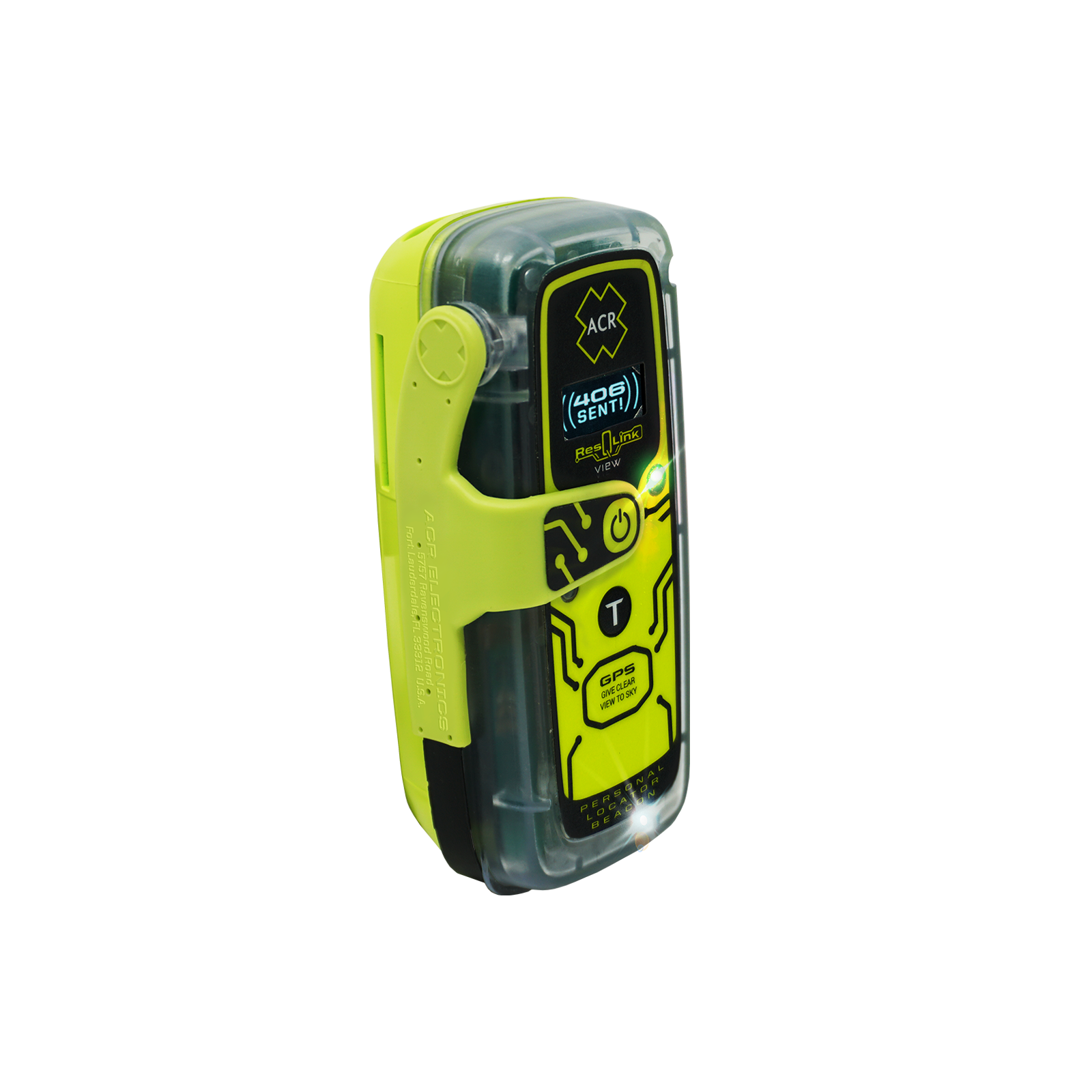

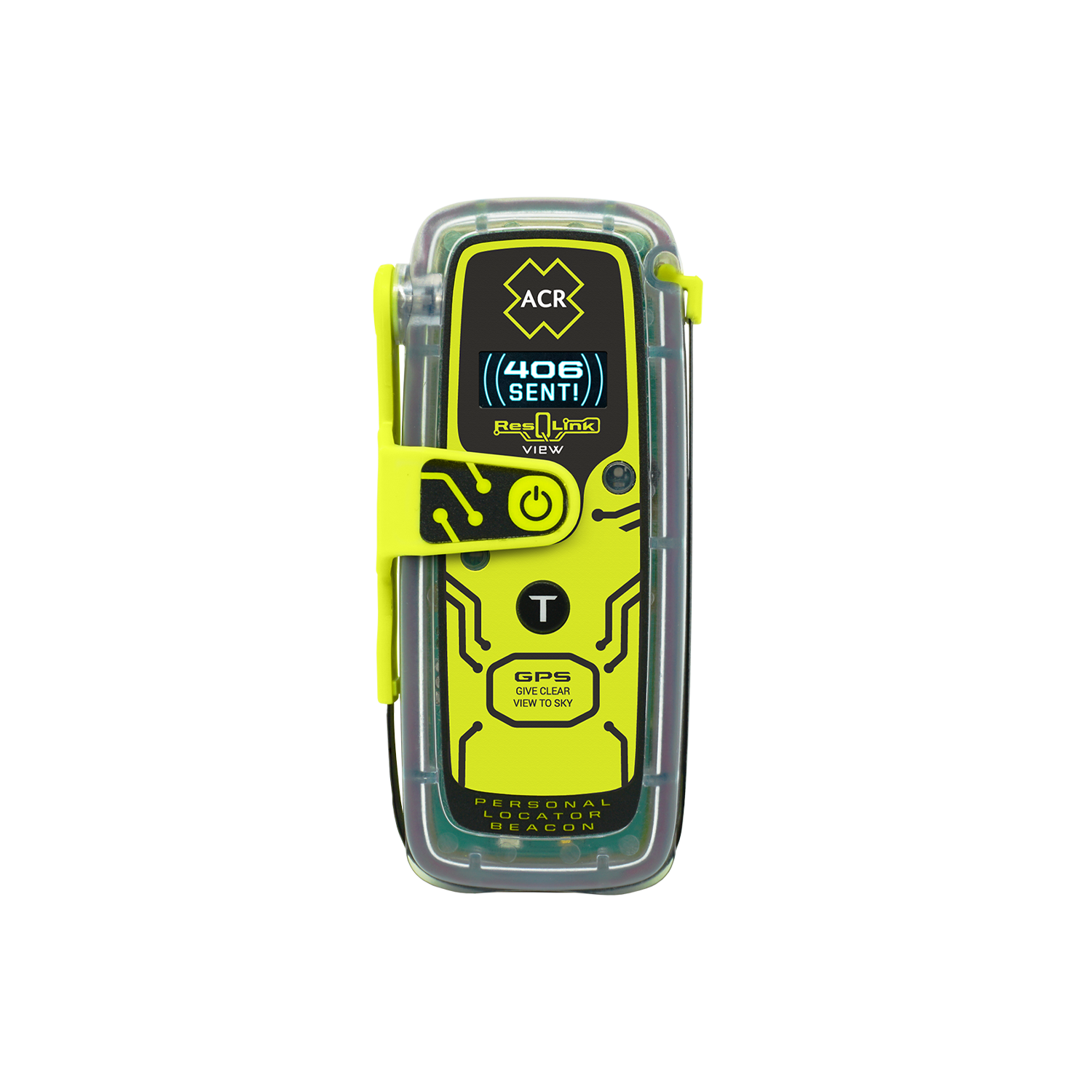

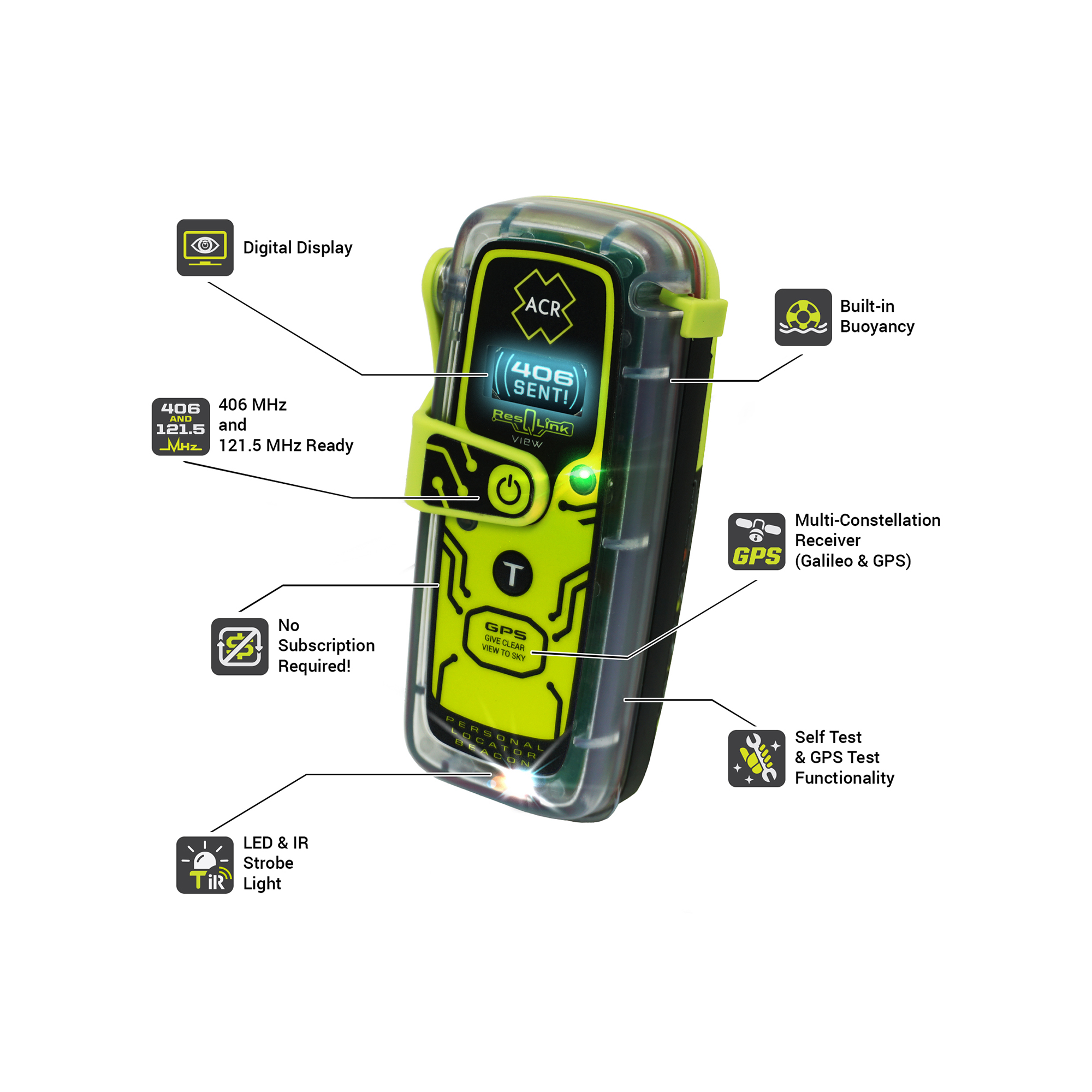

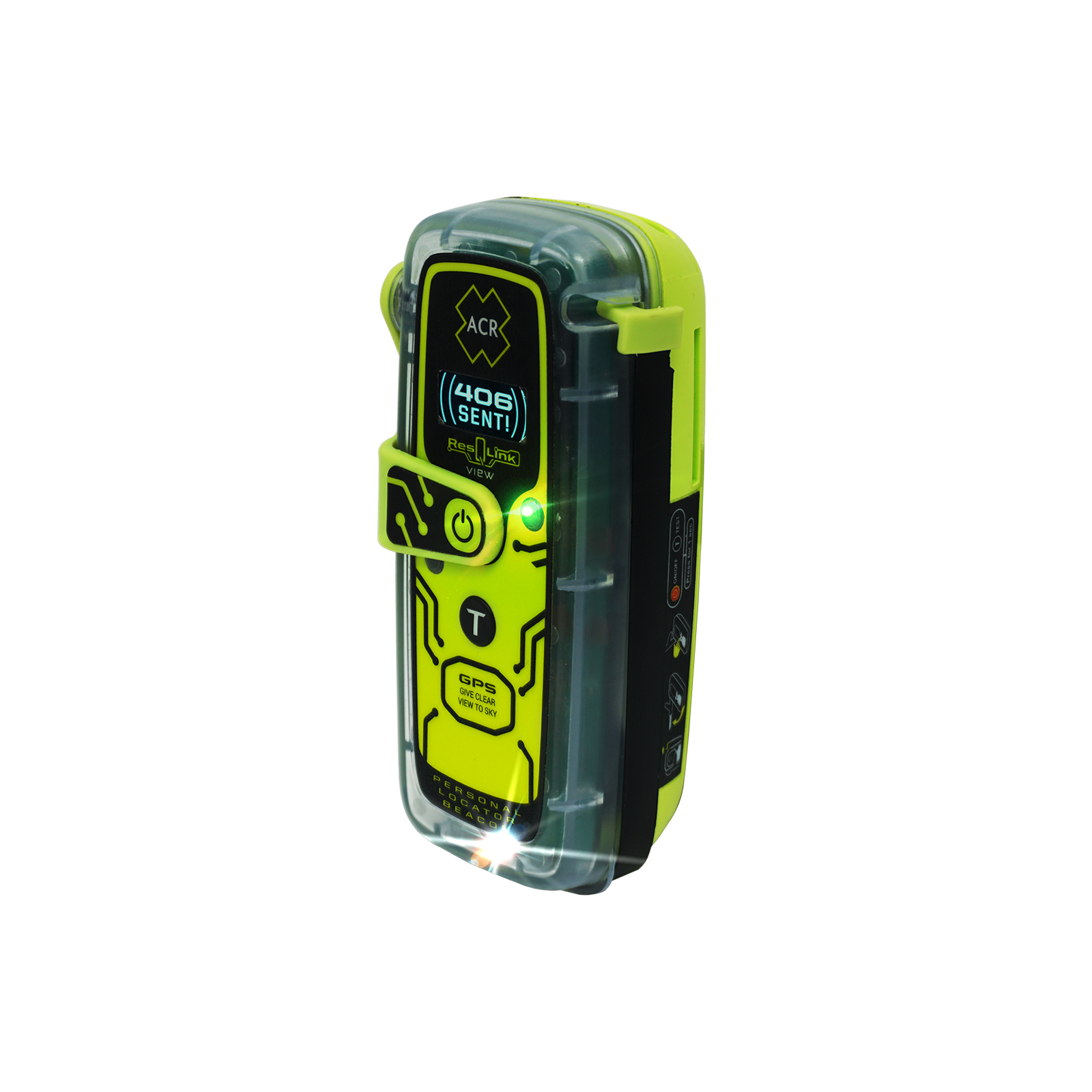

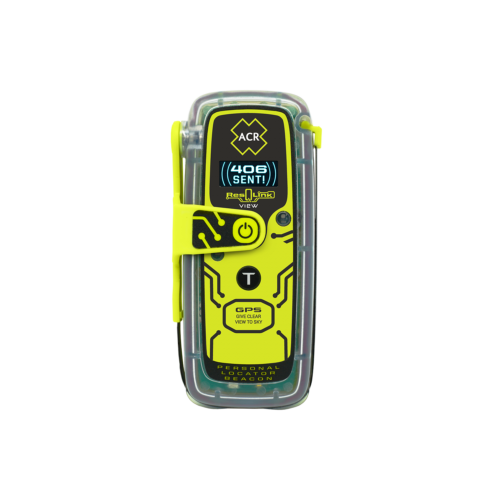

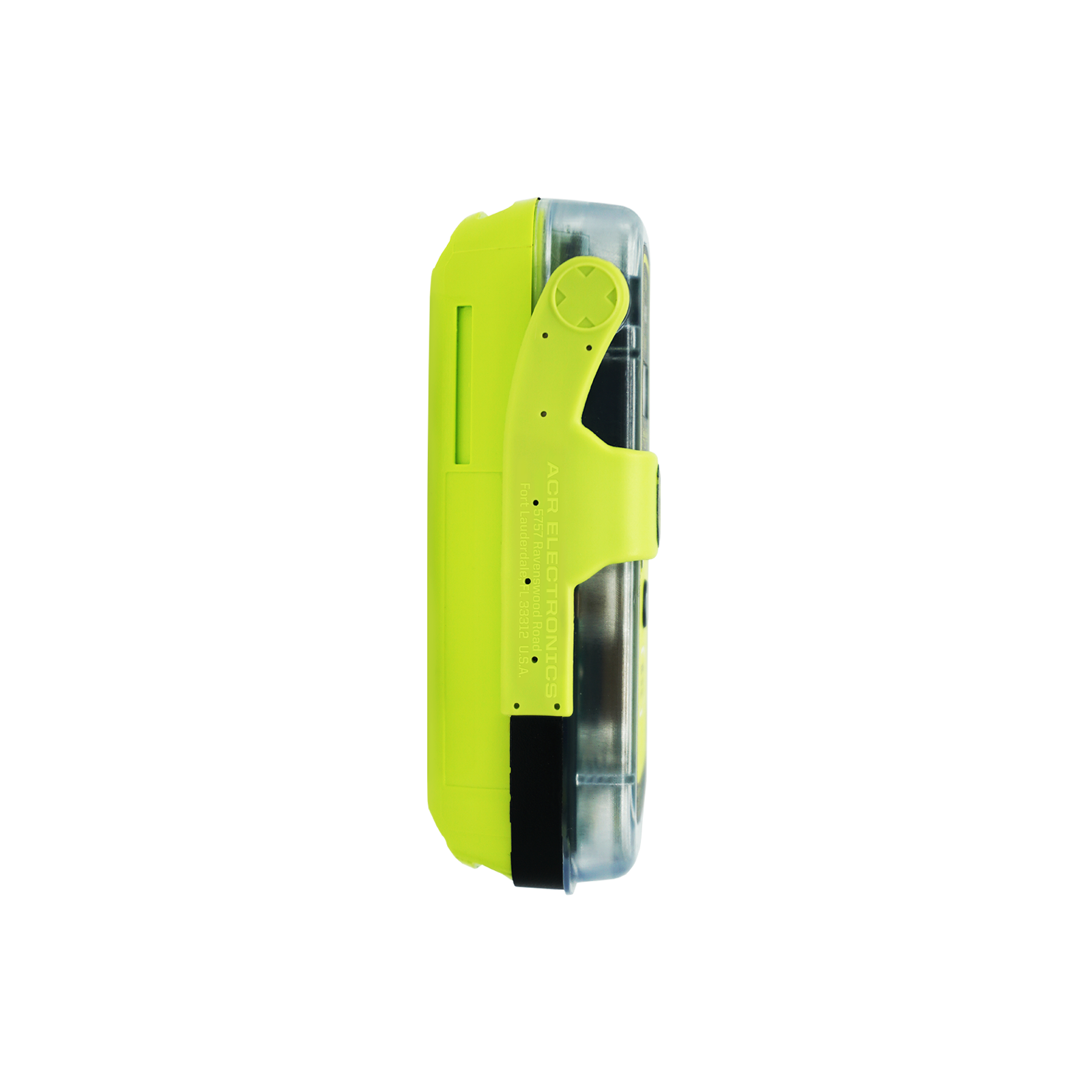

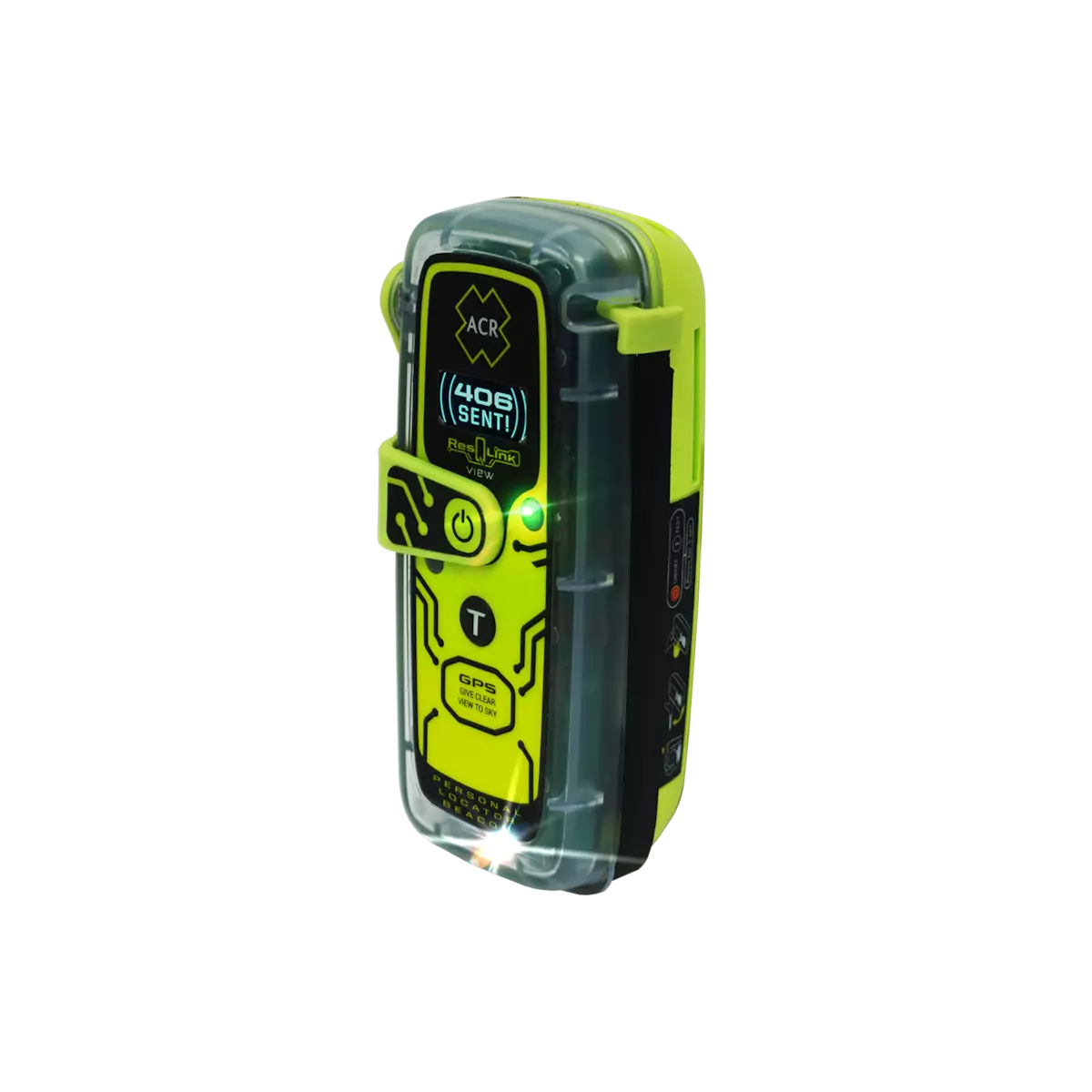

ACR ResQLink View Specifications
|
Size
|
4.52″ (L) x 2.03″ (W) x 1.49″ (D) |
|
Weight
|
0.33 lbs (148 g)
|
|
Battery, Class
|
Class 2 Operation (at -4°F / -20°C) (non-hazmat) lithium batteries (LiMnO2)
|
|
Battery, Replacement Interval
|
Replacement after five (5) years or after emergency use, whichever is first
|
|
Battery, Operational Life
|
28 Hours |
|
Battery, Storage
|
Storage: -22°F to +158°F (-30°C to +70°C) |
|
Buoyant*
|
Yes (Category 1)
|
|
Color
|
ACR-treuse™ (high visibility yellow)
|
|
Activation
|
Manual
|
|
Operation
|

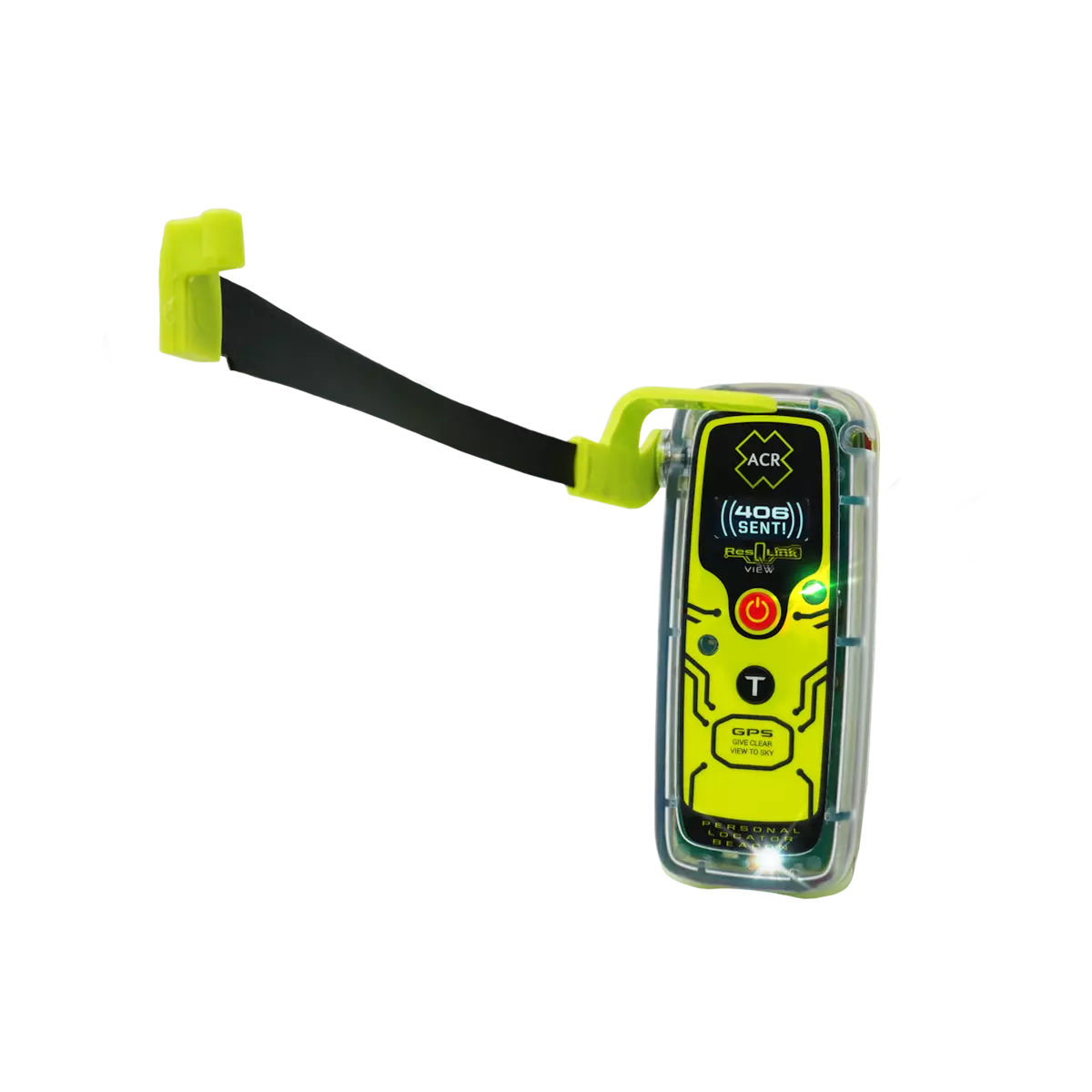

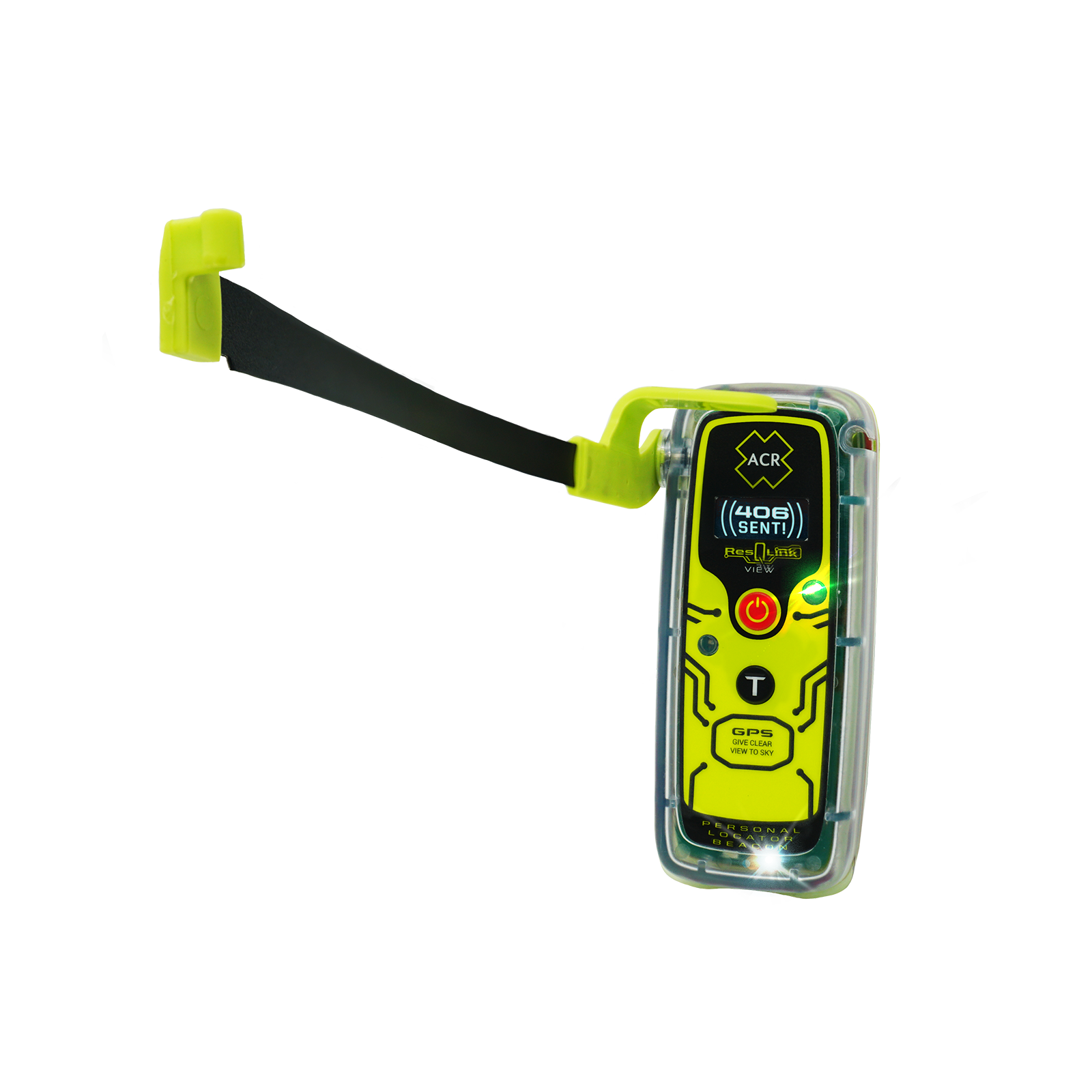

Deploy antenna, press on button, and give clear view of sky
|
|
GPS
|

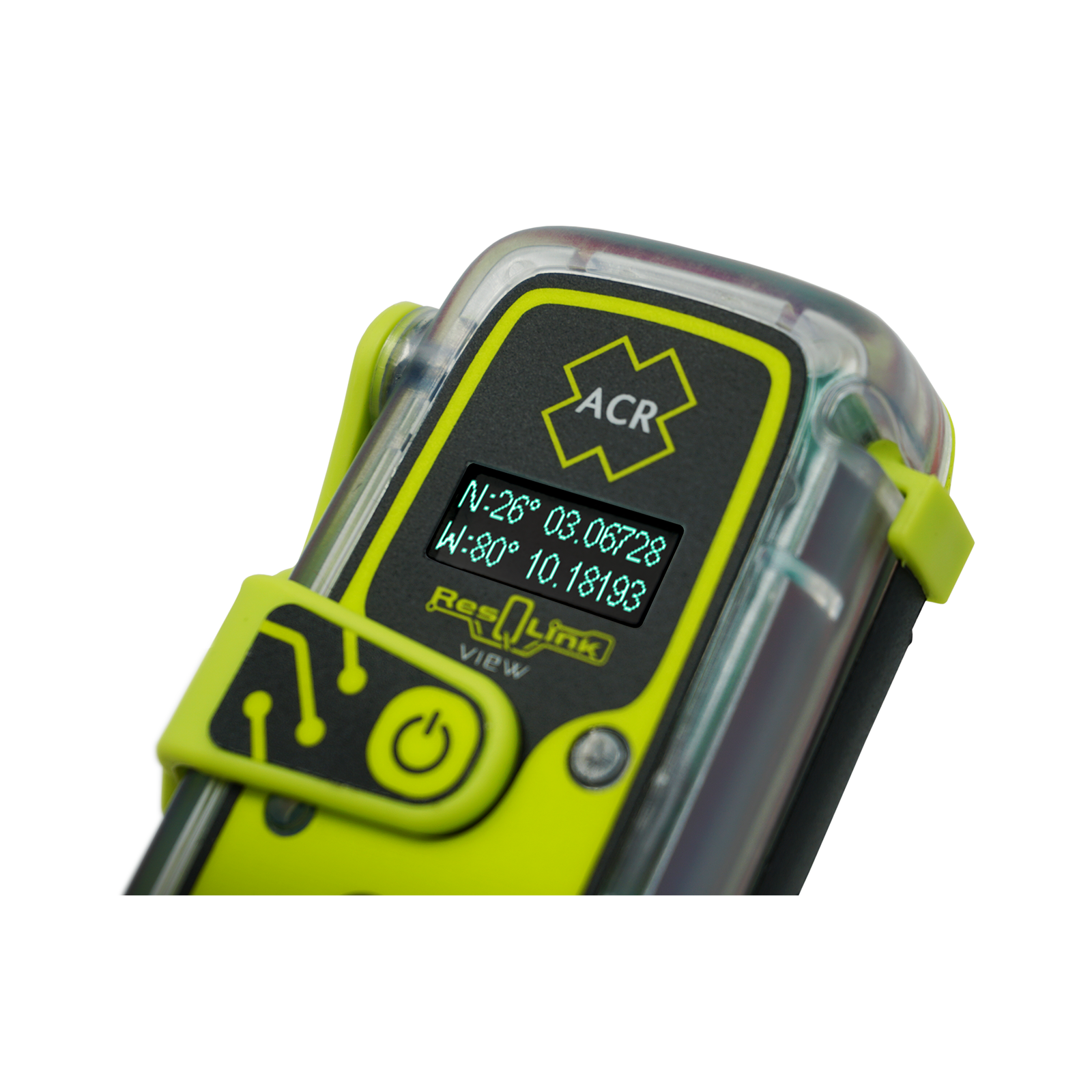

Multi-Constellation Receiver (GPS & Galileo GNSS)
|
|
Waterproof
|
16.40 ft (5 m) @ 1 hr., 33 ft (10 m) @ 10 min.
|
|
Approvals
|
Cospas-Sarsat, FCC
|
|
Limited Warranty
|
5 years
|
ACR units are life saving devices. They are held to the highest standard and ACR must follow strict regulations. All faulty ACR units must be returned to the manufacturer. If you are getting a red light instead of all greens, your unit is faulty. Please contact us for ACR’s return procedure. If you need a replacement unit right away you have to purchase a new unit. All units need to be inspected and resolved at ACR’s discretion. If ACR deems the original unit faulty, you may receive a refund, a replacement unit or the unit will be repaired. If the ACR unit is not deemed faulty, it will be returned to you and ACR will charge for shipping and an inspection fee.
