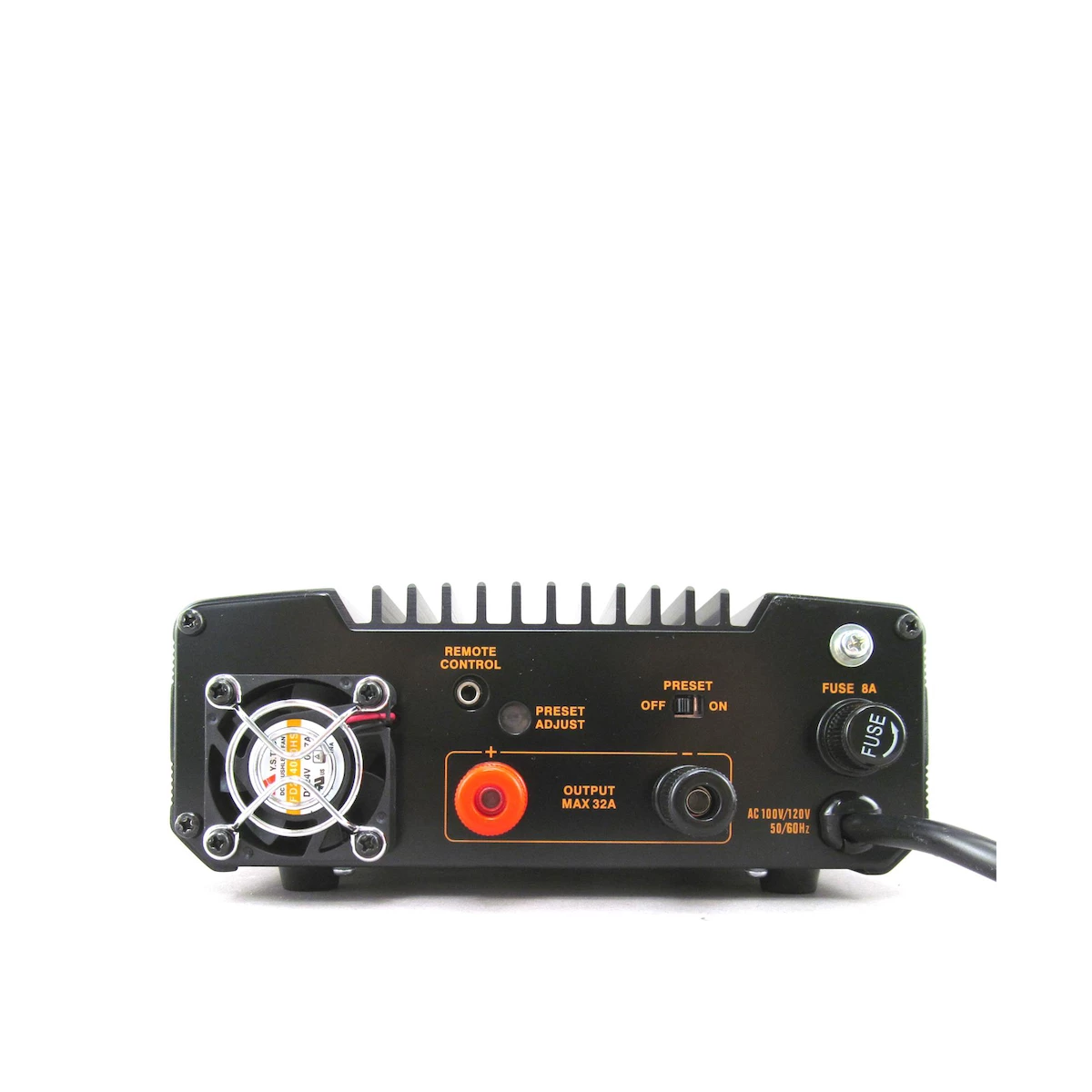

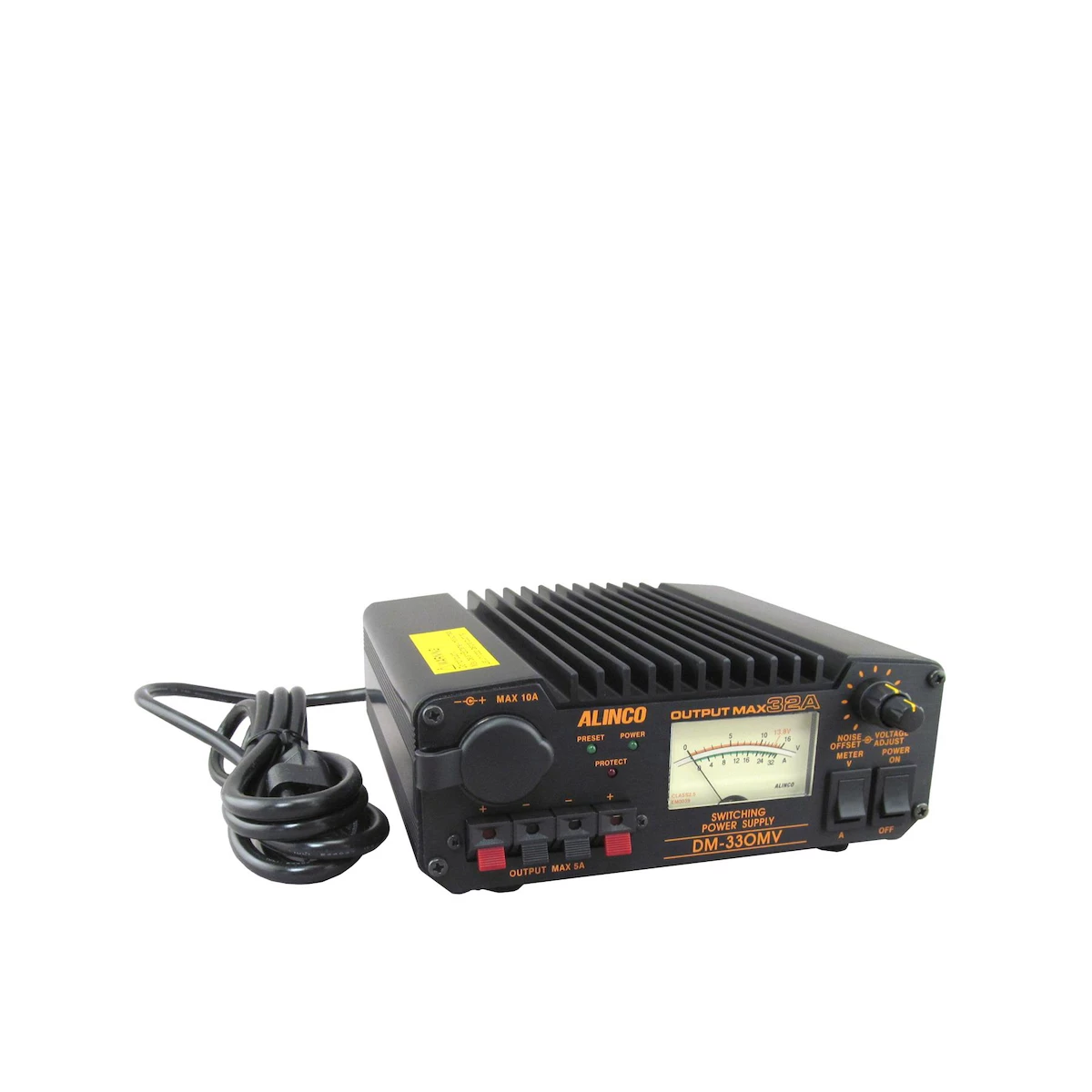

Alinco DM-330MVT Switching Power Supply

MPN: DM-330MVT
MPN:

$300.00

In stock

SKU: 12010 Category: Power Supplies
Browse Another Category
  • New Arrivals
  • Automotive GPS
  • Aviation GPS
  • Fitness & Wearables
  • GNSS & GIS
  • GPS Accessories
  • GPS/OEM Sensors & Receivers
  • Handhelds
  • Marine
  • Tracking
  • Radios
    • 2-Way Radios
    • Amateur Radios
    • Avionic Radios
    • CB Radios
    • Commercial Radios
    • Marine Radios
    • Scanners
    • Shortwave Radios
    • Radio Accessories
      • Amateur Accessories
        • Adapters
        • Amplifiers
        • Cables
        • Connectors
        • Headsets & Speakers
        • Mounts & Brackets
        • Microphones
        • Power Supplies
        • Programming Software
        • Tuners
        • Various
      • Amateur Antennas
      • Amateur Books
      • CB Antennas
      • CB Accessories
    • Weather Radios
  • Metal Detecting
  • Outdoors
  • On Sale
  • Gift Certificates
  • Warranties
  • Discontinued
  • Description
  • Additional information
  • Specifications
  • Product Guides & Documentation

Alinco DM-330MVT Features:

  • The combination of high-quality space-saving components and high efficiency switching technology made it possible for the DM-330MV to be super-compact and easy to carry for portable operations and still generate a high continuous output !
  • Alinco’s communication technology has created a patent-pending Noise-Offset circuit to eliminate the pulse-noise of the switching circuit for the customer who demands more.
  • Safety protections are also very important. The DM-330MV comes with short circuit protection, a current-limiting system and extreme temperature protection.
  • The programmable pre-set voltage function makes the DM-330MV even easier to use. Just store the most frequently used voltage in the memory, and it is constantly ready to go.
  • Vast output terminal convenience is just one more benefit of the DM-330MV ! A cigar-plug socket (Max 10A), a set of Max current terminals, and 2 sets of snap-in terminals (Max 5A) are conveniently laid-out and offer numerous variations for its operation.
  • A big, highly visible, back-lit Amp/V meter displays the status of the operation for added convenience.
Weight 4.97 lbs
Dimensions 10 × 7.5 × 3 in
Brand

Alinco

Manufacturer Part Number DM-330MVT

Specifications

Alinco DM-330VT Specifications:

  • Input voltage: AC120VAC (MVT)
  • Output voltage : 5 to 15VDC variable
  • Output voltage variation: less than 2%
  • Protection: short-circuit, Automatic current limiting over 32A(MVT), 30A(MVE), over-temperature
  • Output current: MVT 32A(max), 30A(continuous) / MVE 30A(max), 25A(continuous)
  • Ripple: less than 15mVp-p at rated load
  • Fuse: 8A (MVT) / 4A (MVE)
  • Meter: single volt/current meter, back-lit
  • Size: MVT 175(w) x 67(h) x 165(d) mm / MVE 190(w) x 69(h) x 181(d) mm
  • Weight: MVT approx. 2 Kg / MVE approx. 2.3Kg

Product Guides & Documentation

Alinco DM-330MVT Manual
