These 2 Meter FM beam antennas include Hy-Gains exclusive BetaMatch to provide exceptional Front-to-Back ratio and maximum obtainable gains. The VB-25FM gives you a wide choice of 2 Meter Beam performance from which to choose. Accepts up to 2 inch mast.

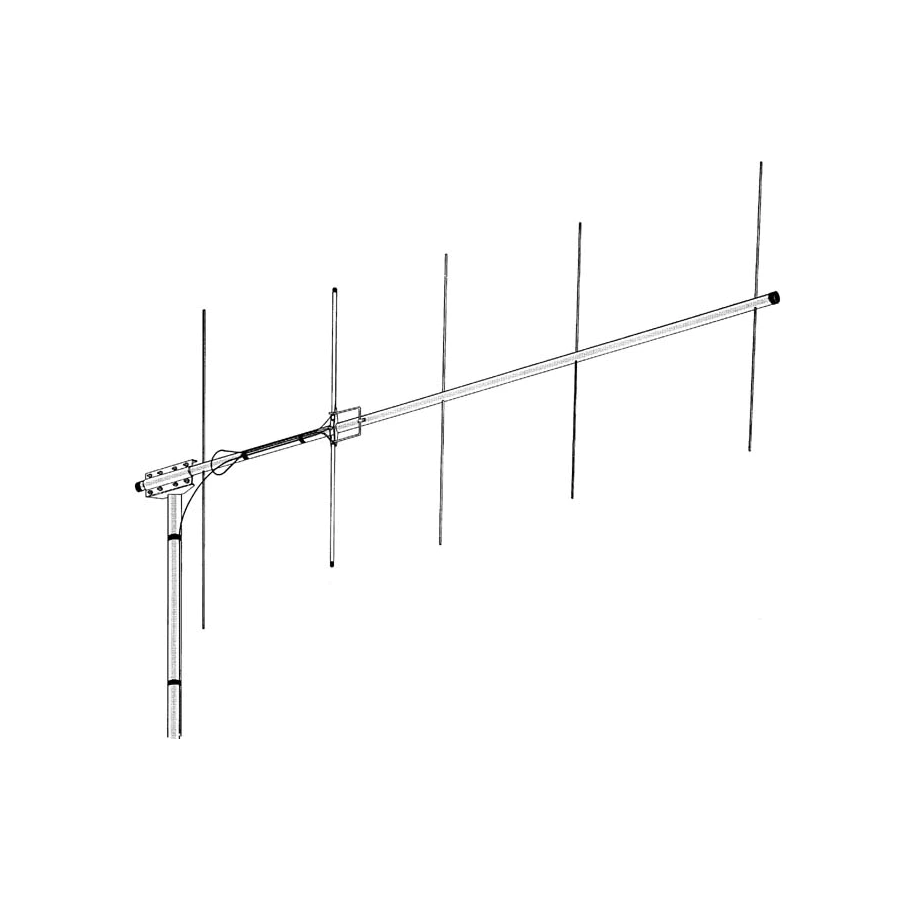

This antenna is a 5-element, 2-meter beam optimum spaced on a 75″ boom. It features high forward gain and an excellent front-to-back ratio. The antenna is end mounted giving it the advantage of no mast decoupling and a broad frequency response. This antenna now uses stainless steel hardware in most locations except for the U-bolts. Also, this antenna now features a NEW boom-to-mast bracket that fits up to a mast diameter of 2 1/16 inches.
SWR and Feedline
The 25FM antenna has an input impedance of 200 ohms. The supplied balun matches the input to 50 ohms. If you are using transmission line with a characteristic impedance other than 50 ohms or 200 ohms, a matching device must be made. Refer to any current Amateur Handbook for information on constructing a matching device.
