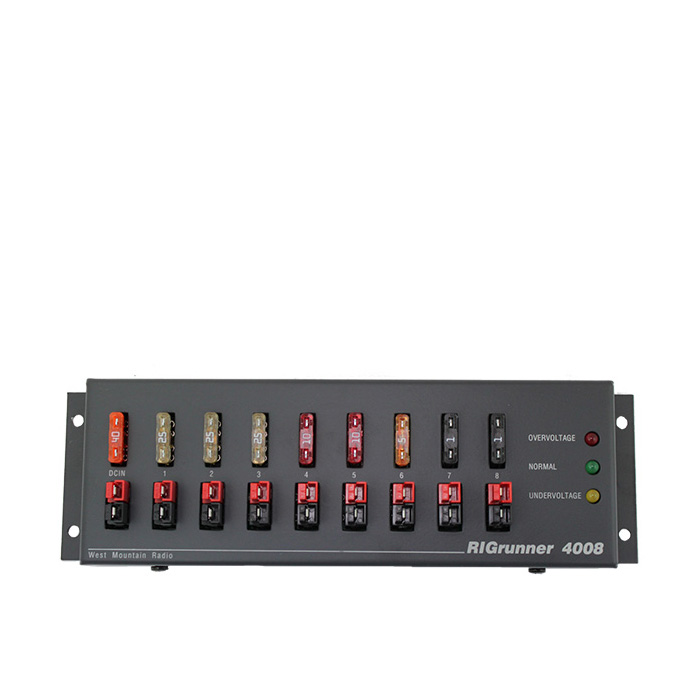

RIGrunner 4008

MPN: 58307-1034

$175.00

Out of Stock (On Order)

SKU: 7498 Categories: Amateur Accessories, Power Supplies

Features

RIGrunner is the most convenient and safest way to connect all of your 12 volt equipment to a power source. It uses the excellent Anderson Powerpole connectors, standardizing all of your 12 VDC connections. This RIGrunner is available with top mounted Powerpole® connectors.

40 amp 12 VDC continuous duty with 8 outlets
Precision voltage monitoring with visual/audible alarm for over and under voltage

Construction

Built in USA to IPC-610 commercial manufacturing standards by an ISO9002 facility.
Printed circuit board .062 FR4 material, extra heavy 3oz. copper, with greater than 1″ wide high current traces.
Double sided, plated through holes, solder mask over bare copper, silk screened commercial grade printed circuit board.
Enclosure: .062 aluminum, with attractive and extremely durable powder coat painting and clear silk screen labels.
Power connectors: exclusively Anderson Power Products® Powerpole®.
Connectors are arranged according to the ARES/RACES standard (see our links).
Fuses installed are standard ATC/ATO automotive fuses available in 10 values from 1 to 40 Amps.
Stainless steel hardware with PEM™ threaded mounting standoffs.

Manufacturer Part Number	58307-1034

Specifications

Specifications
Overall Dimensions (maximum, w/o cables)	1.4″ H x 9″ W x 3.0″ D
Weight	11 1/4 oz.
Maximum total current	40 amps
Maximum single individual outlet current	40 amps (fuse protected)
ICAS current rating (fuse limited)	37 amps
Precision comparator window points.	11.5,15.0 Volts
Metering Accuracy	better than 2% @ 25 deg.C.
Audible alert SPL output	~ 60dB SPL @ 1 meter
Maximum voltage (meter circuit)	32 volts
Reverse polarity protection (meter circuit)	Yes
